H870xW295xD570 Under Counter Wine Cooler
WRWC30SS

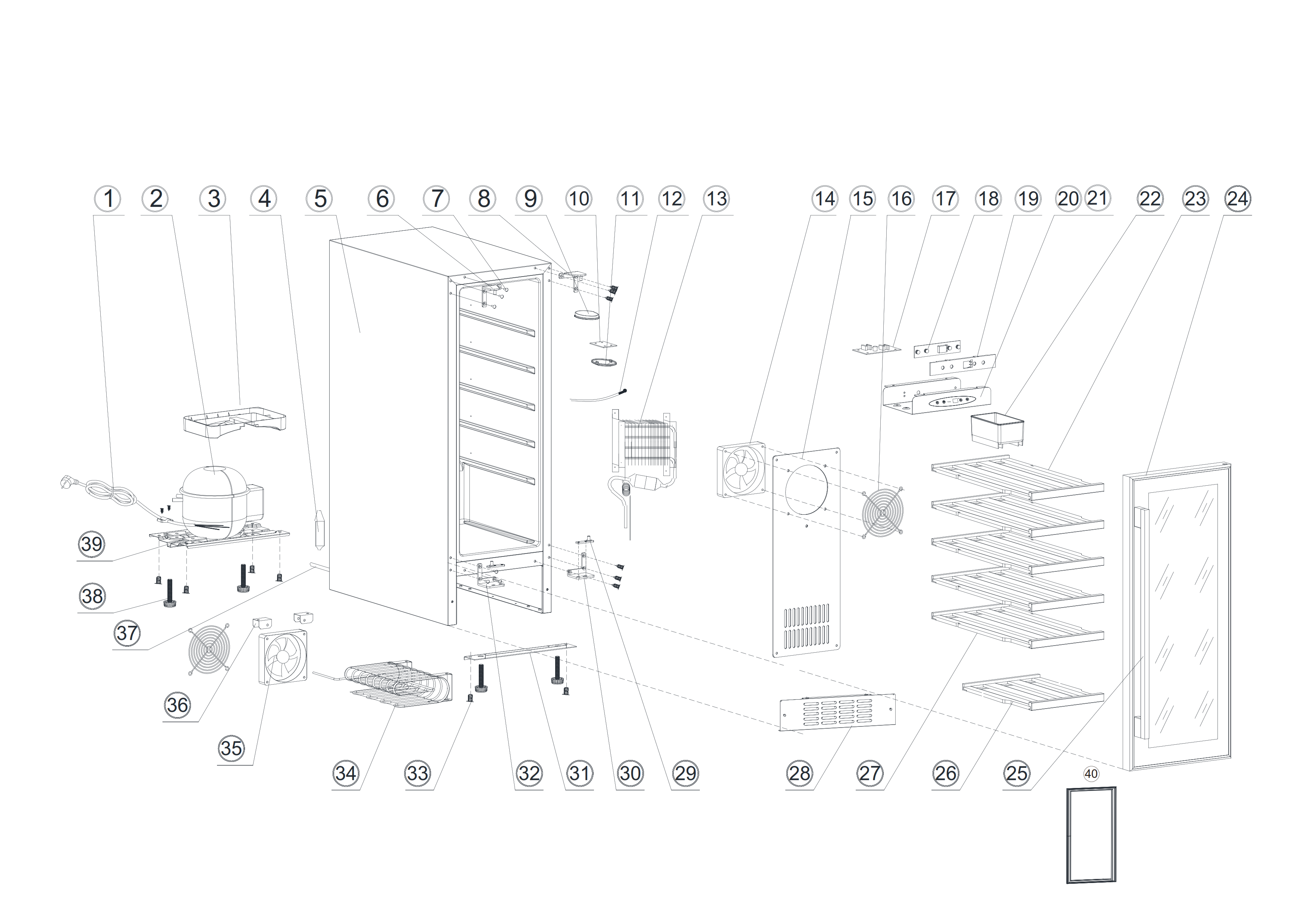

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.05.0838
POWER SUPPLY CORD | In Stock | 10.99 | |
| 2 | 3.02.06.0024
COMPRESSOR | Low Stock | 149.99 | |
| 3 | 3.02.01.0230
WATER DRIP TRAY | Low Stock | 13.99 | |
| 4 | 3.02.06.0103
DRY FILTER | In Stock | 20.99 | |
| 5 | 2.02.01.0005
CABINET | Not Available | ||
| 6 | 3.02.02.0104
LEFT UPPER HINGE | Low Stock | 6.99 | |
| 7 | 3.02.01.0216
DECORATION PLUG | Not Available | ||
| 8 | 3.02.02.0101
RIGHT UPPER HINGE | In Stock | 6.99 | |
| 9 | 3.01.01.0050
LIGHT BASE | Not Available | ||
| 10 | 3.01.05.0072
LED LIGHT | In Stock | 12.99 | |
| 11 | 3.01.01.0048
LIGHT COVER | In Stock | 9.99 | |
| 12 | 3.02.05.0100
AIR THERMISTOR | In Stock | 10.99 | |
| 13 | 3.02.06.0296
EVAPORATOR | Low Stock | 68.99 | |
| 14 | 3.02.05.0179
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| 15 | 3.02.08.0001
AIR DUCT | Not Available | ||
| 16 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 17 | 3.02.05.0382
POWER PCB | Not Available | ||
| 18 | 3.02.05.0368
CONTROL PCB | In Stock | 40.99 | |
| 19 | 3.02.01.0236
PCB SUPPORTER | In Stock | 6.99 | |
| 20 | 3.02.08.0125
ELECTRICAL BOX | Low Stock | 13.99 | |
| 21 | 3.02.03.3047
FILM | Low Stock | 13.99 | |
| 22 | 3.02.01.0913
WATER TANK | Low Stock | 12.99 | |
| 23 | 3.02.02.0320
TOP SHELF | In Stock | 34.99 | |
| 24 | 3.02.09.0304
GLASS DOOR | On Order | 51.99 | |
| 25 | 3.02.02.0367
HANDLE | Not Available | ||
| 26 | 3.02.02.0321
BOTTOM SHELF | Low Stock | 34.99 | |
| 27 | 3.02.02.0206B
MIDDLE SHELF | Low Stock | 11.99 | |
| 28 | 3.02.08.2753
BASE GRILLE | In Stock | 19.99 | |
| 29 | 3.02.02.0103
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | |
| 30 | 3.02.02.0102
RIGHT LOWER HINGE | In Stock | 6.99 | |
| 31 | 3.02.08.0126
BOTTOM BRACKET | Not Available | ||
| 32 | 3.02.02.0105
LEFT LOWER HINGE | In Stock | 6.99 | |
| 33 | 3.02.07.0032
BOLT M8*12 | In Stock | 3.99 | |
| 34 | 3.02.06.0137
CONDENSER | Low Stock | 28.99 | |
| 35 | 3.02.05.0181
EXTERIOR FAN MOTOR | Not Available | ||
| 36 | 3.02.08.0506
FAN SUPPORTER | Not Available | ||
| 37 | 3060101
SUCTION PIPE | Not Available | ||
| 38 | 3.02.01.0452
LEVELING LEG | In Stock | 6.99 | |
| 39 | 3.02.08.0124
COMPRESSOR BASE | Not Available | ||
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
B
B
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
20
20
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
295x570x870mm
295x570x870mm
Dimensions Packed
325x530x910mm
325x530x910mm
Reversible Door
Yes
Yes
Weight Packed
32kg
32kg
Weight Unpacked
30kg
30kg
Noise Level
40dB
40dB
Connectivity Type
Cable with Plug
Cable with Plug
Description

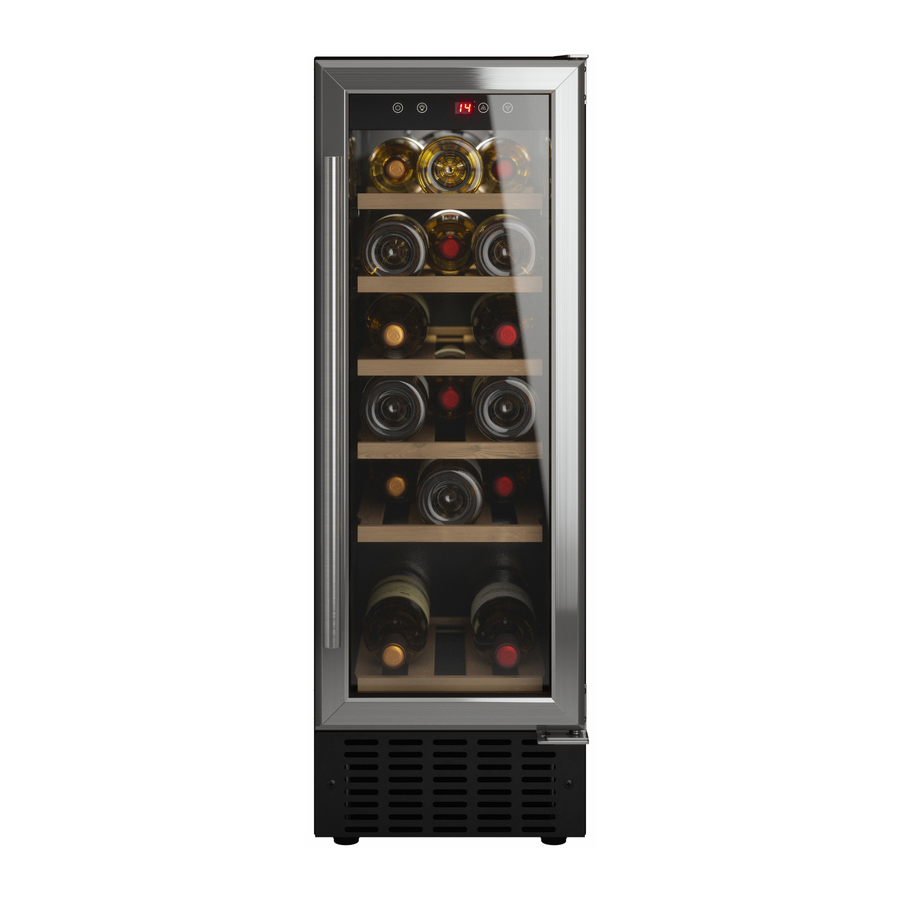

With our 300mm Wine Cooler you can store up to 20 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
