H870xW295xD570 Under Counter Wine Cooler (Eco Design)
WRWC30BKED

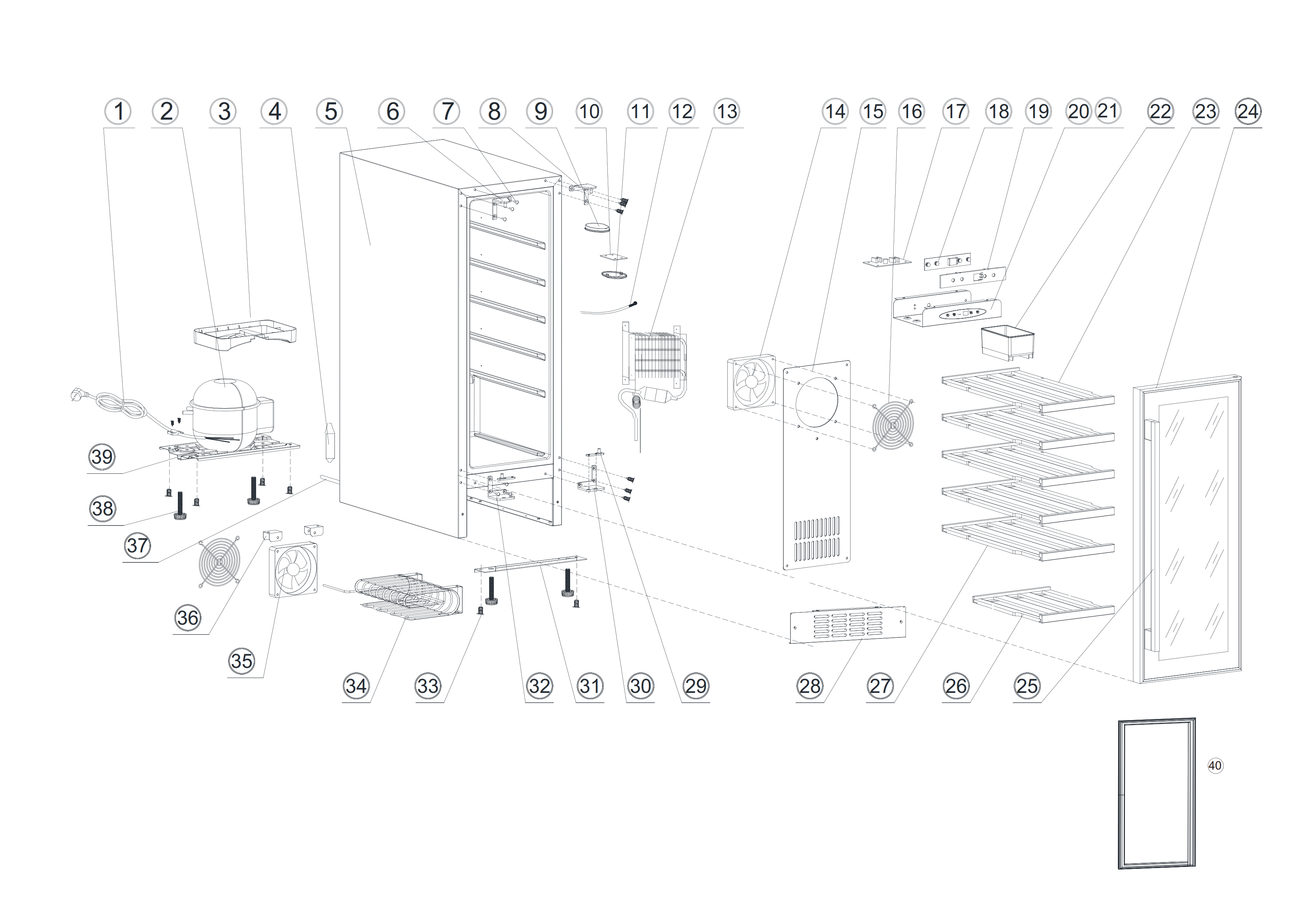

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.05.0838
UK POWER CORD | In Stock | 10.99 | |
| 2 | 3.02.06.0611
COMPRESSOR | In Stock | 99.99 | |
| 3 | 3.02.01.1509A
WATER DRIP TRAY | In Stock | 14.99 | |
| 4 | 3.02.06.0103
DRY FILTER | In Stock | 20.99 | |
| 5 | 2.02.01.2548
CABINET | Not Available | ||
| 6 | 3.02.02.0379C
LEFT UPPER HINGE | In Stock | 6.99 | |
| 7 | 3.02.01.2474
DECORATION PLUG | In Stock | Contact Us | |
| 8 | 3.02.02.0379C
RIGHT UPPER HINGE | In Stock | 6.99 | |
| 9 | 3.01.01.0050B
LIGHT BASE | Low Stock | 9.99 | |
| 10 | 3.01.05.0072
LED LIGHT | In Stock | 12.99 | |
| 11 | 3.01.01.0048A
LIGHT COVER | In Stock | 9.99 | |
| 12 | 3.02.05.0100B
AIR THERMISTOR | In Stock | 10.99 | |
| 13 | 3.02.06.0296
EVAPORATOR | Low Stock | 68.99 | |
| 16 | 3.02.05.0179B
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| 17 | 3.02.08.0001A
AIR DUCT | Not Available | ||
| 18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 19 | 3.02.05.1408
POWER PCB | In Stock | 59.99 | |
| 20 | 3.02.05.1621
CONTROL PCB | On Order | Contact Us | |
| 21 | 3.02.01.0236A
PCB SUPPORTER | In Stock | 6.99 | |
| 22 | 3.02.08.1228B
ELECTRICAL BOX | Not Available | ||
| 23 | 3.02.03.A240
FILM | In Stock | 4.99 | |
| 24 | 3.02.01.1294
WATER TANK | In Stock | 5.99 | |
| 25 | 3.02.02.0204B
TOP WOODEN SHELF | Not Available | ||
| 26 | 2.02.06.1856
PLASTIC GLASS DOOR | Not Available | ||
| 27 | 3.02.02.0273A
STAINLESS STEEL HANDLE | Not Available | ||
| 28 | 3.02.02.0360B
BOTTOM WOODEN SHELF | Low Stock | 11.99 | |
| 29 | 3.02.02.0206B
MIDDLE WOODEN SHELF | Low Stock | 11.99 | |
| 30 | 3.02.08.2753
BASE GRILLE | In Stock | Contact Us | |
| 31 | 3.02.02.0103B
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | |
| 32 | 3.02.02.0102B
RIGHT LOWER HINGE | In Stock | 6.99 | |
| 33 | 3.02.08.0126A
BOTTOM BRACKET | Not Available | ||
| 34 | 3.02.02.0105B
LEFT LOWER HINGE | Low Stock | 6.99 | |
| 35 | 3.02.07.0032A
BOLT M8*12 | In Stock | 3.99 | |
| 36 | 3.02.06.0137
CONDENSER | Low Stock | 28.99 | |
| 37 | 3.02.05.0181A
EXTERIOR FAN MOTOR | Low Stock | 20.99 | |
| 38 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
| 40 | 3.02.01.0452
LEVELING LEG | In Stock | 6.99 | |
| 41 | 3.02.08.0124
COMPRESSOR BASE | Not Available | ||
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
20
20
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
295x570x870mm
295x570x870mm
Dimensions Packed
325x630x910mm
325x630x910mm
Reversible Door
Yes
Yes
Weight Packed
32kg
32kg
Weight Unpacked
30kg
30kg
Noise Level
40dB
40dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our 300mm Wine Cooler you can store up to 20 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
