| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

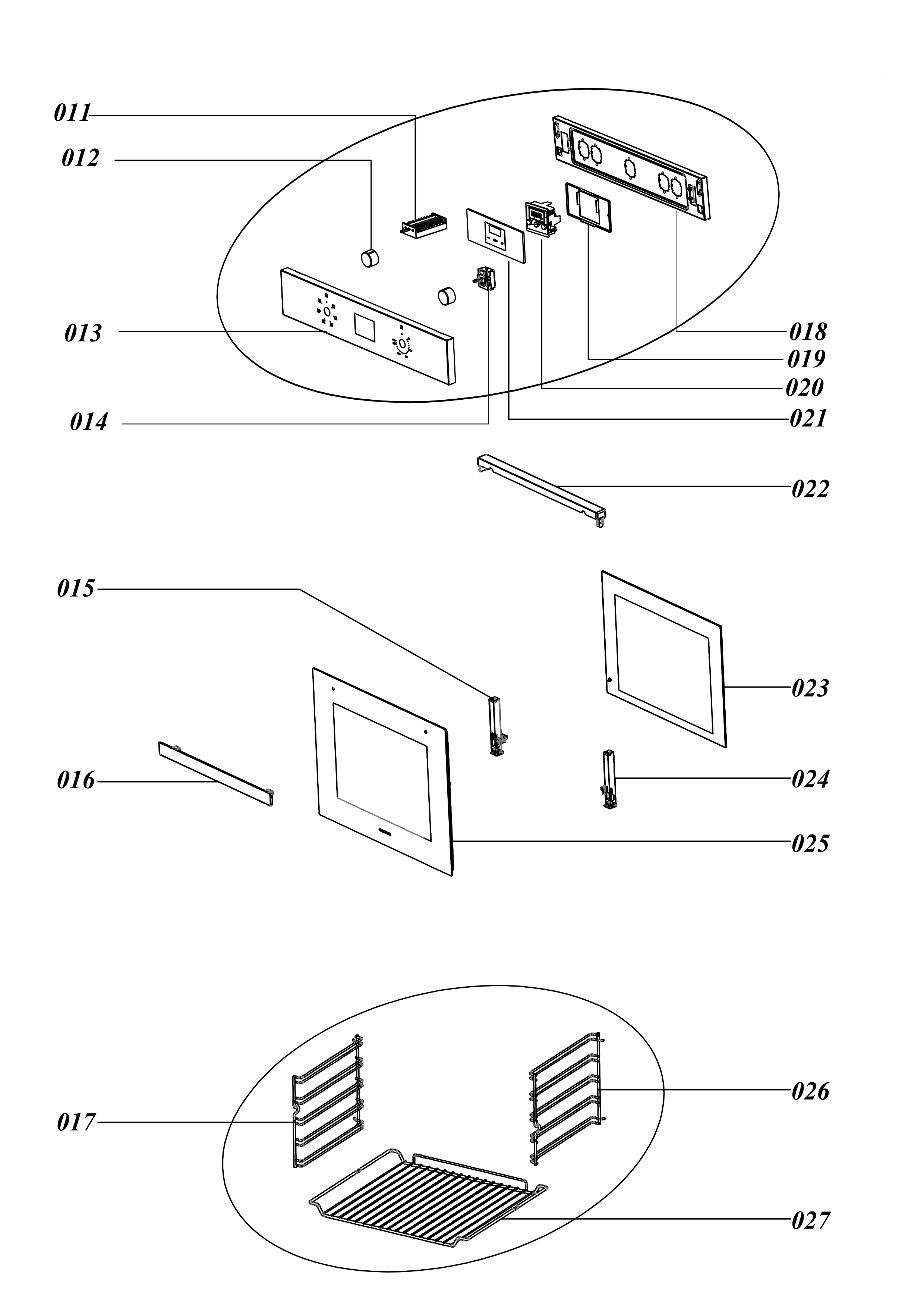

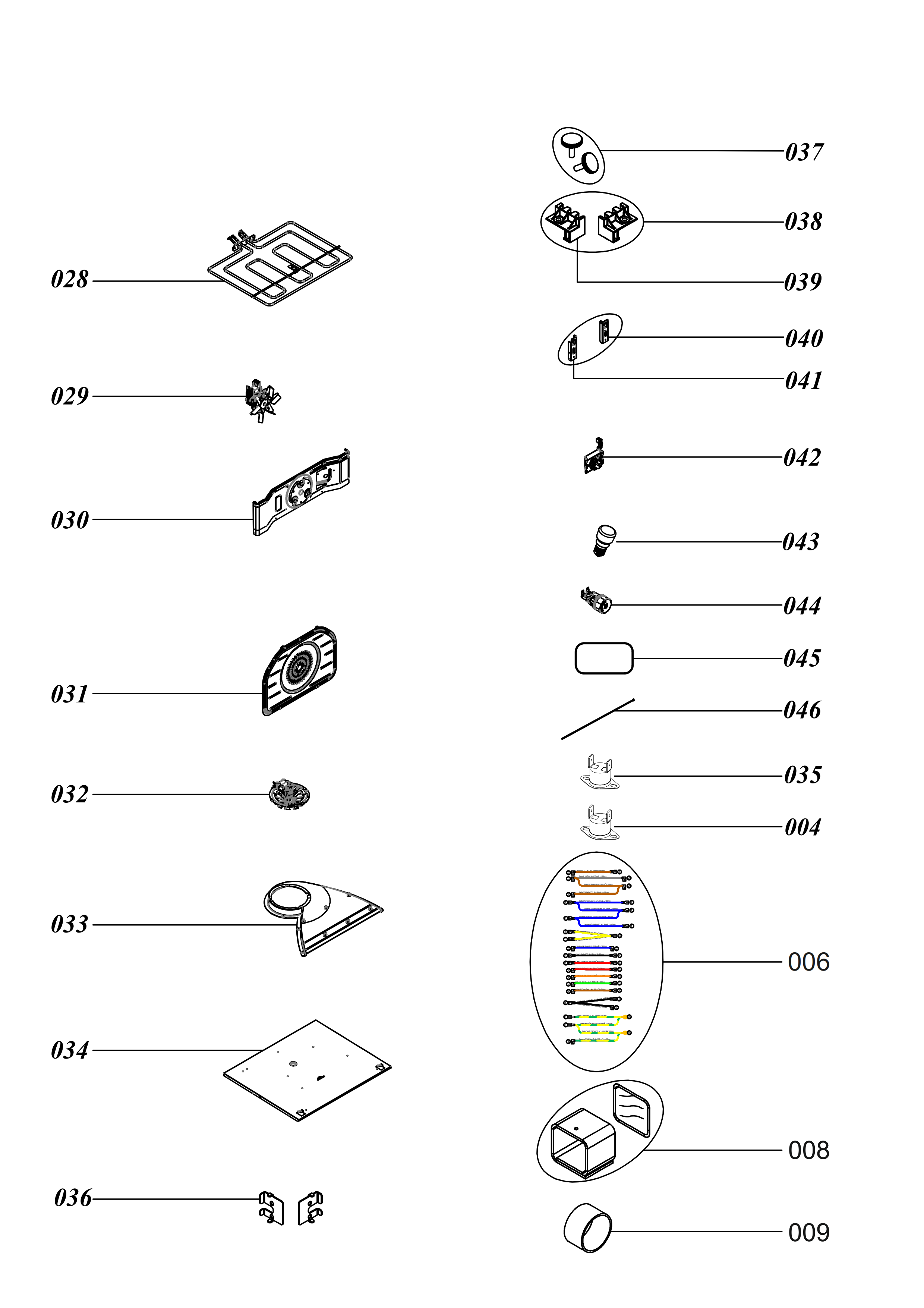

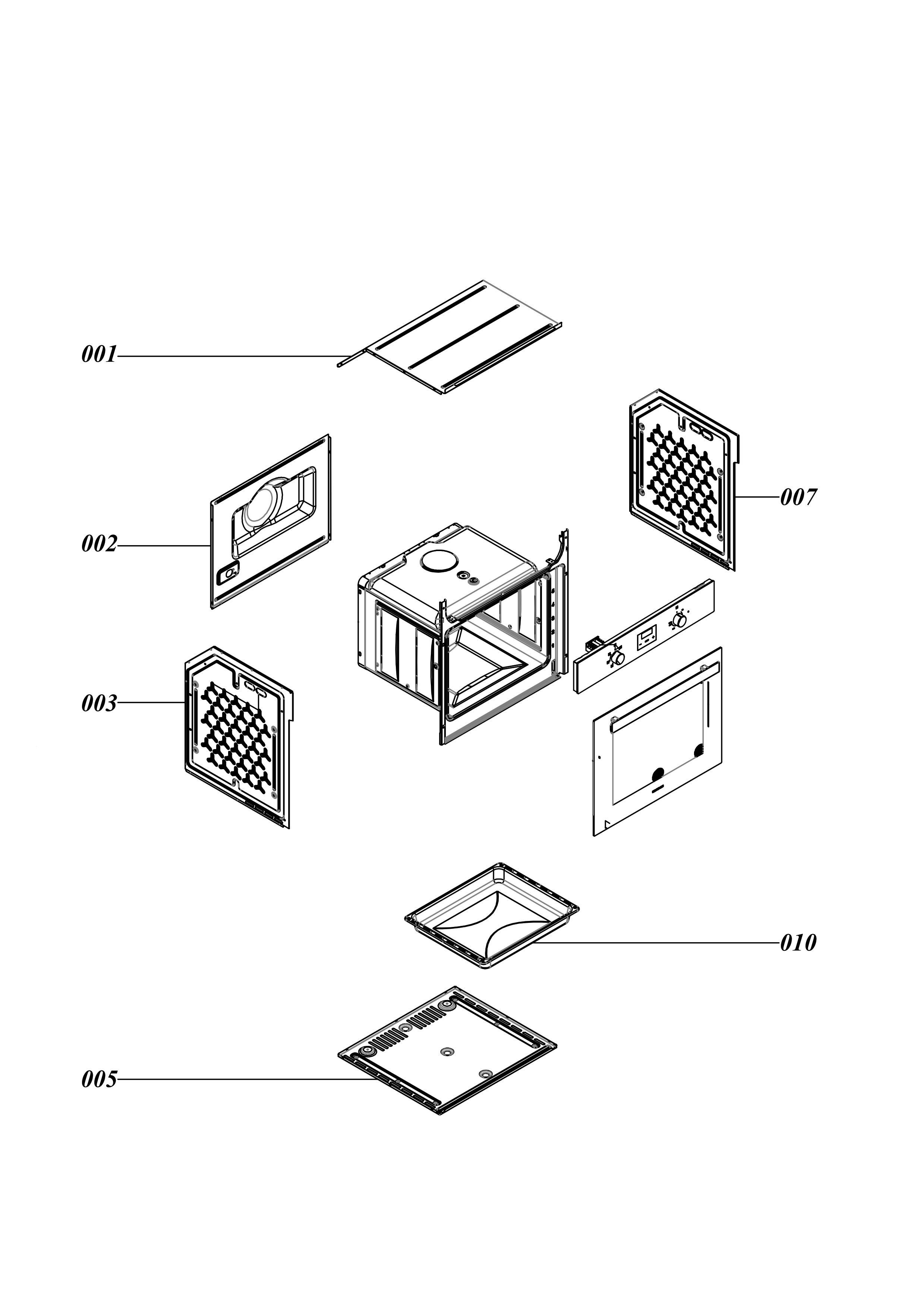

| Drawing 1 | ||||
| 1 | YM121.6500.617
TOP COVER | Not Available | ||
| 2 | YM121.6500.616
REAR COVER SHEET | Not Available | ||
| 3 | YM121.6500.615
SIDE COVER LEFT | Not Available | ||
| 4 | YT413.6500.08
LIMIT THERMOSTAT NC 65C | In Stock | 4.99 | |
| 5 | YM121.6500.605
LOWER COVER SHEET | Not Available | ||
| 6 | YT451.6502.06
SWITCH CABLE GROUP | Low Stock | 39.99 | |
| 7 | YM121.6500.614
SIDE COVER RIGHT | Not Available | ||
| 8 | YM540.6500.01
REAR SIDE INSULATION GLASS FIBER | Not Available | ||
| 9 | YT141.6500.02
OVEN VENTILATION PIPE | Not Available | ||
| 10 | YM192.6500.613
SHALLOW TRAY | In Stock | 19.99 | |
| 11 | YT413.6500.25
CIRCUIT BREAKER | In Stock | 4.99 | |
| 12 | YT201.6500.37
BUTTON | In Stock | 3.99 | |
| 13 | YM133.6500.687
PANEL SCREEN PRINTING | Low Stock | 10.99 | |
| 14 | YT413.6500.03
RETECOOL THERMOSTAT | Low Stock | 24.99 | |
| 15 | YM115.6500.601
HINGE | In Stock | 9.99 | |
| 16 | YT901.6500.09
OVEN DOOR HANDLE | Low Stock | 13.99 | |
| 17 | YT901.6500.02
WIRE SHELF | In Stock | 19.99 | |
| 18 | YM115.6500.618
PANEL INNER SHEET | Not Available | ||
| 19 | YM121.6500.613
DJT TIMER 2000 ASSEMBLY SHEET | On Order | 8.99 | |
| 20 | YT457.6501.03
DJT TIMER OT 2100 LED | On Order | 37.99 | |
| 21 | YM804.6500.04
S2 PANEL IC GLASS WITHOUT PRINTED LABEL | Low Stock | 11.99 | |
| 22 | YT201.6500.04
DOOR UPPER PLASTIC | Low Stock | 9.99 | |
| 23 | YM804.6500.01
DOOR INTERIOR GLASS | In Stock | 29.99 | |
| 24 | YM115.6500.601
HINGE | In Stock | 9.99 | |
| 25 | YM804.6500.406
OVEN DOOR GLASS | In Stock | 59.99 | |
| 26 | YT901.6500.02
WIRE SHELF | In Stock | 19.99 | |
| 27 | YT901.6500.03
WIRE GRILL | In Stock | 19.99 | |
| 28 | YT400.6500.02
TOP RESISTANCE | Low Stock | 29.99 | |
| 29 | YT410.6500.05
TURBO FAN | Low Stock | 19.99 | |
| 30 | YM121.6500.653
TURBO FAN ENGINE CARRIER | Not Available | ||
| 31 | YM192.6500.611
FAN PROTECTION SHEET | Low Stock | 19.99 | |
| 32 | YT410.6500.06
VENTILATION FAN GROUP | In Stock | 19.99 | |
| 33 | YT201.6500.01
VENTILATION PLASTIC | Low Stock | 9.99 | |
| 34 | YM121.6500.607
VENTILATION LOWER SHEET | Not Available | ||
| 35 | YT413.6500.05
LIMIT THERMOSTAT NC 110C | In Stock | 4.99 | |
| 36 | YM121.6500.608
HINGE LOWER CONNECTION SHEET | Low Stock | 9.99 | |
| 37 | YT320.1000.82
THREADED SCREW | Not Available | ||
| 38 | YT201.6500.02
DOOR SIDE RIGHT | Low Stock | 4.99 | |
| 39 | YT201.6500.03
DOOR SIDE LEFT | Low Stock | 4.99 | |
| 40 | YM121.6500.602
FOR HINGE | In Stock | 9.99 | |
| 41 | YM121.6500.603
LEFT FOR HINGE | In Stock | 9.99 | |
| 42 | YT422.10000.01
TERMINAL BOX | Low Stock | 9.99 | |
| 43 | YT403.6500.01
LAMP | Low Stock | 7.49 | |
| 44 | YT405.6500.01
LAMP HOLDER | In Stock | 14.99 | |
| 45 | YT409.6500.01
DOOR INSULATION GASKET | In Stock | 29.99 | |
| 46 | YT370.6500.03
INSULATION FIXING WIRE | Low Stock | Contact Us | |
| 47 | YT400.6500.05
TURBO RESISTOR | In Stock | 29.99 | |
| 48 | YT901.6500.26
WIRE GRILL IN THE TRAY | In Stock | 14.99 | |
Functions
- Conventional/Traditional cooking
- Grilling
- Turbofan cooking
- Child lock
- Number of functions: 4
Technical Specifications
Dimensions Unpacked
595x547x595mm
595x547x595mm
Energy Rating
A
A
Dimensions Packed
700x655x665mm
700x655x665mm
Weight Unpacked
29.6kg
29.6kg
Weight Packed
32kg
32kg
Number of Functions
4
4
Oven Capacity
72L
72L
Electrical Connection
Cable no Plug
Cable no Plug
Maximum Power
2650w
2650w
Lamp Power
25w
25w
Description
True Turbofan - This oven has a ventilated cavity (fan+ring) that evenly distributes the heater faster to provide a more even cooking without the need to turn your food.
EcoSteam - The oven can be cleaned through creating steam to soften food residue allowing for an easy oven clean.
LED Timer - Our LED programmable timer allows you to set your desired cooking time and the oven will sound an alarm when your meal is ready.
Plug and Play - The oven is supplied with a British Standard 3 pin plug for ease of connection and be plugged into a standard 3 pin wall socket. (There is also an option to hardwire if required).
Multifunction - This oven comes with four functions that cover the most used cooking functions.
