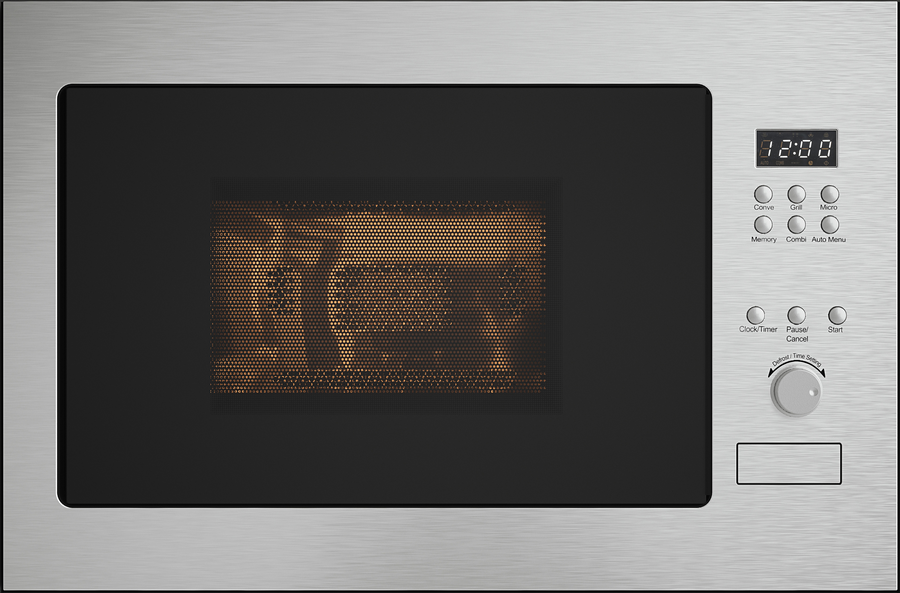

H382xW594xD530 Stainless Steel Combination Microwave - Left Hinge Opening
WRMICRO31SS

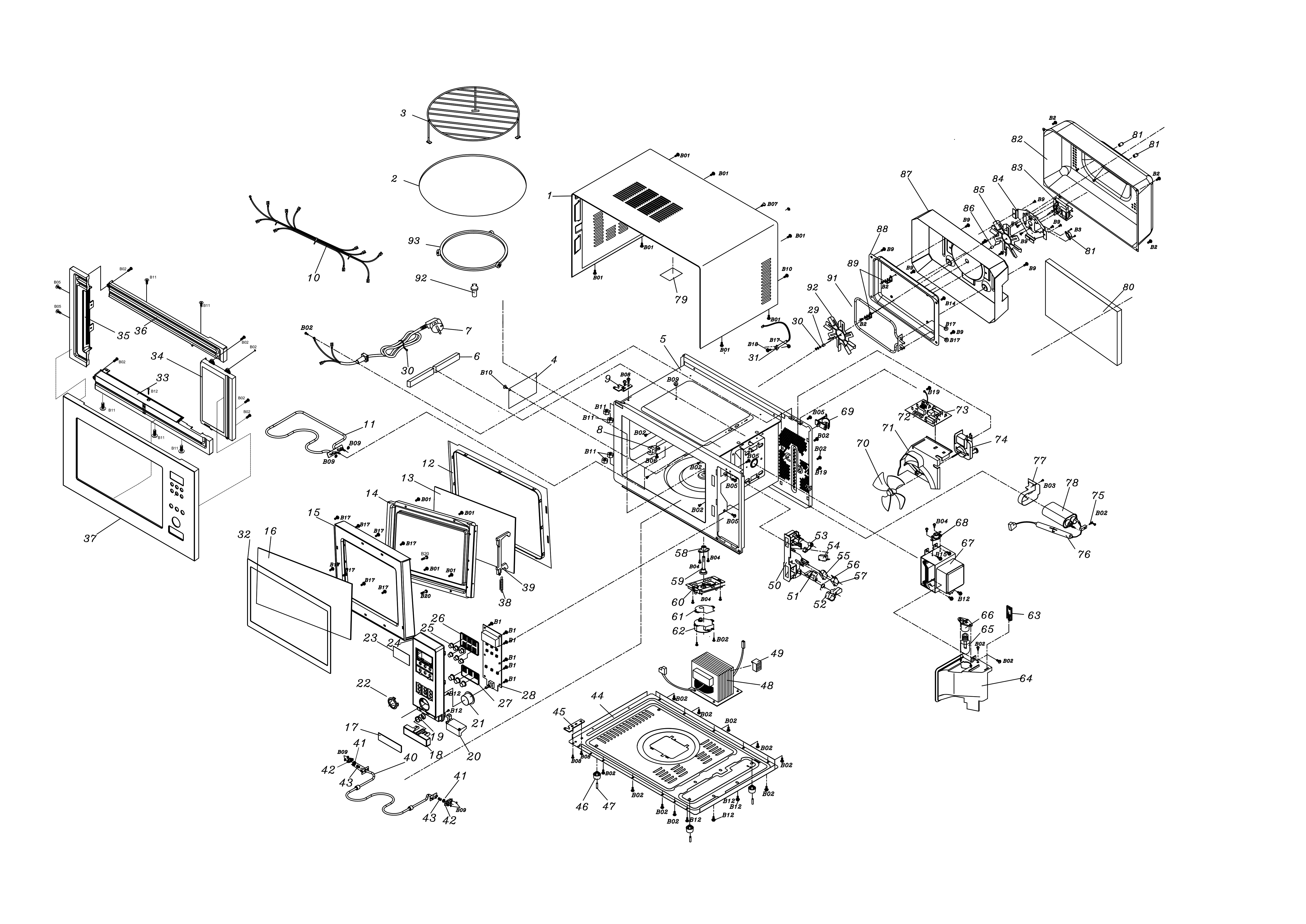

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| N/A | 17470000009107
10A FUSE | In Stock | 5.99 | |
| 1 | 21199-01741-A0
MANTLE | Not Available | ||
| 2 | 25100-00004-A0
GLASS PLATE | On Order | 24.99 | |
| 3 | 21599-00511-A0
GRILL RACK | In Stock | 13.99 | |
| 4 | 29100-00001-B0
SPLASH-PROOF BOARD | Not Available | ||
| 5 | 50100-00110-A0
CAVITY | Not Available | ||
| 7 | 23410-10095-B0
POWER WIRE | In Stock | 9.99 | |
| 8 | 29400-00006-G0
FIX HOOK | Not Available | ||
| 9 | 21299-00559-A0
UP BEARING | Low Stock | 2.99 | |
| 10 | 23400-00264-A0
ELECTRIC WIRE GROUP | Low Stock | 6.99 | |
| 11 | 23500-10081-C0
ELECTRIC HEATING TUBE (TOP) | Low Stock | 10.99 | |
| 12 | 22200-00199-C0
PROTECTION FRAME | Low Stock | 2.99 | |
| 13 | 25300-00200-C0
CONVECTION GLASS | Low Stock | 2.99 | |
| 14 | 50200-00002-B0
DOOR BODY ASSEMBLING UNIT | Low Stock | 2.99 | |
| 15 | 22100-00621-F0
FACE FRAME | Low Stock | 9.99 | |
| 16 | 25300-00917-C0
WINDOW BOARD | Low Stock | 4.99 | |
| 17 | 21299-02248-A0
OPEN THE DOOR FACEPLATE | Not Available | ||
| 18 | 22100-01313-C0
OPEN THE DOOR KEY-PRESS | In Stock | 4.99 | |
| 19 | 21599-00159-A0
SPRING | Low Stock | 3.99 | |
| 20 | 22200-00172-C0
REVOLVING ARM | Low Stock | 3.99 | |
| 21 | 22100-01176-B0
RING KNOB | In Stock | 2.99 | |
| 22 | 22100-01314-A0
RING KNOB COVER | In Stock | 3.99 | |
| 23 | 22100-00784-B0
FILM | Low Stock | 3.99 | |
| 24 | 22100-00694-B0
CONTROL BOARD | Low Stock | 2.99 | |
| 25 | 22100-01315-A0
BUTTON | In Stock | 3.50 | |
| 26 | 22200-00376-A0
ROW BUTTON A | In Stock | 2.99 | |
| 26 | 22200-00406-A0
ROW BUTTON A | In Stock | 8.50 | |
| 28 | 23320-11021-A0
PCB | Low Stock | 19.99 | |
| 30 | 21599-00210-B0
WASHER | Not Available | ||
| 31 | 23730-10115-A0
TEMPERATURE RESISTOR | In Stock | 8.99 | |
| 33 | 22200-00345-A0
INNER FRAME BOTTOM | Low Stock | 5.99 | |
| 34 | 22200-00375-A0
INNER FRAME RIGHT | Low Stock | 5.50 | |
| 35 | 22200-00378-A0
INNER FRAME LEFT | Low Stock | 3.99 | |
| 36 | 22200-00492-B0
INNER FRAME TOP | Low Stock | 3.99 | |
| 37 | 21131-224B3-A0
FRAME | Low Stock | 3.50 | |
| 38 | 21599-00139-A0
DOOR HOOK SPRING | Low Stock | 3.99 | |
| 39 | 22200-00170-C0
DOOR HOOK | In Stock | 2.99 | |
| 44 | 21199-00109-E0
BASE BOARD | Not Available | ||
| 45 | 21299-00442-B0
LOWER SUPPORT | Low Stock | 2.99 | |
| 46 | 22100-00500-B0
LEG | Not Available | ||
| 47 | 22200-00115-A0
PIN | Not Available | ||
| 48 | 23240-10092-A0
TRANSFORMER | Low Stock | 29.99 | |
| 49 | 29500-00010-A0
DAMPING BLOCK | Not Available | ||
| 50 | 22200-00020-F0
SWITCH STAND | In Stock | 4.99 | |
| 52 | 22200-00171-E0
REVOLVING ARM | Low Stock | 10.99 | |
| 54 | 23710-10001-A0
MICRO-SWITCH A | Low Stock | 9.99 | |
| 55 | 23710-10001-A0
MICRO-SWITCH A | Low Stock | 9.99 | |
| 57 | 23710-10003-A0
MICRO-SWITCH C | In Stock | 9.99 | |
| 61 | 23640-10084-A0
TRAY MOTOR | In Stock | 9.99 | |
| 62 | 23640-10084-A0
TRAY MOTOR | In Stock | 9.99 | |
| 64 | 21299-00250-G0
AIR INLET COVER | Not Available | ||
| 65 | 23750-10131-A0
LAMP AND LAMP HOLDER | In Stock | 14.99 | |
| 66 | 23750-10131-A0
LAMP AND LAMP HOLDER | In Stock | 14.99 | |
| 67 | 23110-10002-B0
MAGNETRON | Low Stock | 25.99 | |
| 68 | 23750-10018-A0
THERMOSTAT | In Stock | 19.99 | |
| 70 | 21299-00307-B0
FAN VANE | Low Stock | 10.99 | |
| 70 | 21299-00398-A0
FAN VANE | In Stock | 10.99 | |
| 70 | 22200-00142-C0
FAN VANE | Low Stock | 9.99 | |
| 71 | 22200-00419-D0
FAN SUPPORT | Not Available | ||
| 72 | 23300-10010-A0
NOISE FILTER | In Stock | 9.99 | |
| 73 | 23300-10010-A0
NOISE FILTER | In Stock | 9.99 | |
| 74 | 236L0-10002-A0
FAN MOTOR | Low Stock | 19.99 | |
| 75 | 23710-10058-A0
DIODE | In Stock | 9.99 | |
| 76 | 23760-10137-A0
HIGH VOLTAGE FUSE | Low Stock | 9.99 | |
| 77 | 21299-00230-G0
CAPACITANCE CLAMP | In Stock | 4.99 | |
| 78 | 23710-10042-A0
CAPACITOR | On Order | 14.99 | |
| 79 | 21299-00271-G0
HEAT-PROOF BOARD | Not Available | ||
| 79 | 21299-00273-A0
HEAT-PROOF BOARD | Not Available | ||
| 82 | 21199-00324-H0
BACK COVER | Not Available | ||
| 83 | 236L0-10037-A0
CONVECTION MOTOR | In Stock | 14.99 | |
| 84 | 21299-00397-E0
MOTOR STAND | Not Available | ||
| 86 | 21599-00025-B0
SLEEVE | Not Available | ||
| 86 | 21599-00068-B0
SLEEVE | Not Available | ||
| 86 | 21599-00069-B0
SLEEVE | Not Available | ||
| 88 | 21199-00499-F0
HOT WIND CAVITY | Not Available | ||
| 91 | 23500-10061-B0
HEATING TUBE | On Order | 19.99 | |
| 92 | 22300-00012-C0
CONNECTOR | In Stock | 9.99 | |
| 93 | 22300-00098-A0
ROLLER SUPPORT | In Stock | 15.99 | |
Functions
â–ªConvention cooking
â–ªTimer
â–ªLED Clock
â–ªChild safety lock
â–ªPause and cancel operation
â–ªCooking programmes: 6
â–ªPower Levels: 5
Technical Specifications
Dimensions Unpacked
390x592x530mm
390x592x530mm
Dimensions Packed
465x665x575mm
465x665x575mm
Weight Unpacked
16.5kg
16.5kg
Weight Packed
17kg
17kg
Fuse Rating
13Amp
13Amp
Grill Power Rating
1200w
1200w
Capacity
31L
31L
Microwave Power
900w
900w
Glass Plate Diameter
315mm
315mm
Connection Type
BST 3 Pin Plug
BST 3 Pin Plug
Description
Our microwave and grill combines everything you need in the kitchen into one compact and stylish appliance. Plus the stylish LED display clearly shows the timer to ensure you can keep an eye on your cooking timings. A great safety feature is the child lock, so you don’t need to worry about any young prying hands.
