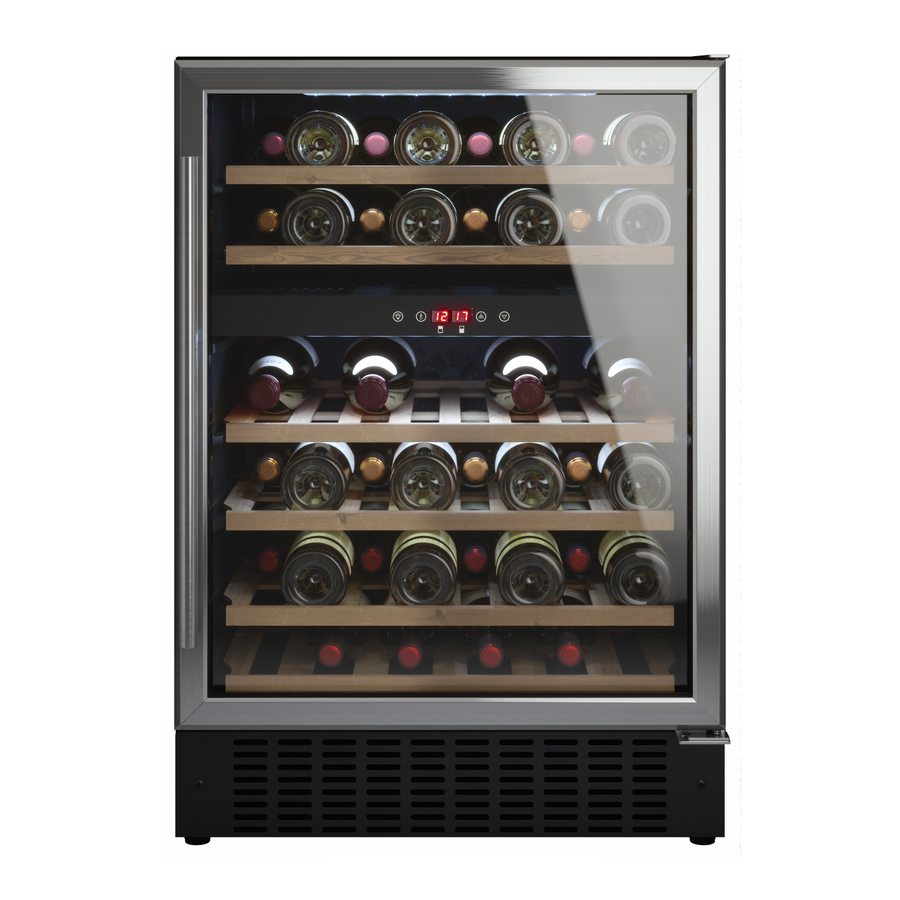

H870xW595xD570 Under Counter Wine Cooler (Eco Design)
WRWC60SSED

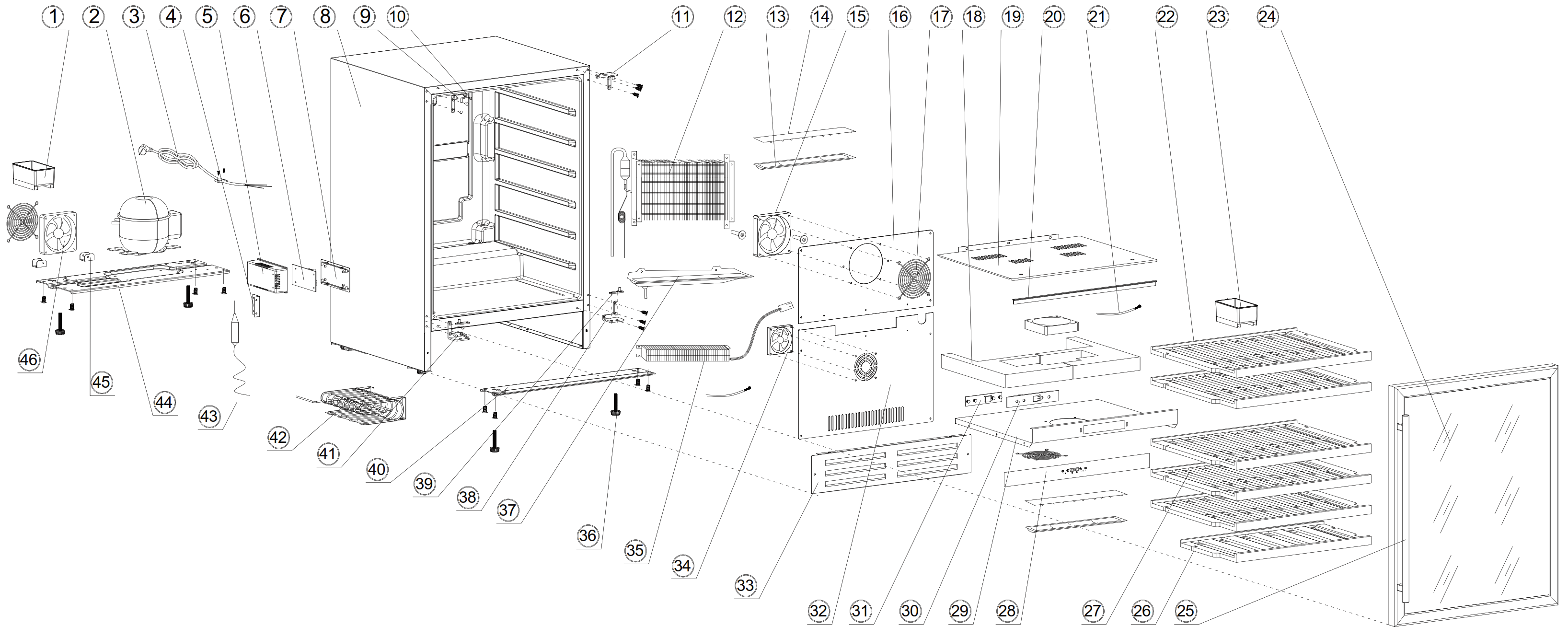

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.01.0264
WATER DRIP TRAY | In Stock | 5.99 | |
| 2 | 3.02.06.0876
COMPRESSOR | Low Stock | Contact Us | |
| 4 | 6.2.1.116006A
PCB BRACKET | Not Available | ||
| 5 | 3.02.01.1460B
PCB BOX | Not Available | ||
| 6 | 3.02.05.1408
POWER PCB | In Stock | 59.99 | |
| 7 | 3.02.01.0262A
PCB BASE | Low Stock | 5.99 | |
| 8 | 2.02.01.2517
CABINET | Not Available | ||
| 10 | 3.02.07.0018
SCREW | Not Available | ||
| 11 | 3.02.02.0397C
RT UPPER HINGE | In Stock | Contact Us | |
| 12 | 3.02.06.0354
EVAPORATOR | Not Available | ||
| 13 | 3.02.01.0864A
LAMP COVER | Not Available | ||
| 14 | 3.02.05.0096
LAMP PCB | In Stock | 4.99 | |
| 15 | 3.02.05.0179B
INNER FAN | In Stock | 19.99 | |
| 18 | 3.02.03.6853
SPACER POLYFOAM | Not Available | ||
| 19 | 3.02.08.0193
SPACER COVER | Not Available | ||
| 21 | 3.02.05.0100B
SENSOR | In Stock | 10.99 | |
| 22 | 3.02.02.2754
TOP SHELF | In Stock | Contact Us | |
| 25 | 3.02.02.0273A
S/S HANDLE | Not Available | ||
| 26 | 3.02.02.2752
BOTTOM SHELF | In Stock | Contact Us | |
| 27 | 3.02.02.2753
MIDDLE SHELF | In Stock | Contact Us | |
| 28 | 3.02.03.A451
CONTROL PANEL STICKER | In Stock | Contact Us | |
| 29 | 3.02.08.1043
SPACER BASE | Not Available | ||
| 30 | 3.02.01.0236A
CONTROL PCB SUPPORTER | In Stock | 6.99 | |
| 31 | 3.02.05.1541
CONTROL PCB | In Stock | Contact Us | |
| 34 | 3.02.05.0045
PTC HEATING ELEMENT | In Stock | 32.99 | |
| 35 | 3.01.05.0189
SMALL INTERIOR FAN | Not Available | ||
| 36 | 3.02.01.0452
FOOT | In Stock | 6.99 | |
| 42 | 3.02.06.0128
CONDENSER | Low Stock | Contact Us | |
| 44 | 3.02.08.2143
COMPRESSOR BASE | Not Available | ||
| 46 | 3.02.05.0181A
OUTER FAN | Low Stock | 20.99 | |
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
46
46
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
50kg
50kg
Weight Unpacked
45kg
45kg
Noise Level
44dB
44dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our larger capacity 600mm Wine Cooler you can store up to 46 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
