Item# | Part Details | Availability | £ | |
---|---|---|---|---|

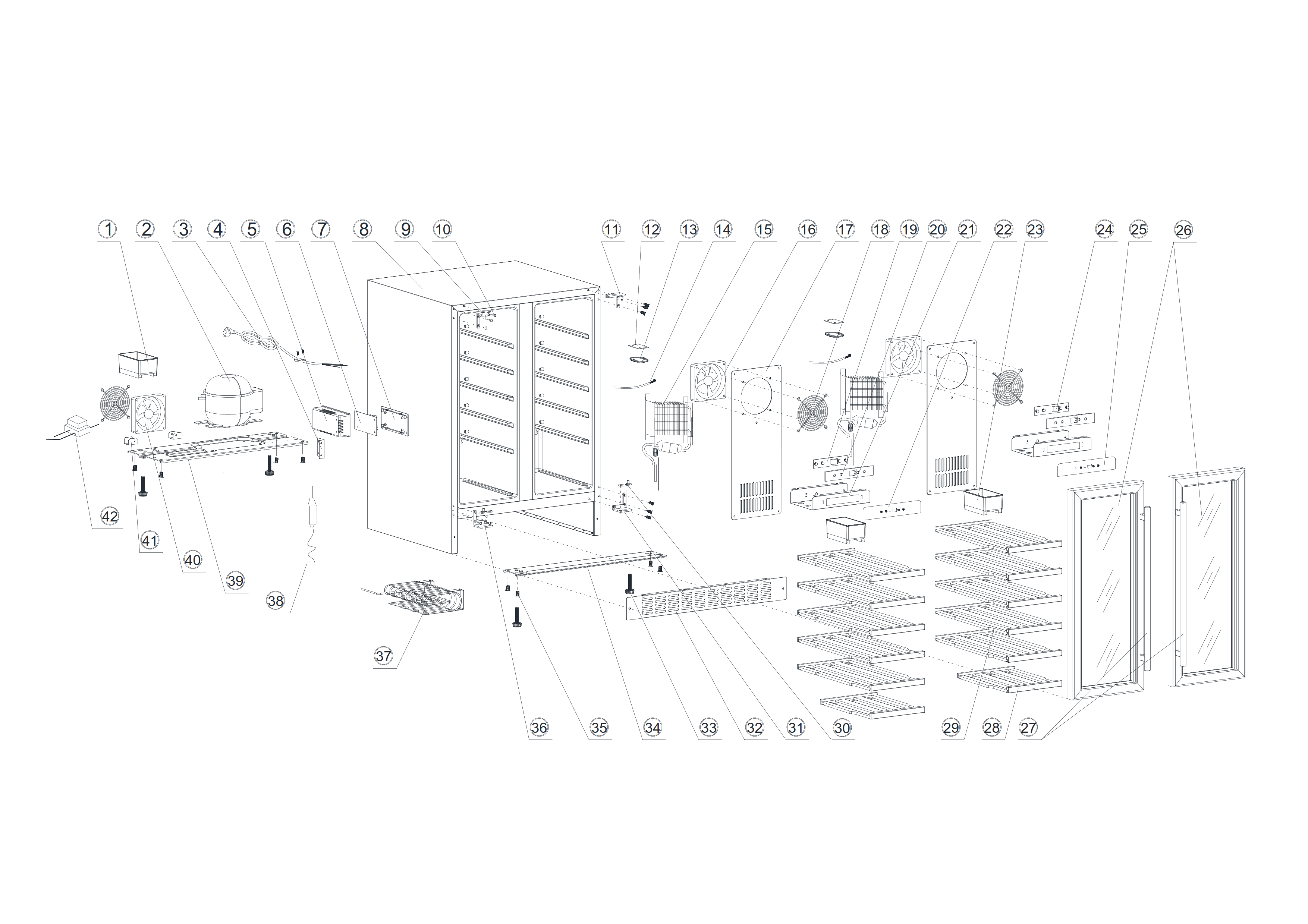

Drawing 1 | ||||
1 | 3.02.01.0264
WATER DRIP TRAY | In Stock | 5.99 | |
2 | 3.02.06.0868
COMPRESSOR | In Stock | 88.99 | |
3 | 3.02.05.0838
POWER CORD | In Stock | 10.99 | |
4 | 6.2.1.116006A
PCB BRACKET | Not Available | ||
5 | 3.02.01.1460B
PCB BOX | Not Available | ||
6 | 3.02.05.0460E
POWER PCB | In Stock | 45.99 | |
7 | 3.02.01.0262A
PCB BASE | Low Stock | 5.99 | |
8 | 2.02.01.0084F
CABINET | Not Available | ||
9 | 3.02.02.0379C
LEFT UPPER HINGE | In Stock | 6.99 | |
10 | 3.02.07.0018
SCREW | Not Available | ||
11 | 3.02.02.0397C
RT UPPER HINGE | In Stock | Contact Us | |
12 | 3.01.05.0072
LAMP PCB | In Stock | 12.99 | |
13 | 3.01.01.0048A
LAMP COVER | In Stock | 9.99 | |
14 | 3.02.05.0100B
SENSOR | In Stock | 10.99 | |
15 | 3.02.06.0285
EVAPORATOR | Not Available | ||
16 | 3.02.05.0179B
INTERIOR FAN MOTOR | In Stock | 19.99 | |
17 | 3.02.08.0001A
UPPER AIR DUCT | Not Available | ||
18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
19 | 3.02.05.0366B
CONTROL PCB | In Stock | 29.99 | |
20 | 3.02.01.0236A
PCB SUPPORTER | In Stock | 6.99 | |
21 | 3.02.08.1228B
ELECTRICAL BOX | Not Available | ||
22 | 3.02.03.A240
FILM | In Stock | 4.99 | |
23 | 3.02.01.1294
WATER TANK | In Stock | 5.99 | |
24 | 3.02.05.0365B
CONTROL PCB | Not Available | ||
25 | 3.02.03.B464
FILM | Not Available | ||
26 | 3.02.09.0313
GLASS DOOR | Not Available | ||
27 | 3.02.02.0273A
HANDLE | Not Available | ||
28 | 3.02.02.0360B
SMALL SHELF | Low Stock | 11.99 | |
29 | 3.02.02.0206B
MIDDLE SHELF | Low Stock | 11.99 | |
30 | 3.02.02.0103B
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | |
31 | 3.02.02.0102B
RIGHT LOWER HINGE | In Stock | 6.99 | |
32 | 3.02.08.2754
BASE GRILLE | In Stock | 19.50 | |
33 | 3.02.01.0452
LEVELING LEG | In Stock | 6.99 | |
34 | 3.02.08.1038
BOTTOM BRACKET | Not Available | ||
35 | 3.02.07.0024
SCREW | Not Available | ||
36 | 3.02.02.0105B
LEFT LOWER HINGE | Low Stock | 6.99 | |
37 | 3.02.06.0128
CONDENSER | Low Stock | Contact Us | |
38 | 3.02.06.0491
DRY FILTER | In Stock | 8.50 | |
39 | 3.02.08.2049
COMPRESSOR BASE | Not Available | ||
40 | 3.02.05.0181A
OUTER FAN | Not Available | ||
41 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
42 | 3.02.05.0789A
ELECTROMAGNETIC VALVE | Not Available |
Functions

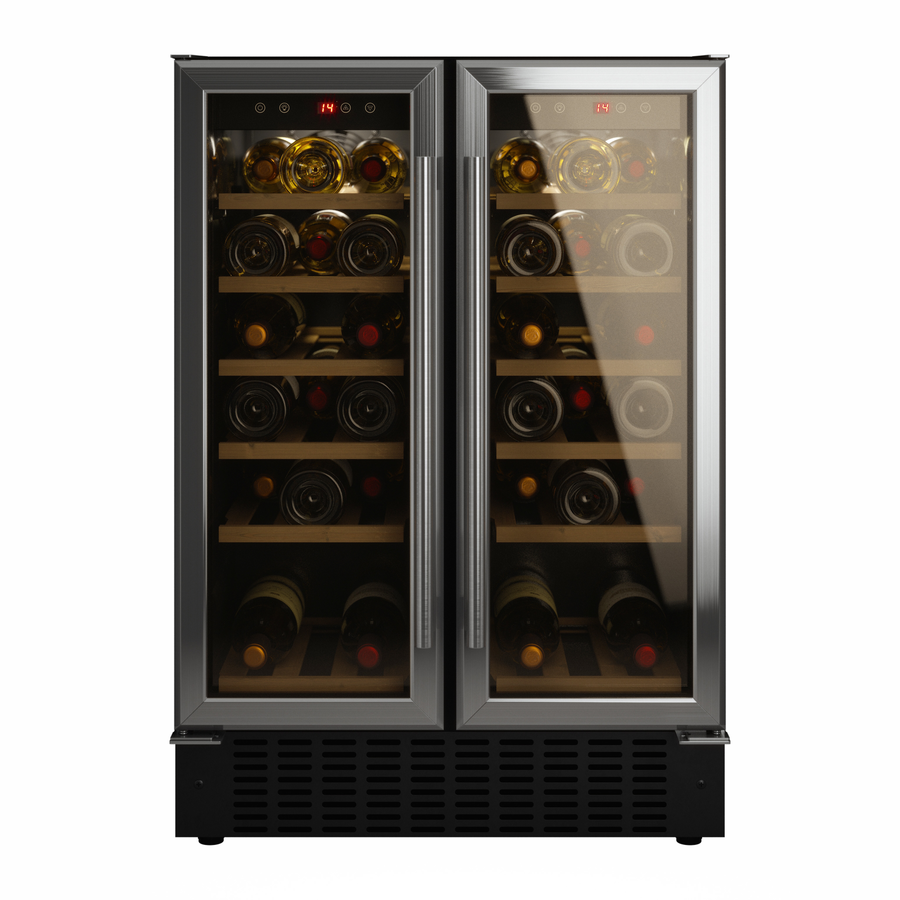

With our larger capacity double door twin zone Wine Cooler, you can store up to 36 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
