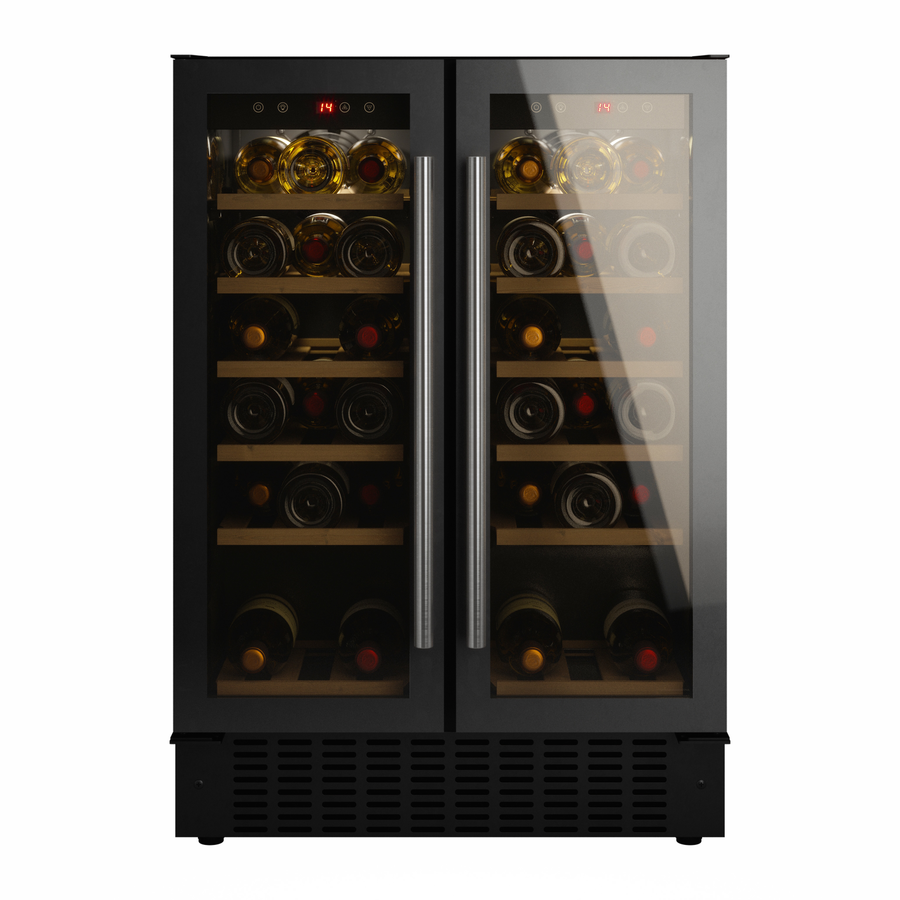

H870xW595xD568 Under Counter 2 Door Wine Cooler
WRWC60DDBK

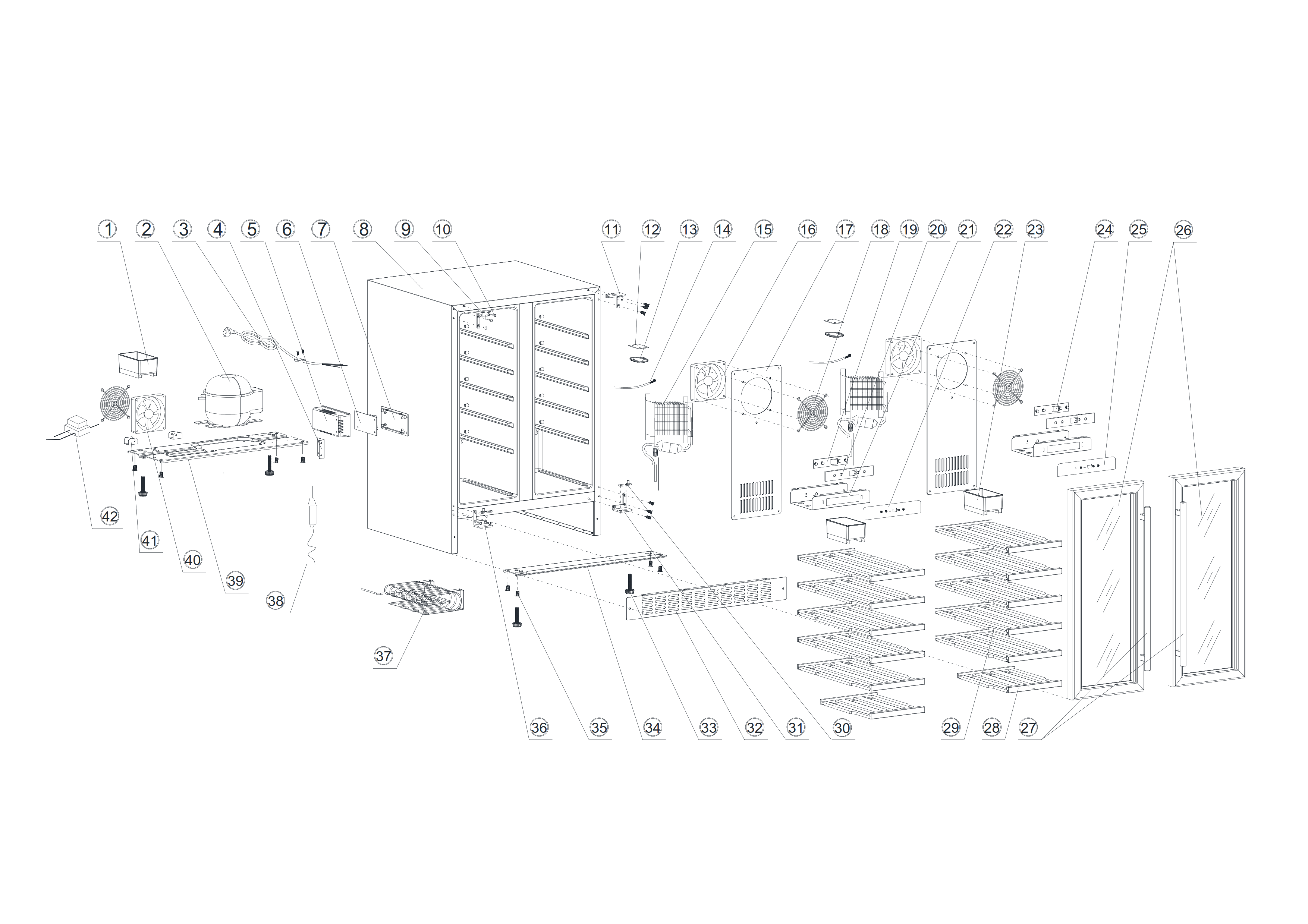

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.01.0264
WATER DRIP TRAY | In Stock | 5.99 | |
| 2 | 3.02.06.0868
COMPRESSOR | In Stock | 88.99 | |
| 3 | 3.02.05.0838
POWER CORD | In Stock | 10.99 | |
| 4 | 6.2.1.116006A
PCB BRACKET | Not Available | ||
| 5 | 3.02.01.1460B
PCB BOX | Not Available | ||
| 6 | 3.02.05.0460E
POWER PCB | In Stock | 45.99 | |
| 7 | 3.02.01.0262A
PCB BASE | Low Stock | 5.99 | |
| 8 | 2.02.01.0084F
CABINET | Not Available | ||
| 9 | 3.02.02.0379C
LEFT UPPER HINGE | In Stock | 6.99 | |
| 10 | 3.02.07.0018
SCREW | Not Available | ||
| 11 | 3.02.02.0397C
RT UPPER HINGE | In Stock | Contact Us | |
| 12 | 3.01.05.0072
LAMP PCB | In Stock | 12.99 | |
| 13 | 3.01.01.0048A
LAMP COVER | In Stock | 9.99 | |
| 14 | 3.02.05.0100B
SENSOR | In Stock | 10.99 | |
| 15 | 3.02.06.0285
EVAPORATOR | Not Available | ||
| 16 | 3.02.05.0179B
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| 17 | 3.02.08.0001A
UPPER AIR DUCT | Not Available | ||
| 18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 19 | 3.02.05.0366B
CONTROL PCB | In Stock | 29.99 | |
| 20 | 3.02.01.0236A
PCB SUPPORTER | In Stock | 6.99 | |
| 21 | 3.02.08.1228B
ELECTRICAL BOX | Not Available | ||
| 22 | 3.02.03.A240
FILM | In Stock | 4.99 | |
| 23 | 3.02.01.1294
WATER TANK | In Stock | 5.99 | |
| 24 | 3.02.05.0365B
CONTROL PCB | Not Available | ||
| 25 | 3.02.03.B464
FILM | Not Available | ||
| 26 | 3.02.09.1654
GLASS DOOR | In Stock | 109.99 | |
| 27 | 3.02.02.0273A
HANDLE | Not Available | ||
| 28 | 3.02.02.0360B
SMALL SHELF | Low Stock | 11.99 | |
| 29 | 3.02.02.0206B
MIDDLE SHELF | Low Stock | 11.99 | |
| 30 | 3.02.02.0103B
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | |
| 31 | 3.02.02.0102B
RIGHT LOWER HINGE | In Stock | 6.99 | |
| 32 | 3.02.08.2754
BASE GRILLE | In Stock | 19.50 | |
| 33 | 3.02.01.0452
LEVELING LEG | In Stock | 6.99 | |
| 34 | 3.02.08.1038
BOTTOM BRACKET | Not Available | ||
| 35 | 3.02.07.0024
SCREW | Not Available | ||
| 36 | 3.02.02.0105B
LEFT LOWER HINGE | Low Stock | 6.99 | |
| 37 | 3.02.06.0128
CONDENSER | Low Stock | Contact Us | |
| 38 | 3.02.06.0491
DRY FILTER | In Stock | 8.50 | |
| 39 | 3.02.08.2049
COMPRESSOR BASE | Not Available | ||
| 40 | 3.02.05.0181A
OUTER FAN | Low Stock | 20.99 | |
| 41 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
| 42 | 3.02.05.0789A
ELECTROMAGNETIC VALVE | Not Available | ||
Functions
- Height Adjustable Feet
- Twin Zone
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
C
C
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
36
36
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
51kg
51kg
Weight Unpacked
46kg
46kg
Noise Level
39dB
39dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our larger capacity double door twin zone Wine Cooler, you can store up to 36 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
