600MM BLACK WINE COOLER (ECO DESIGN MODEL)
WRWC60BKED.3

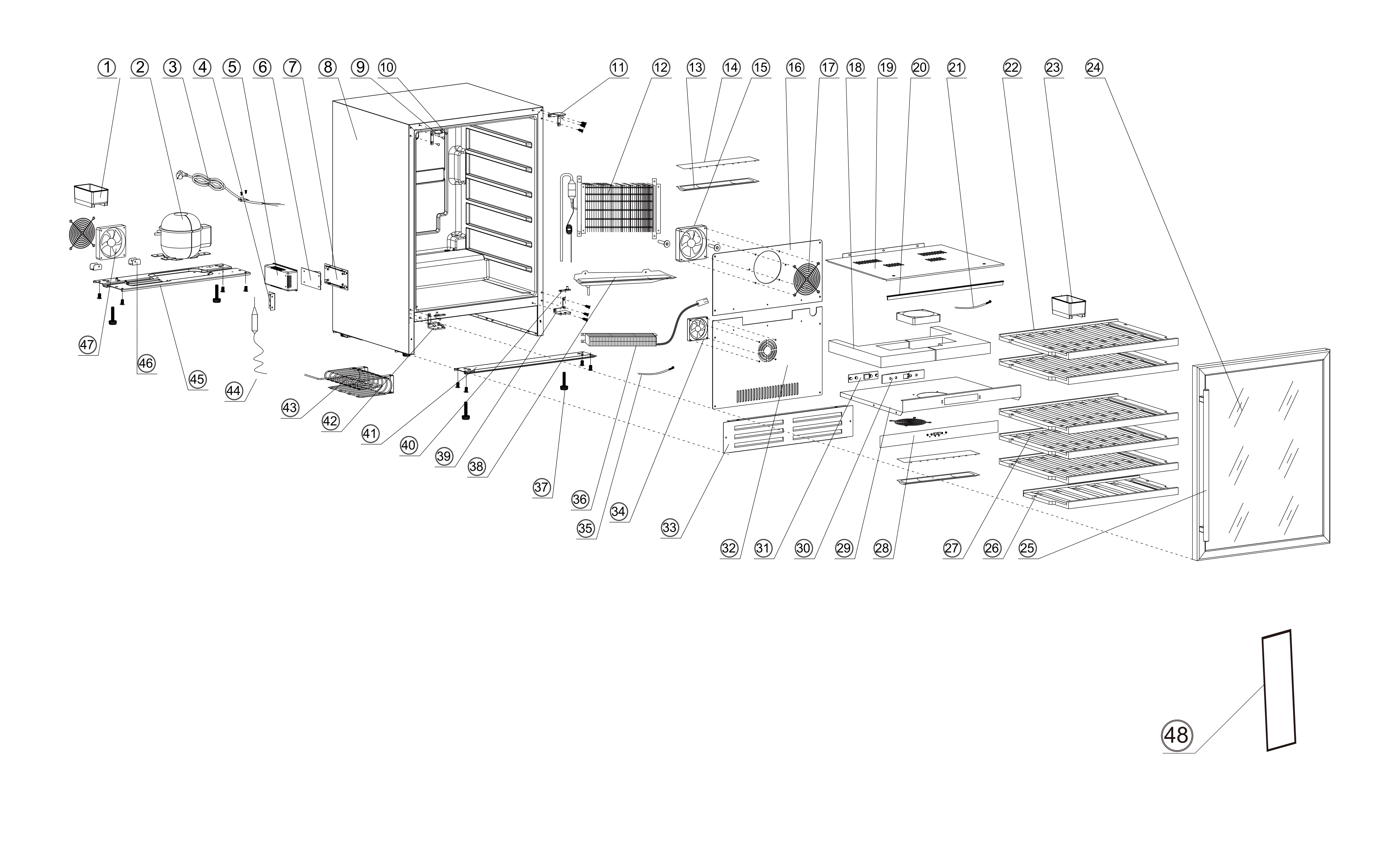

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.01.1170
Water Tank | Not Available | ||
| 2 | 3.02.06.1245
Compressor | Low Stock | Contact Us | |
| 3 | 3.02.05.0838
Power Cord | In Stock | 10.99 | |
| 4 | 6.2.1.116006A
PCB Bracket | Not Available | ||
| 5 | 3.02.01.1460B
PCB Box | Low Stock | Contact Us | |
| 6 | 3.02.05.1408T
Power PCB | Not Available | ||
| 7 | 3.02.01.0262A
PCB Base | Not Available | ||
| 8 | 2.02.01.2517
Cabinet | Not Available | ||
| 9 | 3.02.08.2732
LF Upper Hinge | Low Stock | 6.99 | |
| 10 | 3.02.07.0111A
Screw | Not Available | ||
| 11 | 3.02.08.2101
RT Upper Hinge | Low Stock | 6.99 | |
| 12 | 3.02.06.0354
Evaporator | Not Available | ||
| 13 | 3.02.01.0864A
Lamp Cover | In Stock | Contact Us | |
| 14 | 3.02.05.0096
Lamp PCB | In Stock | 4.99 | |
| 15 | 3.02.05.1157
Inner Fan | Low Stock | Contact Us | |
| 16 | 3.02.01.3331
Upper Air Duct | Not Available | ||
| 17 | 3.02.02.0090
Fan Guard | In Stock | 10.99 | |
| 18 | 3.02.03.6853
Spacer Polyfoam | Not Available | ||
| 19 | 3.02.08.0193
Spacer Cover | Not Available | ||
| 20 | 3.02.01.0267
Spacer Fixed Strip | Not Available | ||
| 21 | 3.02.05.0100F
Sensor | In Stock | Contact Us | |
| 22 | 3.02.02.2754
Top Shelf | In Stock | Contact Us | |
| 23 | 3.02.01.0264
Water Drip Tray | On Order | 5.99 | |
| 24 | 2.02.06.2087
Glass Door | Low Stock | 99.99 | |
| 25 | 3.02.02.0273A
S/S Handle | Not Available | ||
| 26 | 3.02.02.2752
Bottom Shelf | In Stock | Contact Us | |
| 27 | 3.02.02.2753
Middle Shelf | In Stock | Contact Us | |
| 28 | 3.02.03.A451
Control Panel Sticker | In Stock | Contact Us | |
| 29 | 3.02.08.1043
Spacer Base | Not Available | ||
| 30 | 3.02.01.0236A
Control PCB Supporter | Not Available | ||
| 31 | 3.02.05.1880T
Control PCB | Low Stock | Contact Us | |
| 32 | 3.02.01.3332
Lower Air Duct | Not Available | ||
| 33 | 3.02.08.2754
Base Grille | In Stock | 19.50 | |
| 34 | 3.02.05.0045
PTC heating element | Low Stock | 32.99 | |
| 35 | 3.01.05.0189
Small Interior Fan | Low Stock | 19.99 | |
| 36 | 3.02.01.0452
Foot | In Stock | 6.99 | |
| 37 | 3.02.01.1170
Water Drip Tray | Not Available | ||
| 38 | 3.02.08.0865
RT Lower Hinge | Low Stock | 6.99 | |
| 39 | 3.02.02.3580A
Door Shaft Assembly | Not Available | ||
| 40 | 3.02.08.1038
Bottom Bracket | Not Available | ||
| 41 | 3.02.08.0866
LF Lower Hinge | In Stock | 6.99 | |
| 42 | 3.02.06.0128
Condenser | Not Available | ||
| 43 | 3.02.06.0325
Dry Filter | Not Available | ||
| 44 | 3.02.08.2143
Compressor Base | Not Available | ||
| 45 | 3.02.08.2086
Fan Supporter | In Stock | 3.50 | |
| 46 | 3.02.05.1157
Outer Fan | Low Stock | Contact Us | |
| 47 | 3.02.01.1065A
Door seal code | Low Stock | 17.99 | |
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
46
46
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
50kg
50kg
Weight Unpacked
45kg
45kg
Noise Level
44dB
44dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
| Awaiting Information |
