H870xW595xD570 Under Counter Wine Cooler (Eco Design)
WRWC60BKED

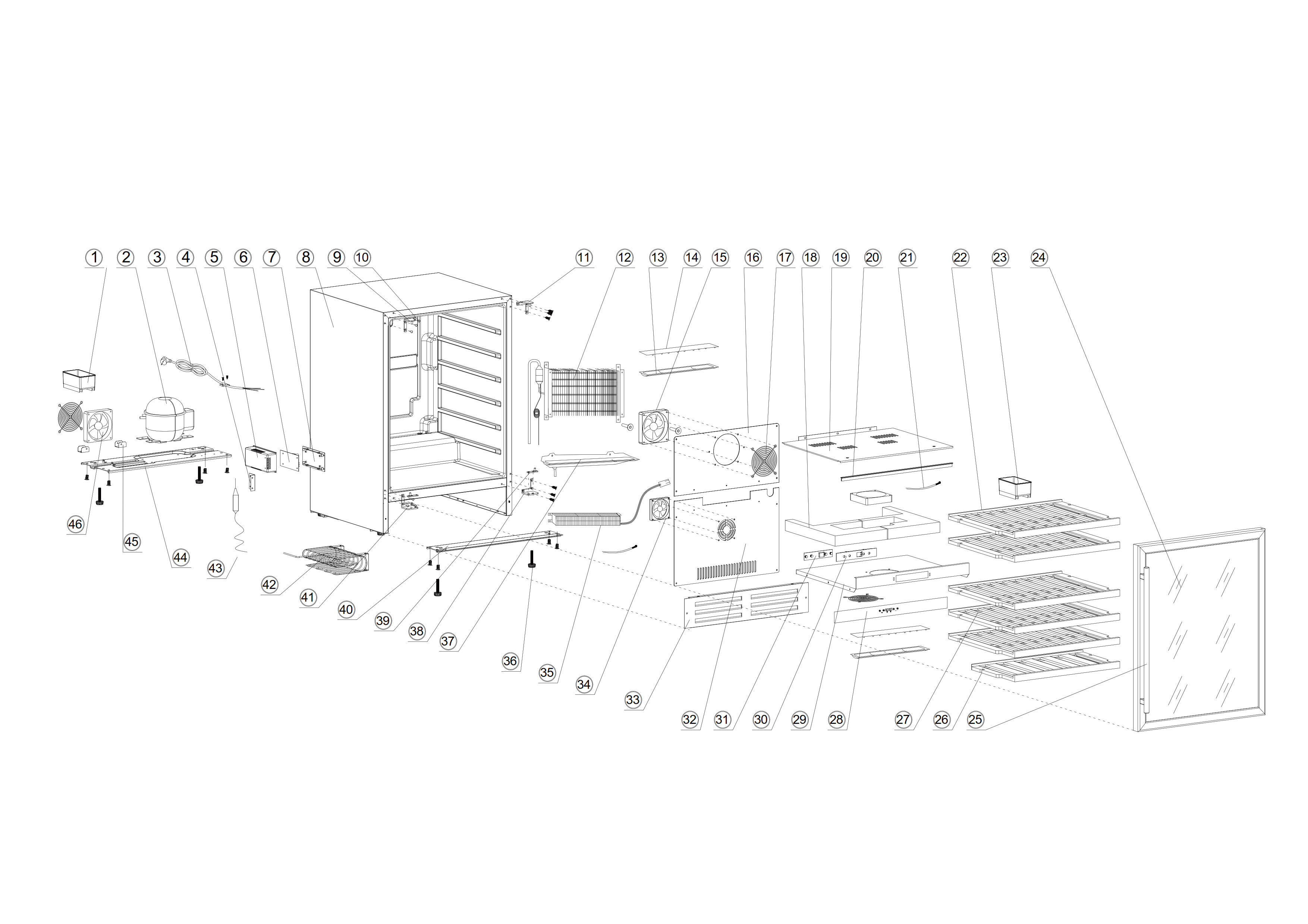

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.01.1170
WATER TANK | Not Available | ||
| 2 | 3.02.06.0876
COMPRESSOR | Low Stock | Contact Us | |
| 3 | 3.02.05.1491
POWER CORD | Low Stock | Contact Us | |
| 4 | 6.2.1.116006A
PCB BRACKET | Not Available | ||
| 5 | 3.02.01.1460B
PCB BOX | Low Stock | Contact Us | |
| 6 | 3.02.05.1408
POWER PCB | In Stock | 59.99 | |
| 7 | 3.02.01.0262A
PCB BASE | In Stock | 5.99 | |
| 8 | 2.02.01.2517
CABINET | Not Available | ||
| 9 | 3.02.01.2474
HOLE BLOCKAGE | In Stock | Contact Us | |
| 10 | 3.02.01.1128A
SHELF LIMIT COLUMN | Not Available | ||
| 11 | 3.02.02.1915
FIXED BRACKET | Low Stock | 4.99 | |
| 12 | 3.02.02.0397C
RT UPPER HINGE | In Stock | Contact Us | |
| 12 | 3.02.08.2101
RT UPPER HINGE | Low Stock | Contact Us | |
| 13 | 3.02.06.0354
EVAPORATOR | Not Available | ||
| 14 | 3.02.01.0864A
LAMP COVER | Not Available | ||
| 15 | 3.02.05.0096
LAMP PCB | In Stock | 4.99 | |
| 16 | 3.02.05.0179B
INNER FAN | Low Stock | 19.99 | |
| 17 | 3.02.08.0456A
UPPER AIR DUCT | Not Available | ||
| 18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 19 | 3.02.03.6853
SPACER POLYFOAM | Not Available | ||
| 20 | 3.02.08.0193
SPACER COVER | Not Available | ||
| 21 | 3.02.01.0267
SPACER FIXED STRIP | Not Available | ||
| 22 | 3.02.05.0100B
SENSOR | In Stock | 11.99 | |
| 23 | 3.02.01.0264
WATER DRIP TRAY | In Stock | 5.99 | |
| 24 | 3.02.02.2754
TOP SHELF | In Stock | Contact Us | |
| 25 | 2.02.06.1809
GLASS DOOR | In Stock | 59.99 | |
| 26 | 3.02.02.0273A
S/S HANDLE | On Order | 14.99 | |
| 27 | 3.02.01.1065A
DOOR SEAL | Low Stock | 17.99 | |
| 28 | 3.02.02.2752
BOTTOM SHELF | In Stock | Contact Us | |
| 29 | 3.02.02.2753
MIDDLE SHELF | In Stock | Contact Us | |
| 30 | 3.02.03.A451
CONTROL PANEL STICKER | In Stock | Contact Us | |
| 31 | 3.02.08.1043
SPACER BASE | Not Available | ||
| 32 | 3.02.01.0236A
CONTROL PCB | Not Available | ||
| 33 | 3.02.05.1541
CONTROL PCB | In Stock | Contact Us | |
| 34 | 3.02.08.0458A
LOWER AIR DUCT | Not Available | ||
| 35 | 3.02.08.2754
BASE GRILLE | In Stock | 19.50 | |
| 36 | 3.01.05.0189
SMALL INTERIOR FAN | Not Available | ||
| 37 | 3.02.05.0045
PTC HEATING ELEMENT | In Stock | 32.99 | |
| 38 | 3.02.01.0452
FOOT | In Stock | 6.99 | |
| 39 | 3.02.01.1170
WATER DRIP TRAY | Not Available | ||
| 40 | 3.02.08.0865
RT LOWER HINGE | Not Available | ||
| 41 | 3.02.08.1038
BOTTOM BRACKET | Not Available | ||
| 42 | 3.02.06.0128
CONDENSER | Low Stock | Contact Us | |
| 43 | 3.02.06.0325
DRY FILTER | In Stock | Contact Us | |
| 44 | 3.02.06.1123
COMPRESSOR FREQUENCY CONVERSION BOX | Not Available | ||
| 45 | 3.02.08.2143
COMPRESSOR BASE | Not Available | ||
| 46 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
| 47 | 3.02.05.0181A
OUTER FAN | In Stock | Contact Us | |
| 48 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
Product Design
- Colour: Black
- Fitting: Free Standing Under Counter
- Touch Controls
- UV Protected Double Glazed Door
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
46
46
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
50kg
50kg
Weight Unpacked
45kg
45kg
Noise Level
44dB
44dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our larger capacity 600mm Wine Cooler you can store up to 46 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
