300MM STAINLESS STEEL WINE COOLER (ECO DESIGN MODEL)
WRWC30SSED.3

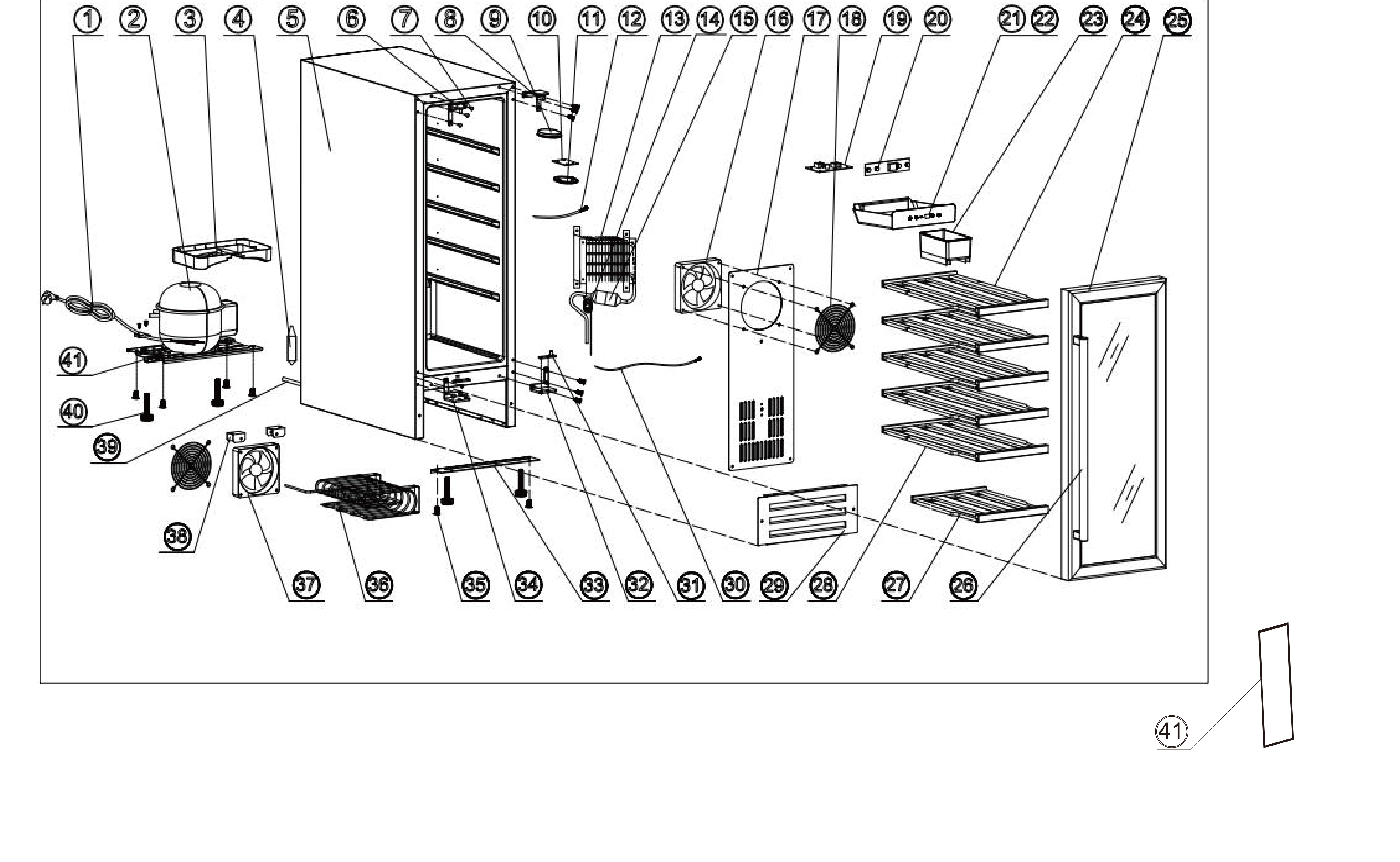

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.05.0838
UK POWER CORD | In Stock | 10.99 | |
| 2 | 3.02.06.1248
COMPRESSOR | Not Available | ||
| 3 | 3.02.01.1509A
WATER DRIP TRAY | Low Stock | 14.99 | |
| 4 | 3.02.01.1509A
DRY FILTER | Low Stock | 14.99 | |
| 5 | 2.02.01.2548
CABINET | Not Available | ||
| 6 | 3.02.08.2732
LEFT UPPER HINGE | Low Stock | 6.99 | |
| 7 | 3.02.01.2474
DECORATION PLUG | In Stock | 3.99 | |
| 8 | 3.02.08.2101
RIGHT UPPER HINGE | Low Stock | 6.99 | |
| 9 | 3.01.01.0050B
LIGHT BASE | Not Available | ||
| 10 | 3.01.05.0072
LED LIGHT | In Stock | 12.99 | |
| 11 | 3.01.01.0048A
LIGHT COVER | Not Available | ||
| 12 | 3.02.05.0100B
AIR THERMISTOR | Not Available | ||
| 13 | 3.02.06.0285
EVAPORATOR_ACCUMULATOR_CAPILLARY | Not Available | ||
| 16 | 3.02.05.0179B
INTERIOR FAN MOTOR | Not Available | ||
| 17 | 3.02.08.0001A
AIR DUCT | Low Stock | 19.99 | |
| 18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 19 | 3.02.05.1408B
POWER PCB | Not Available | ||
| 20 | 3.02.05.1621
CONTROL PCB | In Stock | 39.99 | |
| 21 | 3.02.01.3523
ELECTRICAL BOX | Low Stock | 14.99 | |
| 22 | 3.02.03.A240A
FILM | Not Available | ||
| 23 | 3.02.01.1294A
WATER TANK | Low Stock | 9.99 | |
| 24 | 3.02.02.0204C
TOP WOODEN SHELF | In Stock | 17.49 | |
| 25 | 3.02.09.1499
STAINLESS STEEL GLASS DOOR | Low Stock | 54.99 | |
| 26 | 3.02.02.0273A
STAINLESS STEEL HANDLE | Not Available | ||
| 27 | 3.02.02.0360C
BOTTOM WOODEN SHELF | Not Available | ||
| 28 | 3.02.02.0206C
MIDDLE WOODEN SHELF | In Stock | 17.49 | |
| 29 | 3.02.08.2753
BASE GRILLE | In Stock | 19.99 | |
| 30 | 3.02.02.1849A
DOOR SHAFT ASSEMBLY | Low Stock | 4.99 | |
| 31 | 3.02.08.0865
RIGHT LOWER HINGE | Low Stock | 6.99 | |
| 32 | 3.02.08.0126A
BOTTOM BRACKET | In Stock | 7.49 | |
| 33 | 3.02.08.0866
LEFT LOWER HINGE | In Stock | 6.99 | |
| 34 | 3.02.07.0032A
BOLT M8*12 | Not Available | ||
| 35 | 3.02.06.0137
CONDENSER | Low Stock | 28.99 | |
| 36 | 3.02.05.0181A
EXTERIOR FAN MOTOR | In Stock | 20.99 | |
| 37 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
| 39 | 3.02.01.0452
LEVELING LEG | In Stock | 6.99 | |
| 40 | 3.02.08.0124
COMPRESSOR BASE | Not Available | ||
| 41 | 3.02.01.0301
DOOR SEAL | Low Stock | 9.99 | |
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
20
20
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
295x570870mm
295x570870mm
Dimensions Packed
325x630x910mm
325x630x910mm
Reversible Door
Yes
Yes
Weight Packed
32kg
32kg
Weight Unpacked
30kg
30kg
Noise Level
40dB
40dB
Connectivity Type
Cable with Plug
Cable with Plug
