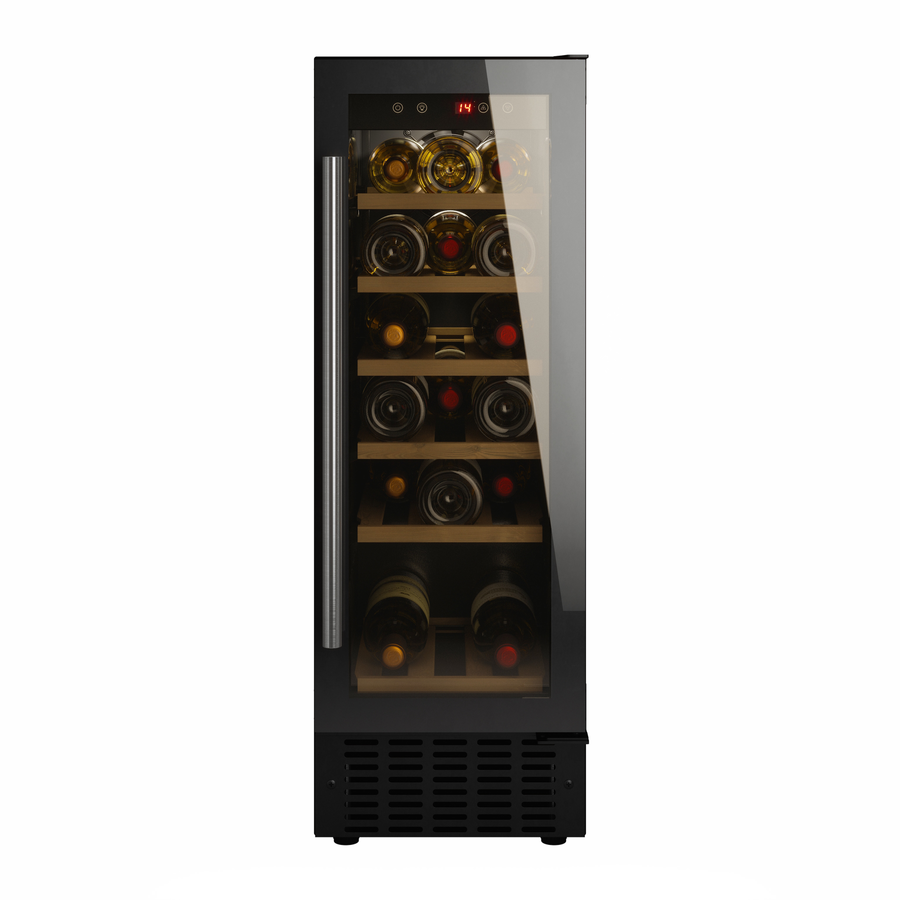

300MM BLACK WINE COOLER (ECO DESIGN MODEL)
WRWC30BKED.3

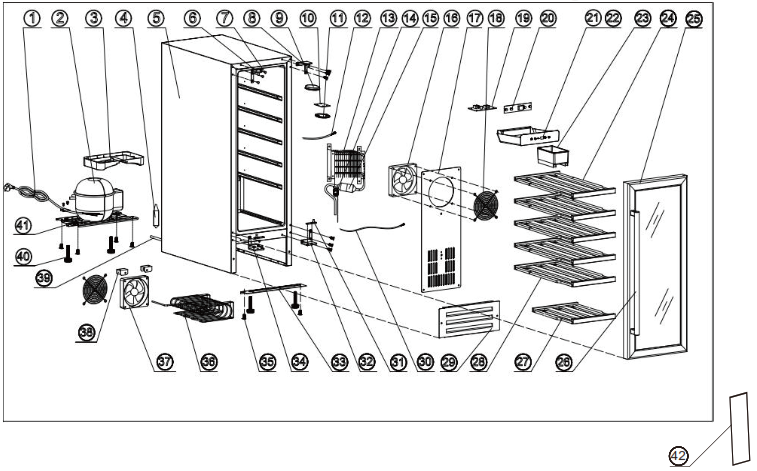

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 3.02.05.0838
UK Power Cord | Not Available | ||
| 2 | 3.02.06.1248
Compressor | Not Available | ||
| 3 | 3.02.01.1509A
Water Drip Tray | In Stock | 8.99 | |
| 4 | 3.02.06.0103
Dry Filter | In Stock | 20.99 | |
| 5 | 2.02.01.2548
Cabinet | Not Available | ||
| 6 | 3.02.08.2732
Left Upper Hinge | Low Stock | 6.99 | |
| 7 | 3.02.01.2474
Decoration Plug | In Stock | 3.99 | |
| 8 | 3.02.08.2101
Right Upper Hinge | Low Stock | 6.99 | |
| 9 | 3.01.01.0050B
Light Base | Not Available | ||
| 10 | 3.01.05.0072
LED Light | In Stock | 12.99 | |
| 11 | 3.01.01.0048A
Light Cover | In Stock | 4.99 | |
| 12 | 3.02.05.0100B
Air Thermistor | In Stock | 11.99 | |
| 13 | 3.02.06.0285
Evaporator_Accumulator_Capillary | Not Available | ||
| 16 | 3.02.05.0179B
Interior Fan Motor | Low Stock | 19.99 | |
| 17 | 3.02.08.0001A
Air Duct | Low Stock | 19.99 | |
| 18 | 3.02.02.0090
Fan Guard | In Stock | 10.99 | |
| 19 | 3.02.05.1408B
Power PCB | Low Stock | 62.99 | |
| 20 | 3.02.05.1621
Control PCB | In Stock | 39.99 | |
| 21 | 3.02.01.3523
Electrical Box | Low Stock | 14.99 | |
| 22 | 3.02.03.A240A
Film | Not Available | ||
| 23 | 3.02.01.1294A
Water Tank | Low Stock | 9.99 | |
| 24 | 3.02.02.0204C
Top Wooden Shelf | In Stock | 17.49 | |
| 25 | 3.02.09.1498
Plastic Glass Door | In Stock | 69.99 | |
| 26 | 3.02.02.0273A
Stainless Steel Handle | Low Stock | 14.99 | |
| 27 | 3.02.02.0360C
Bottom Wooden Shelf | In Stock | 11.99 | |
| 28 | 3.02.02.0206C
Middle Wooden Shelf | In Stock | 17.49 | |
| 29 | 3.02.08.2753
Base Grille | In Stock | 19.99 | |
| 30 | 3.02.02.1849A
Door Shaft Assembly | Low Stock | 4.99 | |
| 31 | 3.02.08.0865
Right Lower Hinge | In Stock | 6.99 | |
| 32 | 3.02.08.0126A
Bottom Bracket | In Stock | 7.49 | |
| 33 | 3.02.08.0866
Left Lower Hinge | In Stock | 6.99 | |
| 34 | 3.02.07.0032A
Bolt M8*12 | Not Available | ||
| 35 | 3.02.06.0137
Condenser | Low Stock | 28.99 | |
| 36 | 3.02.05.0181A
Exterior Fan Motor | In Stock | 20.99 | |
| 37 | 3.02.08.2086
Fan Supporter | In Stock | 3.50 | |
| 39 | 3.02.01.0453
Leveling Leg | In Stock | 4.99 | |
| 40 | 3.02.08.0125
Compressor Base | Low Stock | 13.99 | |
| 41 | 3.02.01.0302
Door seal | Low Stock | 7.49 | |
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
20
20
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
295x570x870mm
295x570x870mm
Dimensions Packed
325x630x910mm
325x630x910mm
Reversible Door
Yes
Yes
Weight Packed
32kg
32kg
Weight Unpacked
30kg
30kg
Noise Level
40dB
40dB
Connectivity Type
Cable with Plug
Cable with Plug
