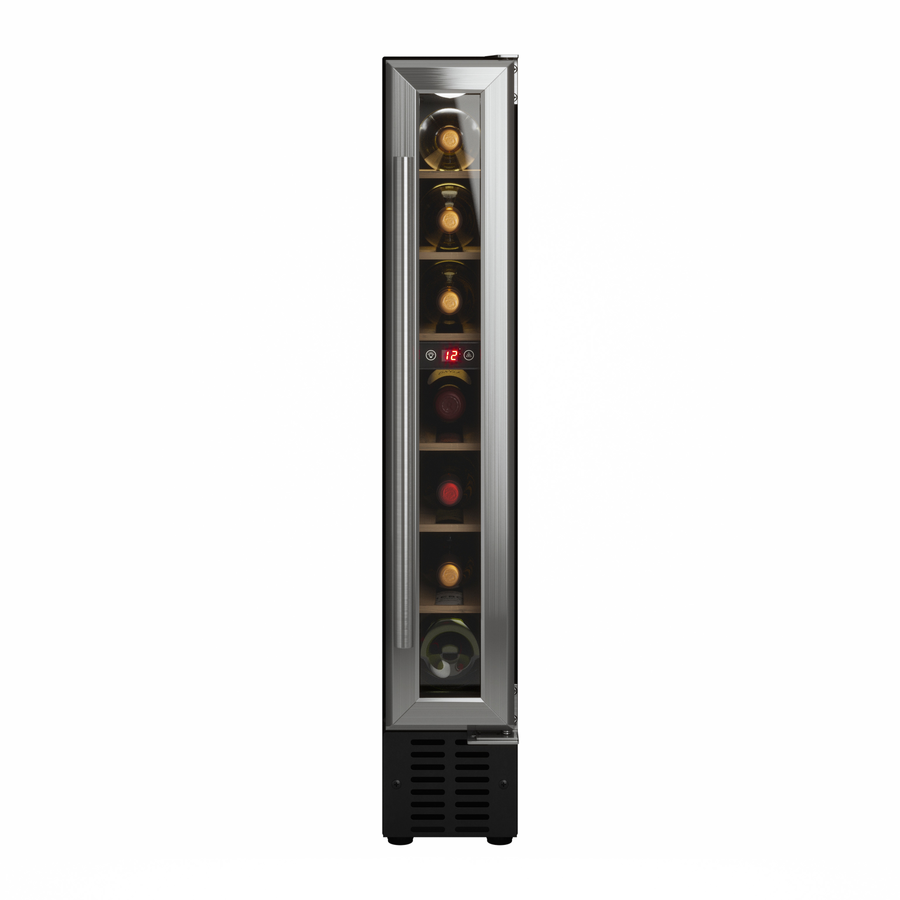

H870xW148xD570 Under Counter Wine Cooler
WRWC15SS

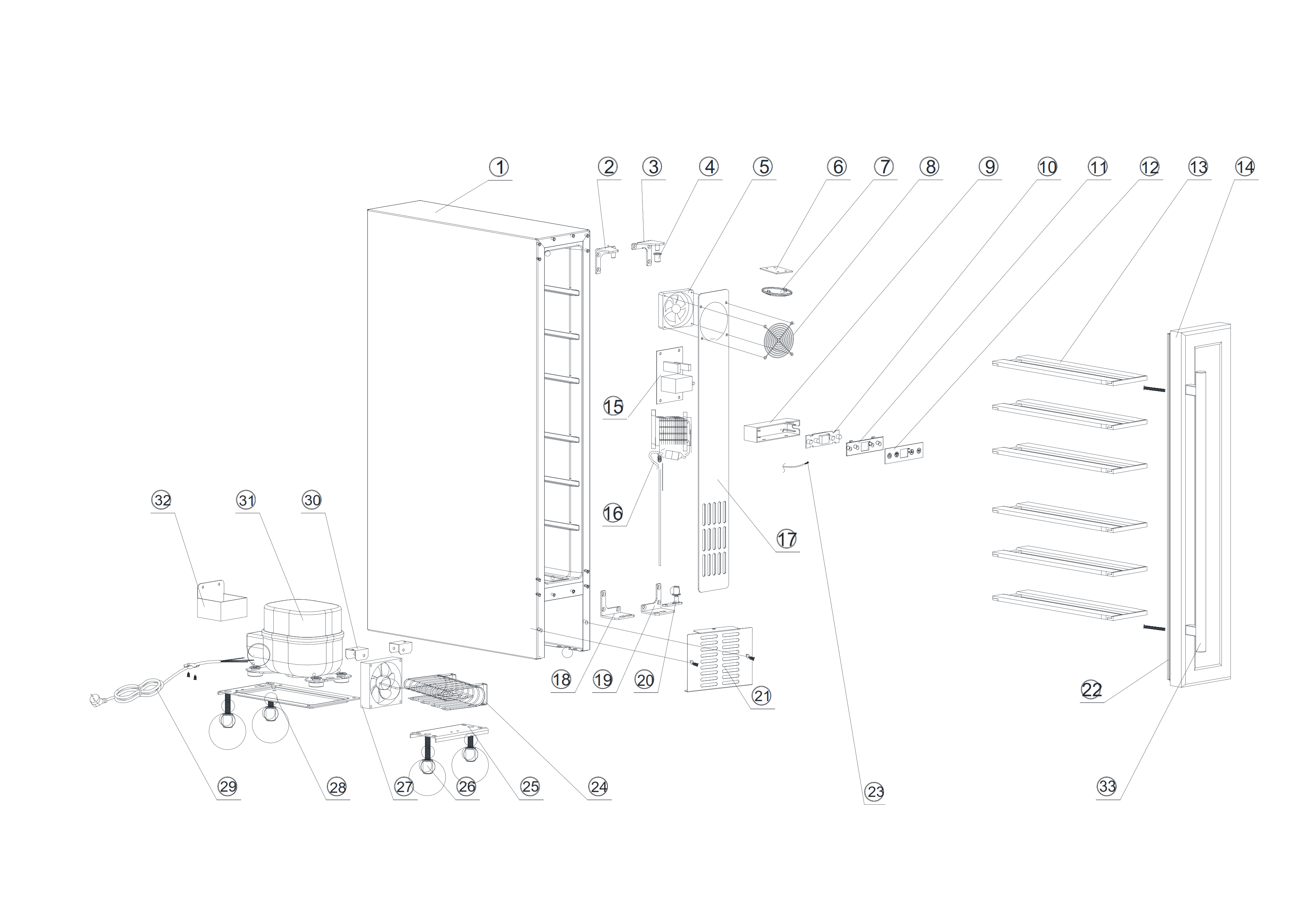

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.02.01.0507
CABINET | Not Available | ||
| 2 | 3.02.02.0104
LF UPPER HINGE | Low Stock | 6.99 | |
| 3 | 3.02.02.0101
RT UPPER HINGE | In Stock | 6.99 | |
| 4 | 3.02.01.0191
DOOR HINGE COVER | In Stock | 6.99 | |
| 5 | 3.01.05.0191
INNER FAN | Low Stock | 20.99 | |
| 6 | 3.01.05.0071
LAMP PCB | In Stock | 13.99 | |
| 7 | 3.01.01.0048
LAMP COVER | In Stock | 9.99 | |
| 8 | 3.02.02.0167
FAN GUARD | In Stock | 6.99 | |
| 9 | 3.01.01.0812
CONTROL PANEL BOX 2012 | In Stock | 13.99 | |
| 10 | 3.02.05.0338
CONTROL PCB | Not Available | ||
| 11 | 3.01.01.0850
CONTROL PANEL COVER | Low Stock | 13.99 | |
| 12 | 3.01.03.3430
CONTROL PANEL STICKER | Low Stock | 10.99 | |
| 13 | 3.02.02.0870A
WOODEN SHELF | Not Available | ||
| 14 | 3.02.09.0623
GLASS DOOR | Low Stock | Contact Us | |
| 15 | 3.02.05.0261
POWER PCB | In Stock | 34.99 | |
| 16 | 3.02.06.0303
EVAPORATOR | Not Available | ||
| 17 | 3.02.08.0648
AIR DUCT | Not Available | ||
| 18 | 3.02.02.0102
RT LOWER HINGE | In Stock | 6.99 | |
| 19 | 3.02.02.0105
LF LOWER HINGE | Low Stock | 6.99 | |
| 20 | 3.02.02.0103
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | |
| 21 | 3.02.08.1842
VENTILATION COVER | In Stock | Contact Us | |
| 22 | 3.01.01.0198
MAGNETIC DOOR SEAL | In Stock | 22.99 | |
| 23 | 3.02.05.0100
SENSOR | In Stock | 10.99 | |
| 24 | 3.02.06.0219
CONDENSER | Not Available | ||
| 25 | 3.02.08.0811
BOTTOM BRACKET | Not Available | ||
| 26 | 3.02.01.0452
FOOT | In Stock | 6.99 | |
| 27 | 3.02.05.0343
OUTER FAN | Not Available | ||
| 28 | 3.02.08.0830
COMPRESSOR BASE | Not Available | ||
| 29 | 3.02.05.0040
POWER CORD | Low Stock | 6.99 | |
| 30 | 3.02.02.0096
FAN SUPPORTER | In Stock | 13.99 | |
| 31 | 3.02.06.0262
COMPRESSOR | Low Stock | 86.99 | |
| 32 | 3.02.08.0681
WATER TANK | In Stock | 5.99 | |
| 33 | 3.02.02.0367
S/S HANDLE | In Stock | 16.99 | |
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
B
B
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
7
7
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
148x520x870mm
148x520x870mm
Dimensions Packed
190x570x890mm
190x570x890mm
Reversible Door
Yes
Yes
Weight Packed
20.5kg
20.5kg
Weight Unpacked
18.5kg
18.5kg
Noise Level
39dB
39dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our slim line 150mm Wine Cooler you can store up to 7 bottles of your favourite wine and the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
