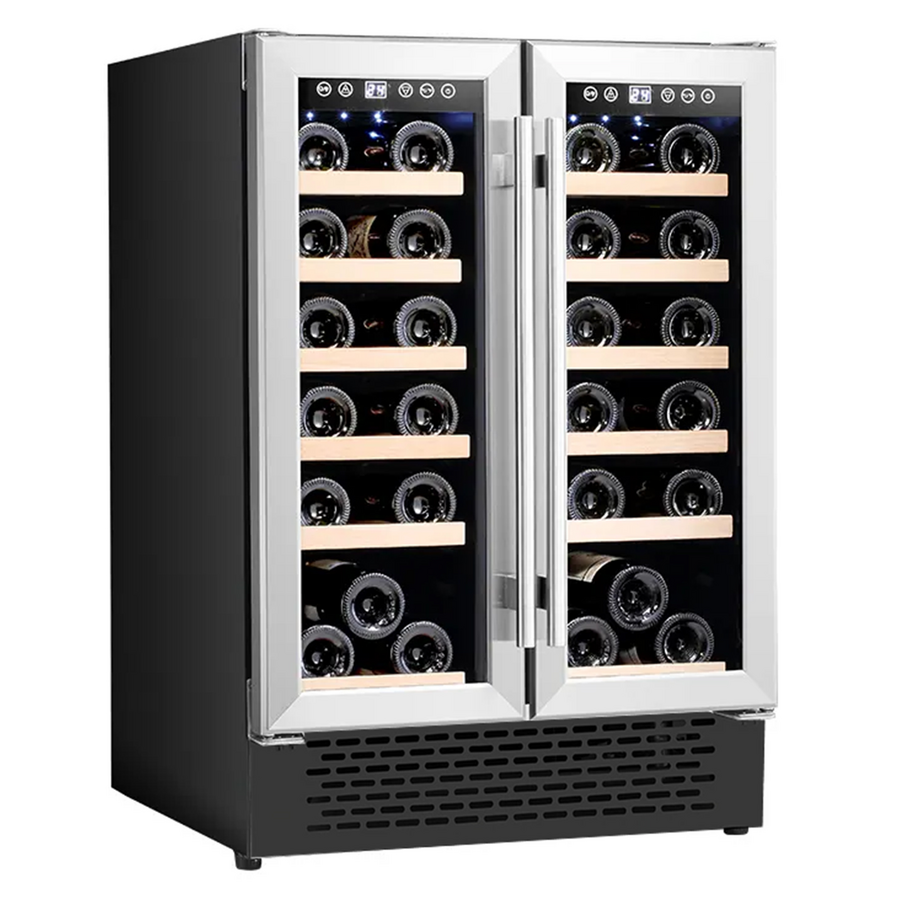

60CM TWIN DOOR S/STEEL BUILT UNDER WINE COOLER
WRSSWC60DD

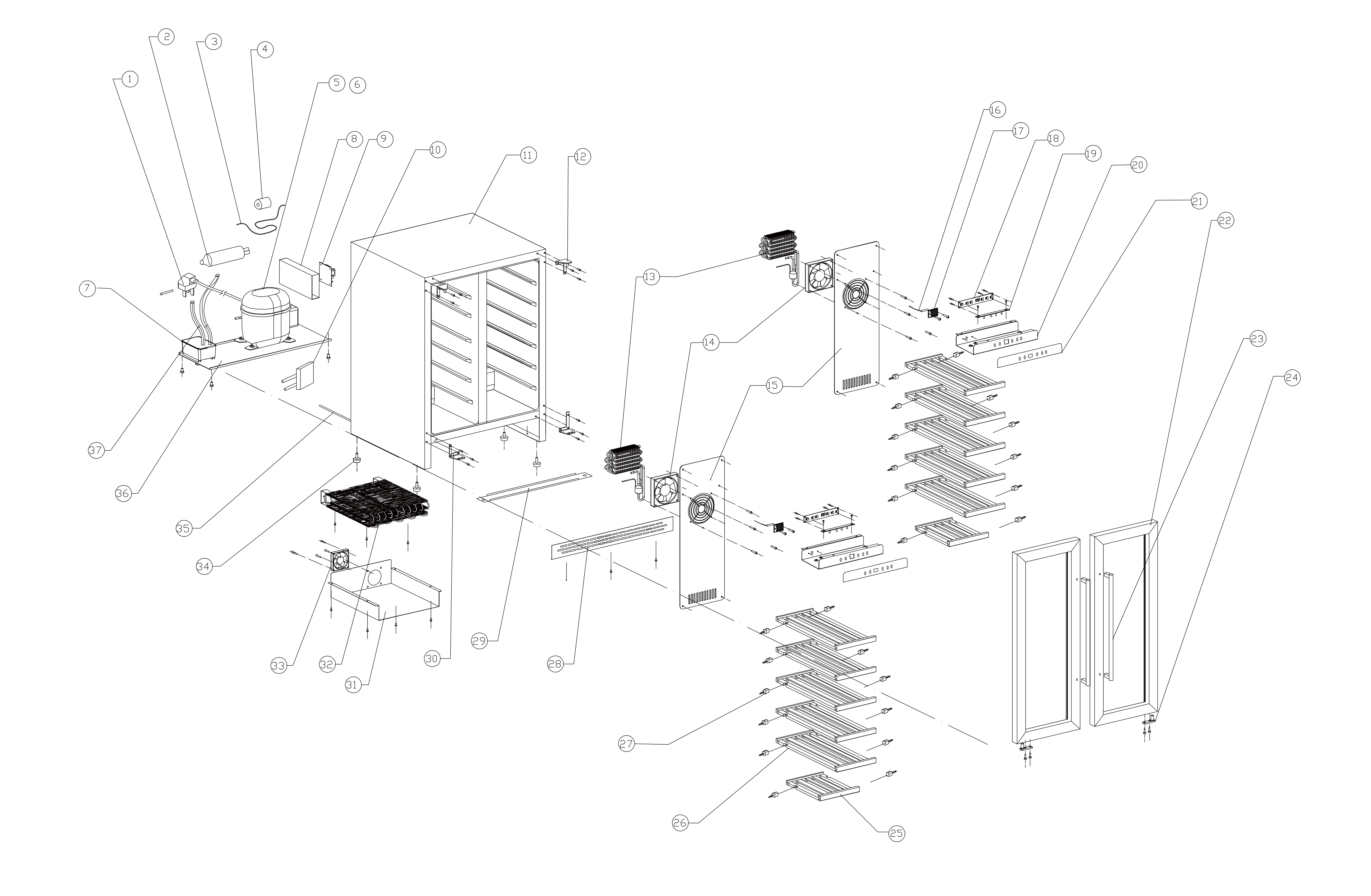

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| -1 | 1.3.0220.0041
POWER CORD | Low Stock | 12.49 | |
| -10 | 1.3.0420.0187
SOLENOID VALVE | In Stock | Contact Us | |
| -12 | 1.1.0520.0572
RIGHT UPPER HINGE | Low Stock | 12.49 | |
| -12 | 1.1.0520.0574
RIGHT LOWER HINGE | Low Stock | 5.99 | |
| -13 | 1.1.0220.0210
EVAPORATOR | Not Available | ||
| -14 | 1.3.0620.0001
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| -15 | 1.2.0220.0024
AIR DUCT | Not Available | ||
| -16 | 1.3.0320.0267
TEMPERATURE SENSOR | In Stock | Contact Us | |
| -17 | 1.2.0520.0022
TEMPERATURE SENSOR COVER | Low Stock | 3.99 | |
| -18 | 1.3.0420.0097
CONTROL PCB - A | Not Available | ||
| -18 | 1.3.0420.0098
CONTROL PCB - B | Not Available | ||
| -19 | 1.3.0520.0024
LED LAMP BOARD | In Stock | 8.99 | |
| -2 | 1.1.0220.0065
DRY FILTER | Low Stock | Contact Us | |
| -20 | 1.2.0620.0021
ELECTRICAL BOX | Low Stock | Contact Us | |
| -21 | 1.6.0720.0275
CONTROL PANEL STICKER | In Stock | Contact Us | |
| -22 | 1.2.0320.0092
DOOR SEAL | Low Stock | Contact Us | |
| -22 | 1.4.0320.0591
GLASS DOOR ASSY | Low Stock | Contact Us | |
| -23 | 1.1.0720.0001
HANDLE | Low Stock | 16.99 | |
| -24 | 1.1.0520.0004
DOOR SHAFT ASSEMBLY | In Stock | 3.99 | |
| -25 | 1.5.0120.0075
BOTTOM SHELF | In Stock | Contact Us | |
| -26 | 1.5.0120.0074
WOODEN SHELF | In Stock | 19.99 | |
| -27 | 1.2.0520.0038
SHELF LIMIT COLUMN | Low Stock | 3.99 | |
| -28 | 1.1.0320.0383
BASE GRILLE | Not Available | ||
| -29 | 1.1.0320.0065
BOTTOM BRACKET | Not Available | ||
| -3 | 1.1.0220.0249
CAPILLARY | Not Available | ||
| -30 | 1.1.0520.0573
LEFT UPPER HINGE | Low Stock | Contact Us | |
| -30 | 1.1.0520.0575
LEFT LOWER HINGE | Low Stock | 5.99 | |
| -31 | 1.1.0320.0025
CONDENSER COVER | Not Available | ||
| -32 | 1.1.0220.0025
CONDENSER | Not Available | ||
| -33 | 1.3.0620.0014
EXTERIOR FAN MOTOR | In Stock | 19.99 | |
| -34 | 1.2.0520.0003
LEVELING LEG | In Stock | 3.99 | |
| -35 | 1.1.0220.0079
SUCTION PIPE | Not Available | ||
| -36 | 1.1.0320.0181
COMPRESSOR BASE | Not Available | ||
| -37 | 1.1.0220.0007
EXHAUST PIPE | Not Available | ||
| -4 &5& 6 | 1.3.0100.0063
COMPRESSOR ASSY | On Order | 60.00 | |
| -7 | 1.2.0520.0024
WATER DRIP TRAY | Low Stock | 3.99 | |
| -8 | 1.2.0520.0011
POWER BOARD PROTECTIVE COVER | Low Stock | 4.99 | |
| -9 | 1.3.0420.0090
POWER BOARD | In Stock | Contact Us | |
Technical Specifications
Energy Rating
Display Type
Temperature Controls
Interior Light
Shelf Type
Adjustable Shelves
Bottle Capacity
Temperature Range
Dimensions Unpacked
Dimensions Packed
Reversible Door
Weight Packed
Weight Unpacked
Noise Level
Connectivity Type
Description
