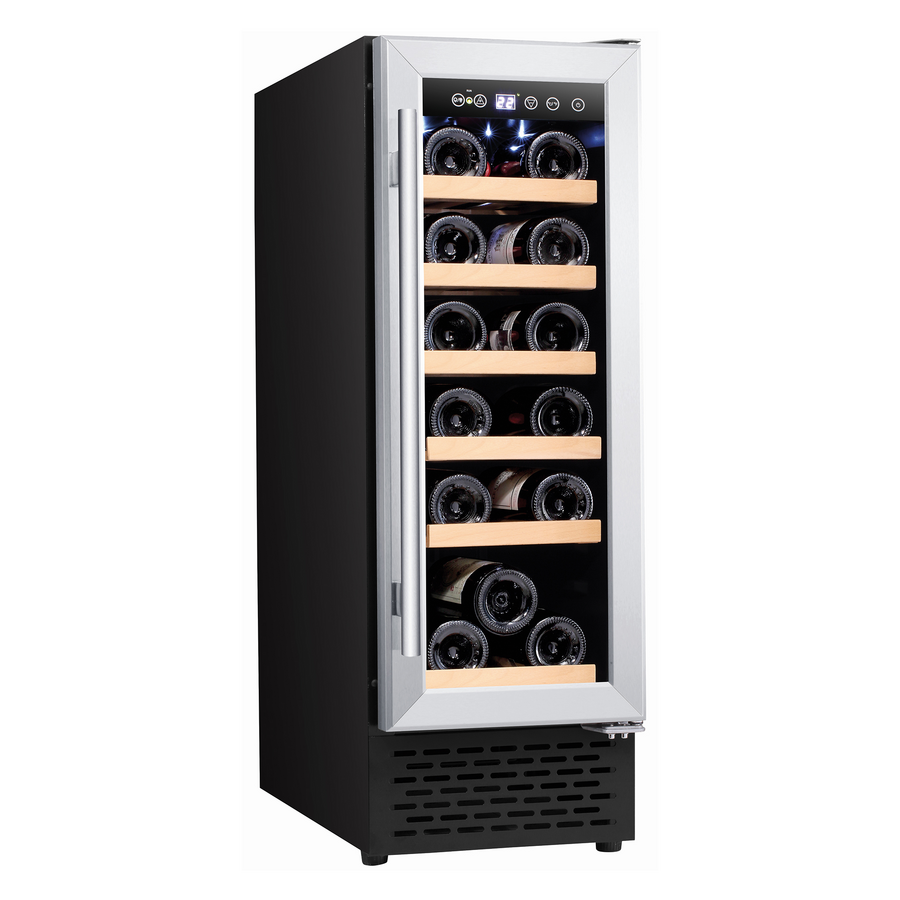

30CM STAINLESS STEEL WINE COOLER (F RATED)
WRSSWC30F

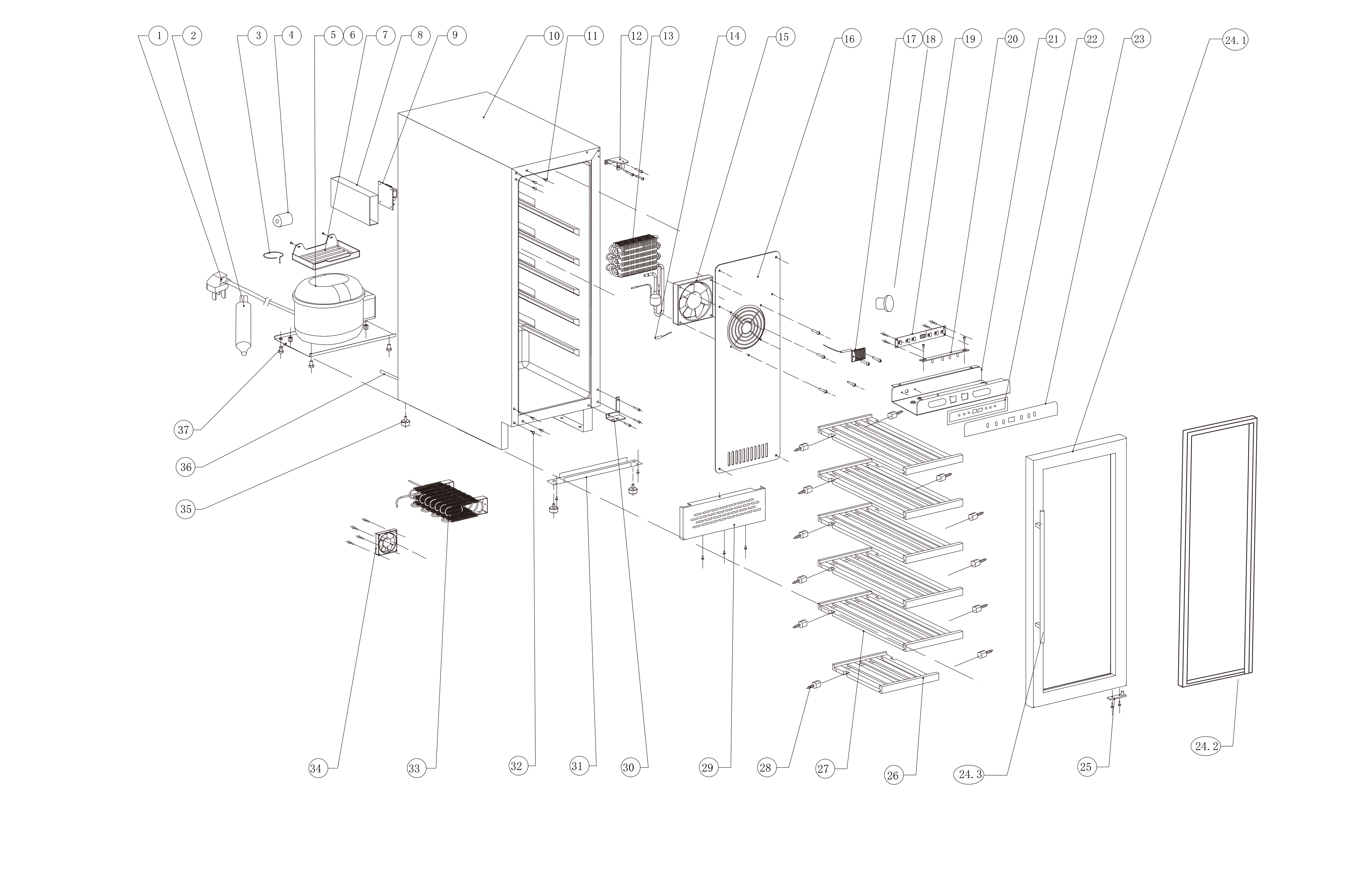

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1.1.0520.0611
LEFT ULOWER HINGE | Not Available | |||
| Accessory | 1.1.0520.0205
LEFT UPPER HINGE | Not Available | ||
| 1 | 1.3.0220.0040
POWER CORD | In Stock | 11.99 | |
| 2 | 1.1.0220.0062
DRY FILTER | In Stock | 10.99 | |
| 3 | 1.1.0220.0070
CAPILLARY | Not Available | ||
| 4&5&6 | 1.3.0100.0057
COMPRESSOR ASSY | Low Stock | Contact Us | |
| 7 | 1.2.0520.0027
WATER DRIP TRAY | In Stock | 5.99 | |
| 8 | 1.2.0520.0047
POWER BOARD PROTECTIVE COVER | Low Stock | 3.99 | |
| 9 | 1.3.0420.0096
POWER BOARD | In Stock | 45.99 | |
| 11&32 | 1.2.0520.0029
DECORATION PLUG | Low Stock | 3.99 | |
| 12 | 1.1.0520.0204
RIGHT UPPER HINGE | Not Available | ||
| 13 | 1.1.0220.0210
EVAPORATOR | Not Available | ||
| 14 | 1.3.0320.0274
AIR THERMISTOR | In Stock | 11.99 | |
| 15 | 1.3.0620.0001
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| 16 | 1.2.0220.0024
AIR DUCT | Not Available | ||
| 17 | 1.2.0520.0022
AIR THERMISTOR COVER | Low Stock | 3.99 | |
| 18 | 1.2.0520.0402
FILTER CARBON BOX | Low Stock | 15.99 | |
| 19 | 1.3.0420.0010
CONTROL PCB | Low Stock | Contact Us | |
| 20 | 1.3.0520.0024
LED LAMP BOARD | On Order | 8.99 | |
| 21&22 | 1.2.0620.0023
ELECTRICAL BOX | Low Stock | Contact Us | |
| 23 | 1.6.0720.0268
CONTROL PANEL STICKER | Low Stock | Contact Us | |
| 24.1 | 1.4.0320.0100
GLASS DOOR | Low Stock | Contact Us | |
| 24.2 | 1.2.0320.0020
DOOR SEAL | In Stock | 10.99 | |
| 24.3 | 1.1.0720.0061
HANDLE | Low Stock | Contact Us | |
| 25 | 1.1.0520.0004
DOOR SHAFT ASSEMBLY | In Stock | 3.99 | |
| 26 | 1.5.0120.0075
BOTTOM SHELF | In Stock | Contact Us | |
| 27 | 1.5.0120.0074
SHELF | In Stock | 19.99 | |
| 28 | 1.2.0520.0038
SHELF LIMIT COLUMN | Low Stock | 3.99 | |
| 29 | 1.1.0320.0384
BASE GRILLE | In Stock | 13.99 | |
| 30 | 1.1.0520.0607
RIGHT LOWER HINGE | Not Available | ||
| 31 | 1.1.0320.0066
BOTTOM BRACKET | Not Available | ||
| 33 | 1.1.0220.0021
CONDENSER | Not Available | ||
| 34 | 1.3.0620.0058
EXTERIOR FAN MOTOR | Not Available | ||
| 35 | 1.2.0520.0003
LEVELING LEG | Low Stock | 3.99 | |
| 36 | 1.1.0220.0095
SUCTION PIPE | Not Available | ||
| 37 | 1.1.0320.0442
COMPRESSOR BASE | Not Available | ||
Technical Specifications
Energy Rating
Display Type
Temperature Controls
Interior Light
Shelf Type
Adjustable Shelves
Bottle Capacity
Temperature Range
Dimensions Unpacked
Dimensions Packed
Reversible Door
Weight Packed
Weight Unpacked
Noise Level
Connectivity Type
Description
