15CM STAINLESS STEEL WINE COOLER
WRSSWC15

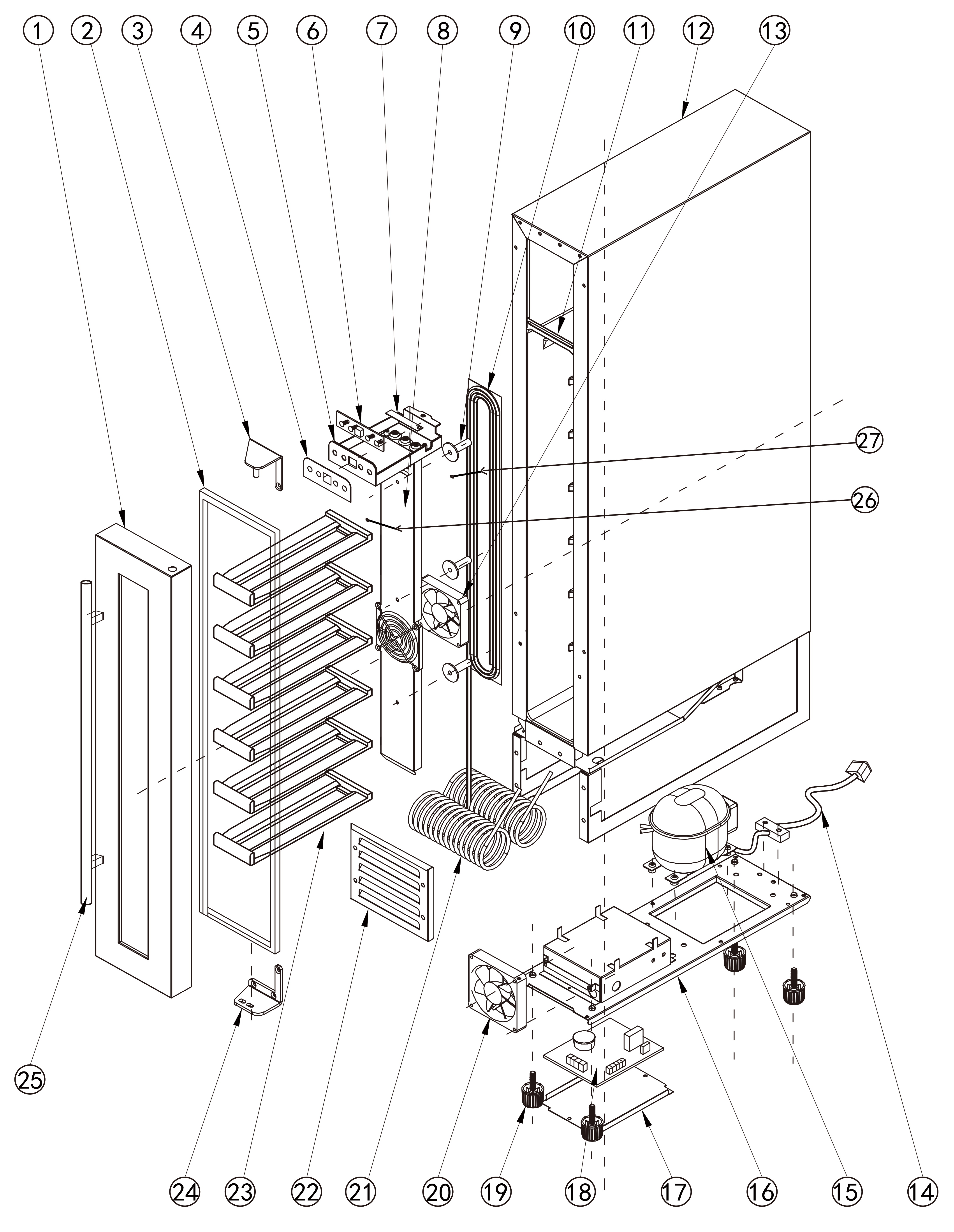

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| ACC-KIT-1 | 1.1.0520.0574
RIGHT LOWER HINGE | Low Stock | 5.99 | |
| ACC-KIT-2 | 1.1.0520.0575
LEFT LOWER HINGE | Low Stock | 5.99 | |
| ACC-KIT-3 | 1.2.0520.0029
HINGE SCREW HOLE PLUG (BLK) | Low Stock | 3.99 | |
| ACC-KIT-4 | 1.1.0900.0060
HINGE SCREW (EA) | In Stock | 3.99 | |
| 1 | 1.4.0320.0374
GLASS DOOR | Low Stock | 74.99 | |
| 1+2-25 | 69417515
COMPLETE DOOR ASSEMBLY (15CM) - SS | Not Available | ||
| 2 | 1.2.0320.0054
DOOR - GASKET | In Stock | 14.99 | |
| 3 | 1.1.0520.0011
UPPER HINGE - RIGHT (WAS 1.1.0520.0008) | In Stock | 6.99 | |
| 4 | 1.6.0720.0221
CONTROL PANEL SCREEN | Low Stock | 3.99 | |
| 5 | 1.2.0620.0013
CONTROL PANEL HOUSING | Low Stock | 3.99 | |
| 6 | 1.3.0420.0102
DISPLAY/CONTROL PCB | Low Stock | 14.99 | |
| 7 | 1.3.0520.0041
LED LAMP PCB | On Order | 9.99 | |
| 8-9 | 1.1.0820.0099
REAR AIR DUCT ASSEMBLY | Not Available | ||
| 10 | 1.1.0220.0165
EVAPORATOR $$$ | Not Available | ||
| 11 | 1.2.0120.0029
INNER CAVITY $$$ | Not Available | ||
| 12 | 1.1.0120.0425
OUTER SHELL $$$ | Not Available | ||
| 13 | 1.3.0620.0034
INNER 12V FAN | On Order | 9.99 | |
| 14 | 1.3.0220.0041
POWER CABLE (TYPE G PLUG) | Low Stock | 12.49 | |
| 15 | 1.3.0100.0081
COMPRESSOR (15CM) $$$ | Not Available | ||
| 16 | 1.1.0320.0177
COMPRESSOR BASE PLATE $$$ | Not Available | ||
| 17 | 1.1.0820.0100
POWER PCB CASING | Low Stock | 3.99 | |
| 18 | 1.3.0420.0101
POWER PCB | In Stock | 24.99 | |
| 19 | 1.2.0520.0003
ADJUSTABLE FOOT | Low Stock | 3.99 | |
| 20 | 1.3.0620.0035
COOLING FAN 12V | Low Stock | 9.99 | |
| 21 | 1.1.0220.0151
CONDENSER $$$ | Not Available | ||
| 22 | 1.1.0320.0481
BASE GRILL (NEW TYPE FROM JULY 2022 - REVERSIBLE) | Low Stock | 9.99 | |
| 23 | 1.5.0120.0206
WOODEN SHELF | In Stock | 8.99 | |
| 24 | 1.1.0520.0013
LOWER HINGE - RIGHT | In Stock | 6.99 | |
| 25 | 1.1.0720.0001
DOOR - HANDLE | Low Stock | 16.99 | |
| 26-27 | 1.3.0320.0167
THERMISTOR - INTERNAL TEMP AND EVAP (TWO PARTS) | In Stock | 10.99 | |
