| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 2 | 32049265
OVEN LAMP 230V 25W T300 G9 JZH | Low Stock | 8.99 | |
| 7 | 20854869
REAR INSULATION COVER BUILT IN 65/75LT3B | Not Available | ||
| 9 | 32032644
MOTOR FAN 230V 28W L | Not Available | ||
| 10 | 20778490
CAVITY (YNA65 | Not Available | ||
| 12 | 37019627
HINGE COUNTERPART 65 LT PYRO LEFT | In Stock | 4.99 | |
| 12 | 37019628
HINGE COUNTERPART 65 LT PYRO RIGHT | In Stock | 4.99 | |
| 15 | 20757233
TRAY (65L | In Stock | 14.99 | |
| 16 | 42275280
DOOR GASKET (N65 | In Stock | 11.99 | |
| 17 | 37052360
GRID GEN2 (65L/75L | In Stock | 14.99 | |
| 19 | 20766762
FAN COVER (65-75L | Low Stock | 14.99 | |
| 20 | 32046488
HEATER RING230V2000W 8 | In Stock | 16.99 | |
| 21 | 37007900
MOTOR FAN WITH 6 BLADE H | In Stock | 4.99 | |
| 21 | 37033120
MOTOR FAN WITH 11 BLADE M | In Stock | 4.99 | |
| 28 | 37033365
REAR TOP PANEL (NEW B-IN) | Not Available | ||
| 29 | 20612618
OUTER BACK LID (BI | Not Available | ||
| 30 | 32041157
TERMINAL BOX 16A 450V T125 SL210 N | In Stock | 4.99 | |
| 31 | 32001574
POWER CABLE | Low Stock | 6.99 | |
| 50 | 47019394
DOOR_FULL_INNER_GLASS_TIP7LD_AN/66_LOWE | In Stock | 34.99 | |
| 52 | 37051145
OVEN DOOR HINGE | In Stock | 24.99 | |
| 55 | 42213598
HANDLE TRIM SUPPORTER (BLACK) | Low Stock | 4.99 | |
| 56 | 37035609
HANDLE TRIM ASSEMBLE (INOX DP | Low Stock | 19.99 | |
| 70 | 20856181
INNER PANNEL BIO POLY | Not Available | ||
| 70 | 37053333
INNER PANEL GR (N0_259D | Not Available | ||
| 72 | 22321004
FRONT PANEL | Not Available | ||
| 77 | 32036146
SIGNAL LAMP LENS RED 6MM ANEL | In Stock | 4.99 | |
| 79 | 32001510
SIGNAL LAMP 25X25CM STR T 250V ANL | Low Stock | 4.99 | |
| 81 | 32035375
SWITCH BUILT IN/FS GTK | Low Stock | 22.49 | |
| 82 | 32031727
CAP. THERMOSTAT 285C NGBI/FO/DO FLND | Low Stock | 15.50 | |

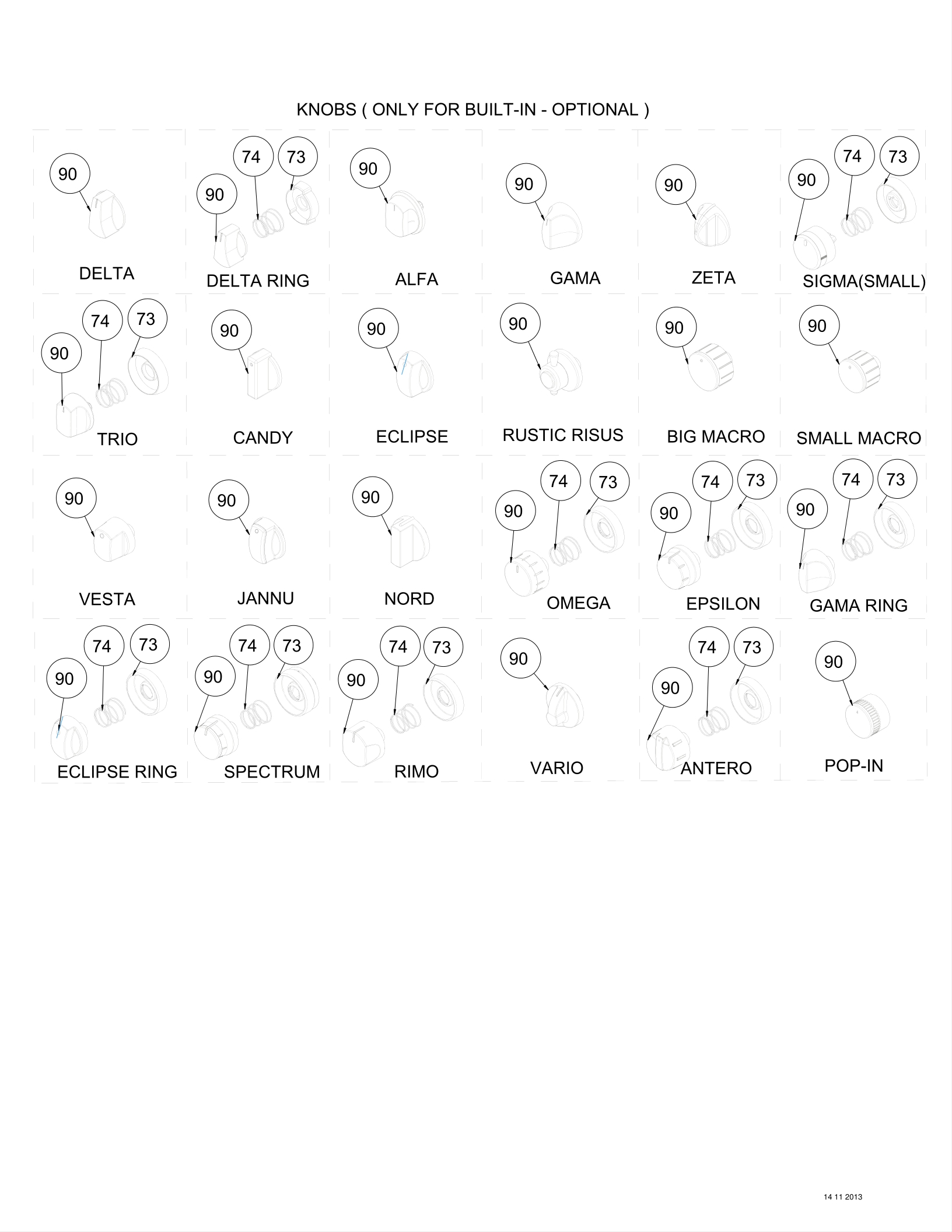

| 90-76 | 42312365
0D | Low Stock | 3.99 | |
| 91 | 37028756
M6 LEFT HAND NUT | Not Available | ||
| 91 | 37030155
M6 RIGHT HELICAL THREADED RAGGED NUT | Not Available | ||
| 106 | 37006431
DEEP/SHALLOW TRAY GRID 66 | In Stock | 9.29 | |
| 110 | 32001560
BOTTOM HEAT.ELEMENT(60*60 | In Stock | 19.99 | |
| 111 | 20613033
BOTTOM HEATING ELEMENT HOLDER | On Order | 4.99 | |
| 112 | 32043683
HEATER 66UP+GRIL230V1200+1400W65L E BR | In Stock | 44.09 | |
| 113 | 32053741
ND TIMER DIG FULL RED FR12 23****** VST | Not Available | ||
| 113 | 32053748
ND TIMER DIJ FULL RED FR12 VSTL GR | Not Available | ||
| 122 | 32011419
DIGITAL TIMER LENS (NEW G FS | Not Available | ||
| 124 | 42104575
VSTL DIGITAL TIMER HOLDER/VBEFRN_13895/Y | Not Available | ||
| 125 | 42069028
BIO COUNTER ASSEMBLY PART | Low Stock | 3.99 | |
| 137 | 42014496
TIMER BUTTON (FLUSH | In Stock | 4.99 | |
| 197 | 42150435
SIDE COVER PLASTIC PART FOR CONTROL PANE | Not Available | ||
| 200 | 22268427
BOTTOM COVER UNPAINTED GR. V2 | Not Available | ||
| 201 | 32037930
MOTOR COOLING AXL 230V TRIPOD H | In Stock | 21.91 | |
| 202 | 20765869
TOP ISOLATION COVER (60L/65L | Not Available | ||
| 203 | 22077660
LNL BIO COOLING FAN DUCT | Not Available | ||
| 207 | 22016064
OUTER TOP LID (BI | Not Available | ||
| 237 | 42226665
DOOR_PLASTIK_TOP_COVER | Low Stock | Contact Us | |
| 262 | 37035941
REMOVABLE GLASS SPRING (LEFT) | Low Stock | Contact Us | |
| 262 | 37035942
REMOVABLE GLASS SPRING (RIGHT) | Low Stock | Contact Us | |
| 329 | 42019954
GRADUAL WASHER | Not Available | ||
| 360 | 42224372
BUILT-IN OVEN DOOR SILICON BUFFER_V2 | Low Stock | 3.99 | |
| 377 | 22349639
OVEN DOOR GROUP (YNA | Not Available | ||
| 448 | 32031722
LIMIT THERMOSTAT NC 200C 250V 16A T | In Stock | 6.99 | |
| 479 | 37016061
THERMST BULB HOLDER (ELECTRIC | In Stock | 4.99 | |
| 521 | 32023787
CABLE HOLDER RECTANGLE 19X28MM | Low Stock | 3.99 | |
| 552 | 37011599
EXHAUST (B-IN | Not Available | ||
| 553 | 37016411
EXHAUST TOP PANEL (NEW G. B-IN) | Not Available | ||
| 608 | 37024382
LIMITER BRACKET WITH SCREWING | Not Available | ||
| 621 | 20760254
FRAME SUPPORT PART RIGHT (BLACK) | Low Stock | 4.99 | |
| 621 | 20760255
FRAME SUPPORT PART LEFT (BLACK) | Low Stock | 4.99 | |
| 649 | 37028271
ANK/DOTYPE-2 | Not Available | ||
| 715 | 22268428
WATER COLLECT PART (BI | Not Available | ||
