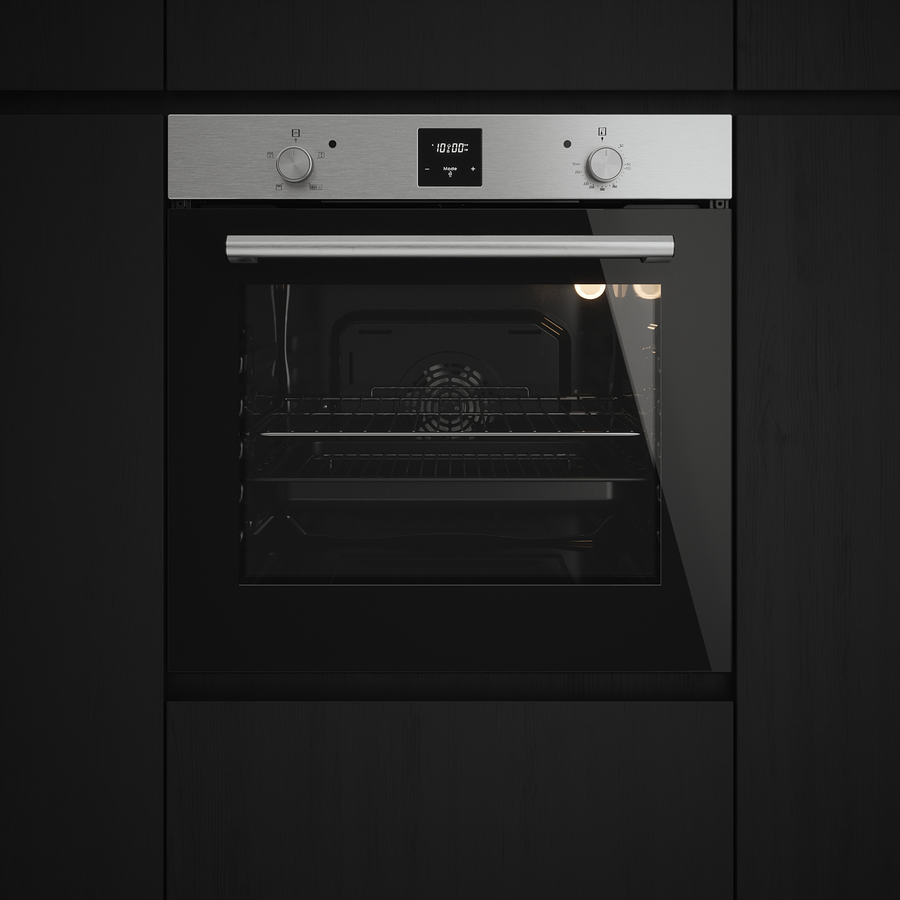

60CM SINGLE LED MF STEAM-CLEAN FAN OVEN - STAINLESS
WROV60SS.1

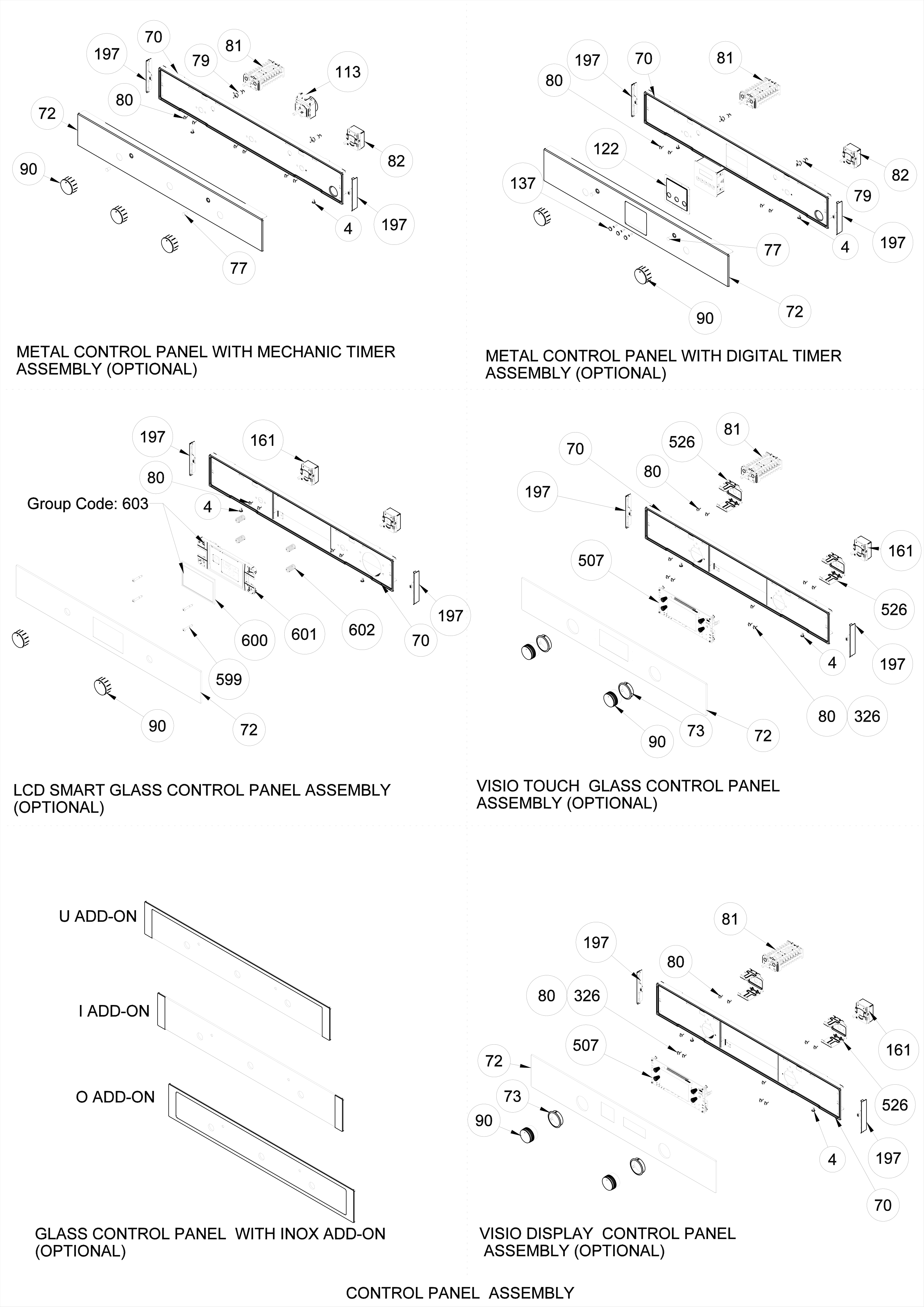

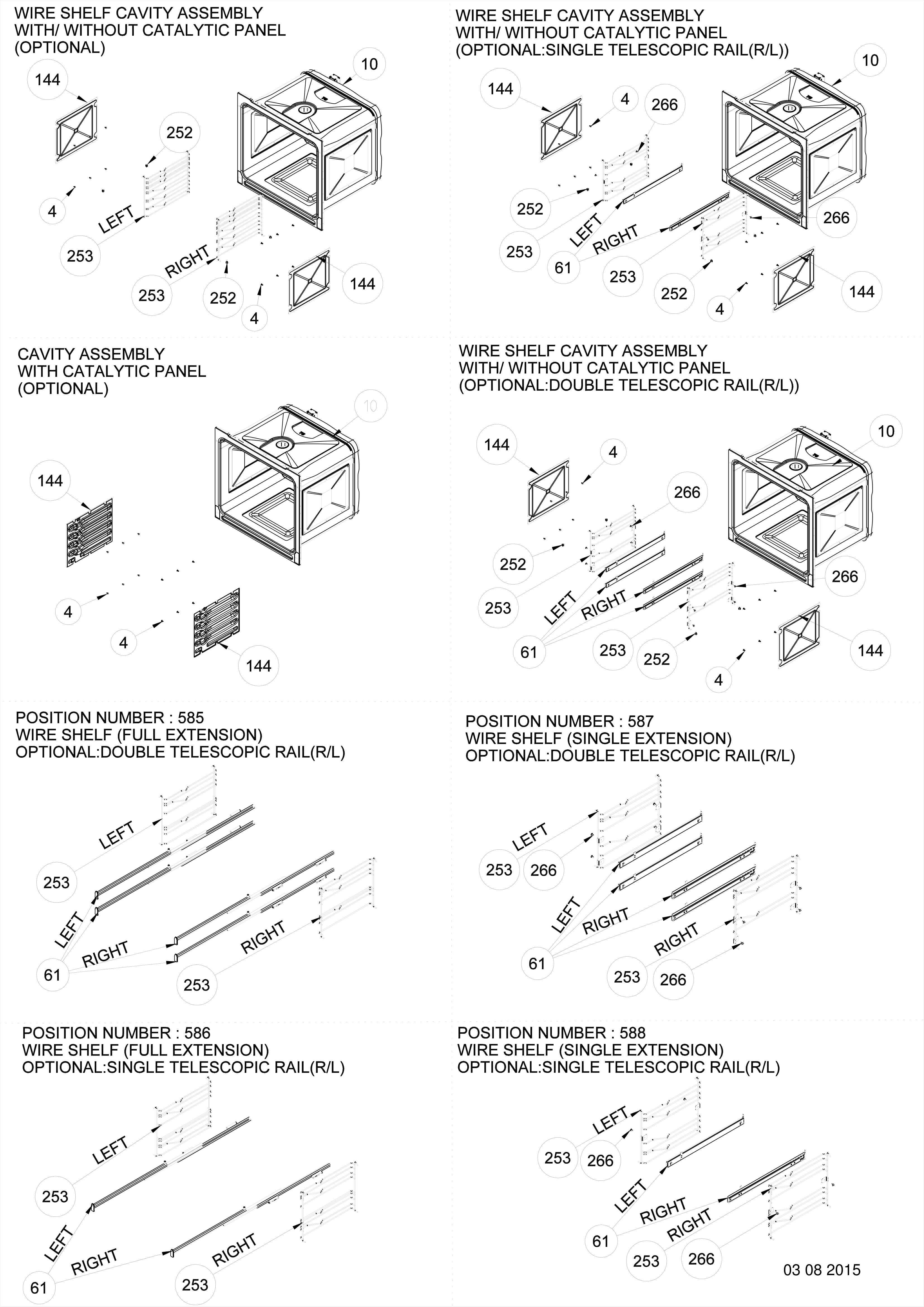

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||

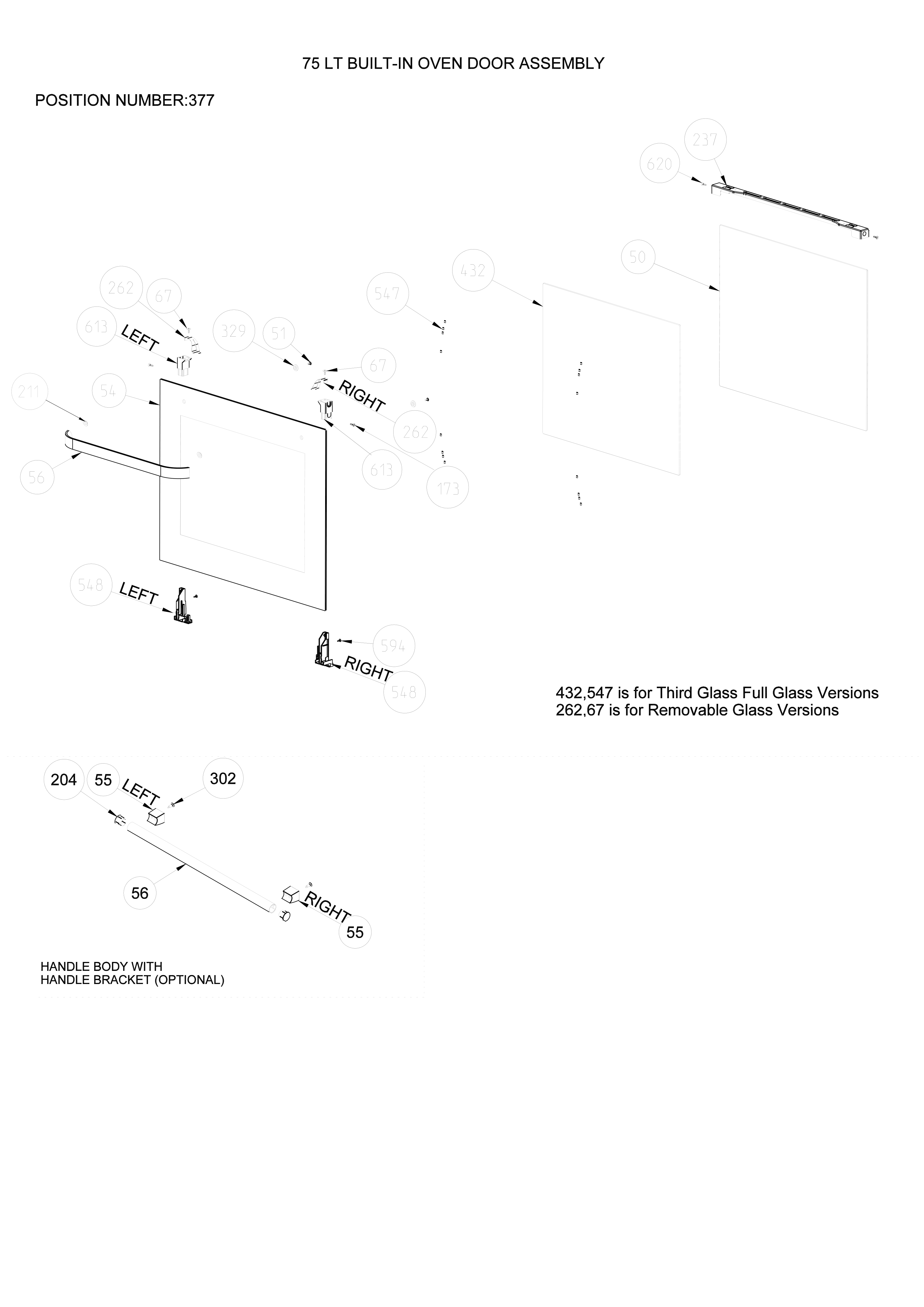

| 22128549
OVEN DOOR TYPE 5 STND. PARTS GR. | Not Available | |||
| 22383357
OVEN DOOR GROUP(TOP) | Low Stock | Contact Us | ||
| 22383391
OUTER GLASS ASSEMBLY(TOP/STANDARD) | Low Stock | Contact Us | ||
| 22392146
HINGE ADAPTER 1.5 MM SHIFTED | Not Available | |||
| 22392277
HINGE ADAPTER GROUP (1.5 MM SHIFTED) | Not Available | |||
| 32041210
KLEMENS B.K.G 1157 ING 3G1 1 | Not Available | |||
| 37029518
Handle Bracket Inside Assembly Nut | Not Available | |||
| 37055851
INNER GR(N0_75216D | Not Available | |||
| 42132484
DIGITAL TIMER SUPPORT TAPE | In Stock | 4.99 | ||
| 42207799
SR.LENS GR 32031827 | Not Available | |||
| 0 | 42290996
KNOB SPINDLE( TYPE O | Not Available | ||
| 2 | 32042009
OVEN LAMP 230V 25W T300 N G9 | Low Stock | Contact Us | |
| 4 | 37019096
SCREW | Not Available | ||
| 7 | 20854869
REAR INSULATION COVER BUILT IN 65/75LT3B | Not Available | ||
| 9 | 22081176
FAN MOTOR GROUP | Low Stock | 11.99 | |
| 9-1 | 32032644
MOTOR FAN 230V 28W L | Not Available | ||
| 12 | 22112910
NEW HINGE COUNTER PART RIGHT V3 | Low Stock | Contact Us | |
| 13 | 37002589
SCREW | Not Available | ||
| 15 | 20757233
TRAY (65L | Low Stock | 14.99 | |
| 16 | 42275281
DOOR GASKET(N75 | In Stock | Contact Us | |
| 17 | 37052360
GRID GEN2 (65L/75L | In Stock | Contact Us | |
| 19 | 20766762
FAN COVER(65-75L | On Order | Contact Us | |
| 20 | 32046488
HEATER RING230V2000W 8 | In Stock | 16.99 | |
| 21 | 37007900
MOTOR FAN WITH 6 BLADE H | In Stock | 4.99 | |
| 21 | 37033120
MOTOR FAN WITH 11 BLADE M | On Order | 4.99 | |
| 28 | 37033365
REAR TOP PANEL (NEW B-IN) | Not Available | ||
| 29 | 20612618
OUTER BACK LID(BI | Not Available | ||
| 30 | 32041157
TERMINAL BOX 16A 450V T125 SL210 N | In Stock | 4.99 | |
| 31 | 32001574
POWER CABLE | Low Stock | 6.99 | |
| 32-1 | 20782077
SIDE PANEL(BI | Not Available | ||
| 32-2 | 20782116
SIDE PANEL(BI | Not Available | ||
| 50 | 47017859
B-IN DOOR FULL INNER GLASS | Low Stock | 69.99 | |
| 51 | 37026148
SCREW | Not Available | ||
| 52-1 | 22197522
STRAP HINGES GROUP M15 | Not Available | ||
| 52-2 | 37046863
STRAP HINGES M15 | In Stock | Contact Us | |
| 55 | 42016989
HANDLE BRACKET(TRIO | Not Available | ||
| 55 | 42017002
HANDLE BRACKET(TRIO | Not Available | ||

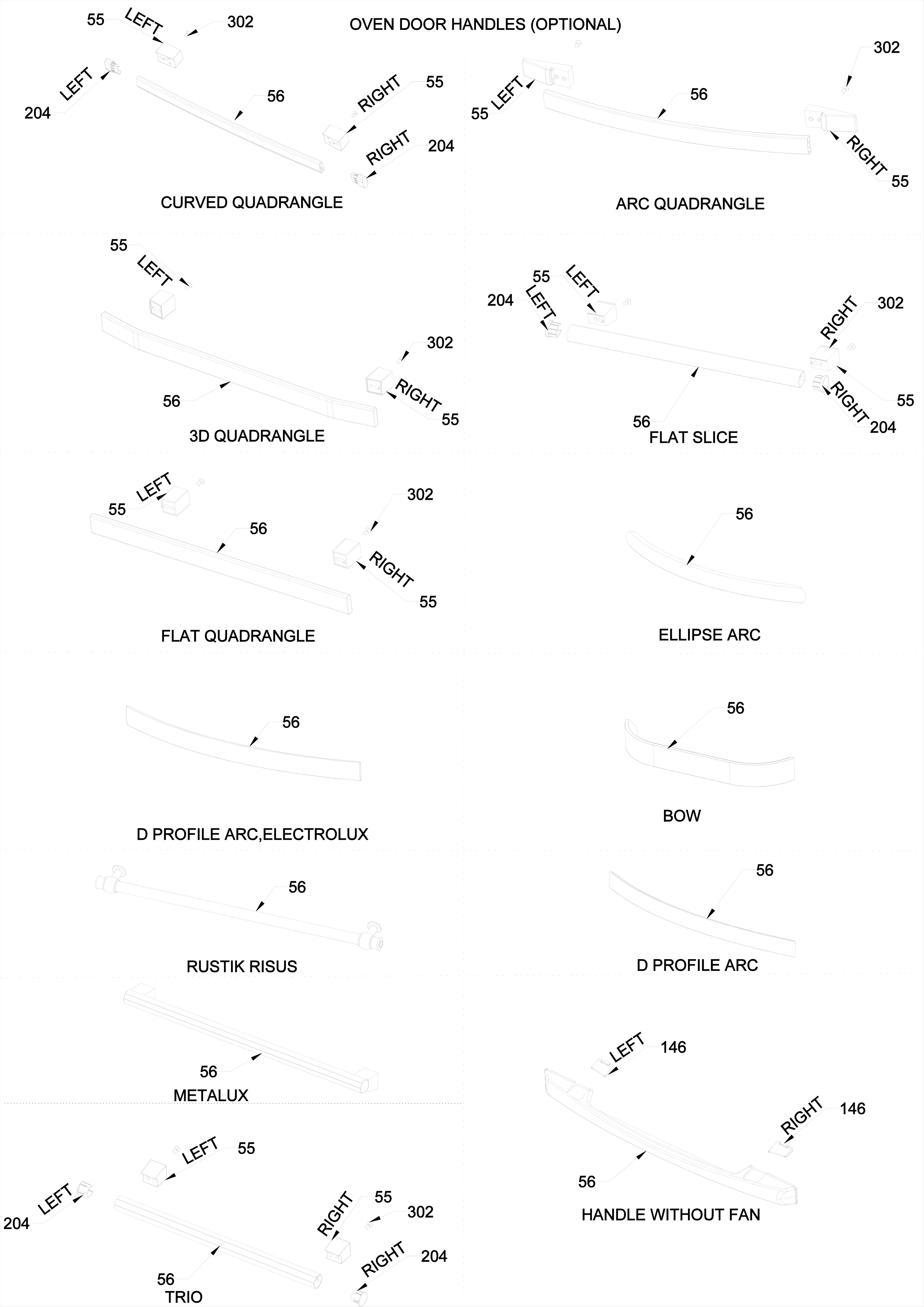

| 56 | 37032782
HANDLE ASM. TRIO (INOX DP | Not Available | ||
| 77 | 32032766
SIGNAL LAMB LENS-GRAY | Not Available | ||
| 80 | 37002003
SCREW | Not Available | ||
| 81 | 32047532
SELECTOR SWITCH | In Stock | 8.17 | |
| 82 | 32046835
THERMOSTAT (285oC MAX) | In Stock | Contact Us | |
| 90-76 | 42312365
KNOB (HARUNA | Low Stock | Contact Us | |
| 91-a | 37028756
M6 LEFT HAND NUT | Not Available | ||
| 91-b | 37030155
M6 RIGHT HELICAL THREADED RAGGED NUT | Not Available | ||
| 106 | 37006431
DEEP/SHALLOW TRAY GRID 66 | In Stock | 9.29 | |
| 112 | 32049208
GRLL HEAT ELEMENT(60*60 | In Stock | Contact Us | |
| 113 | 32053746
ND TIMER DIG FULL WHT TC CRYSTL OKD | In Stock | 24.99 | |
| 122 | 32031827
DIGITAL TIMER LENS | Not Available | ||
| 125 | 42069028
BIO COUNTER ASSEMBLY PART | Not Available | ||
| 173-a | 37002631
SCREW | Not Available | ||
| 173-b | 37002304
SCREW | Not Available | ||
| 197 | 42139153
SLIM PANEL PLASTIC PART | Not Available | ||
| 200 | 22268427
BOTTOM COVER UNPAINTED GR. V2 | Not Available | ||
| 201-1 | 22163685
COOLING FAN GROUP 230V | In Stock | 12.52 | |
| 201-2 | 32037930
MOTOR COOLING AXL 230V TRIPOD H | In Stock | 21.91 | |
| 202 | 37025364
COOLING FAN DUCT (75L | Not Available | ||
| 203 | 37028375
LNL BIO COOLING FAN DUCT 75LT | Not Available | ||
| 204-a | 42017012
HANDLE TAP (TRIO | Not Available | ||
| 204-b | 42017072
HANDLE TAP (TRIO | Not Available | ||
| 207-a | 20880397
OUTER TOP LID(BI/B70 | Not Available | ||
| 207-b | 20880397
OUTER TOP LID(BI/B70 | Not Available | ||
| 262-a | 37035945
DOOR GLASS HLDR SPRING(TYP6 | Low Stock | 7.49 | |
| 262-b | 37035946
DOOR GLASS HLDR SPRING(TYP6 | Low Stock | 7.49 | |
| 302 | 37002007
SCREW | Not Available | ||
| 360 | 42224372
BUILT-IN OVEN DOOR SILICON BUFFER_V2 | On Order | Contact Us | |
| 397 | 37046219
OVEN COOLING SYSTEM OUTER METAL BLADE | Not Available | ||
| 447 | 42211065
DOOR P COVER(45CM | Low Stock | Contact Us | |
| 448 | 32031722
LIMIT THERMOSTAT NC 200C 250V 16A T | In Stock | 4.99 | |
| 479-a | 37016061
THERMST BULB HOLDER(ELECTRIC | Low Stock | 4.99 | |
| 479-b | 37016061
THERMST BULB HOLDER(ELECTRIC | Low Stock | 4.99 | |
| 521 | 32023787
CABLE HOLDER RECTANGLE 19X28MM | On Order | Contact Us | |
| 552-a | 37011599
EXHAUST(B-IN | Not Available | ||
| 552-b | 37011599
EXHAUST(B-IN | Not Available | ||
| 553-a | 37016411
EXHAUST TOP PANEL (NEW G. B-IN) | Not Available | ||
| 553-b | 37016411
EXHAUST TOP PANEL (NEW G. B-IN) | Not Available | ||
| 594 | 37020238
SCREW | Not Available | ||
| 608-a | 37024382
LIMITER BRACKET WITH SCREWING | Not Available | ||
| 608-b | 37024382
LIMITER BRACKET WITH SCREWING | Not Available | ||
| 608-c | 37024382
LIMITER BRACKET WITH SCREWING | Not Available | ||
| 621-a | 20760254
FRAME SUPPORT PART RIGHT (BLACK) | Low Stock | 4.99 | |
| 621-b | 20760255
FRAME SUPPORT PART LEFT (BLACK) | Low Stock | 4.99 | |
| 621-c | 20760254
FRAME SUPPORT PART RIGHT (BLACK) | Low Stock | 4.99 | |
| 621-d | 20760255
FRAME SUPPORT PART LEFT (BLACK) | Low Stock | 4.99 | |
| 718-a | 37039476
SCREW | Not Available | ||
| 718-b | 37039476
SCREW | Not Available | ||
| 718-c | 37039476
SCREW | Not Available | ||
Technical Specifications
Dimensions Unpacked
595x547x595mm
595x547x595mm
Energy Rating
A
A
Dimensions Packed
700x655x665mm
700x655x665mm
Weight Unpacked
29.6kg
29.6kg
Weight Packed
32kg
32kg
Number of Functions
4
4
Oven Capacity
72L
72L
Electrical Connection
Cable no Plug
Cable no Plug
Maximum Power
2650w
2650w
Lamp Power
25w
25w
Description
| Awaiting Information |
