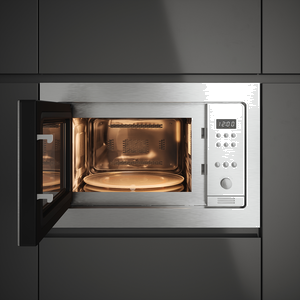

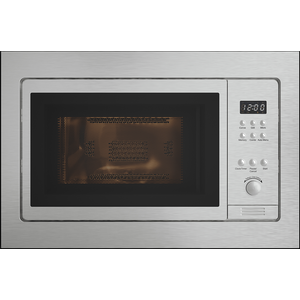

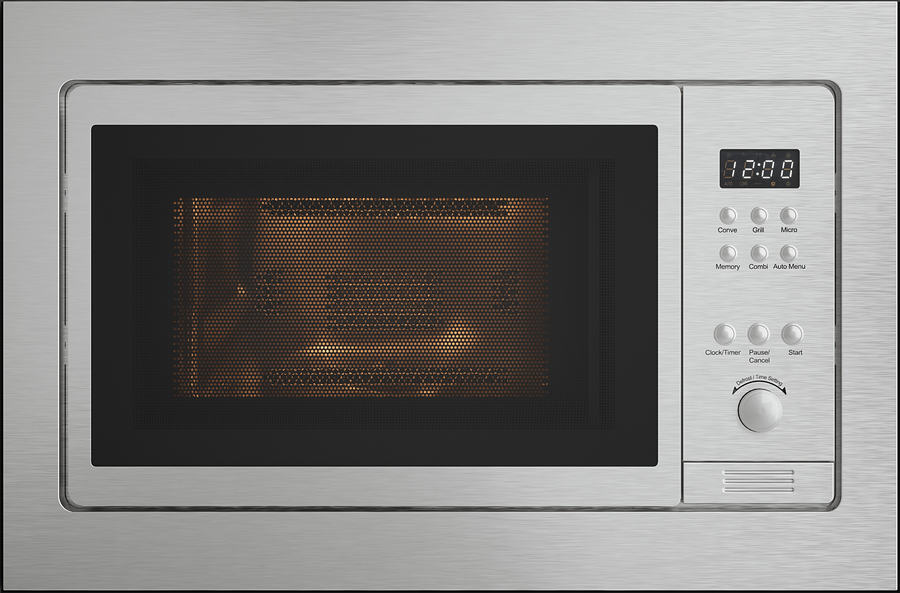

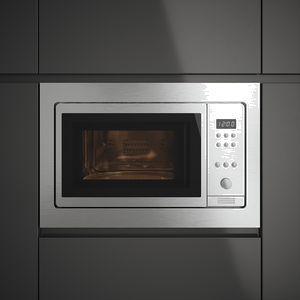

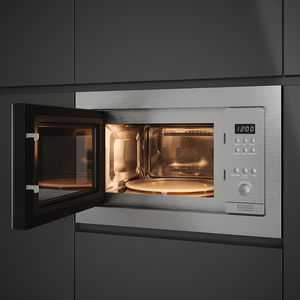

H382xW594xD530 Stainless Steel Combination Microwave - Left Hinge Opening

WRMICRO25SS

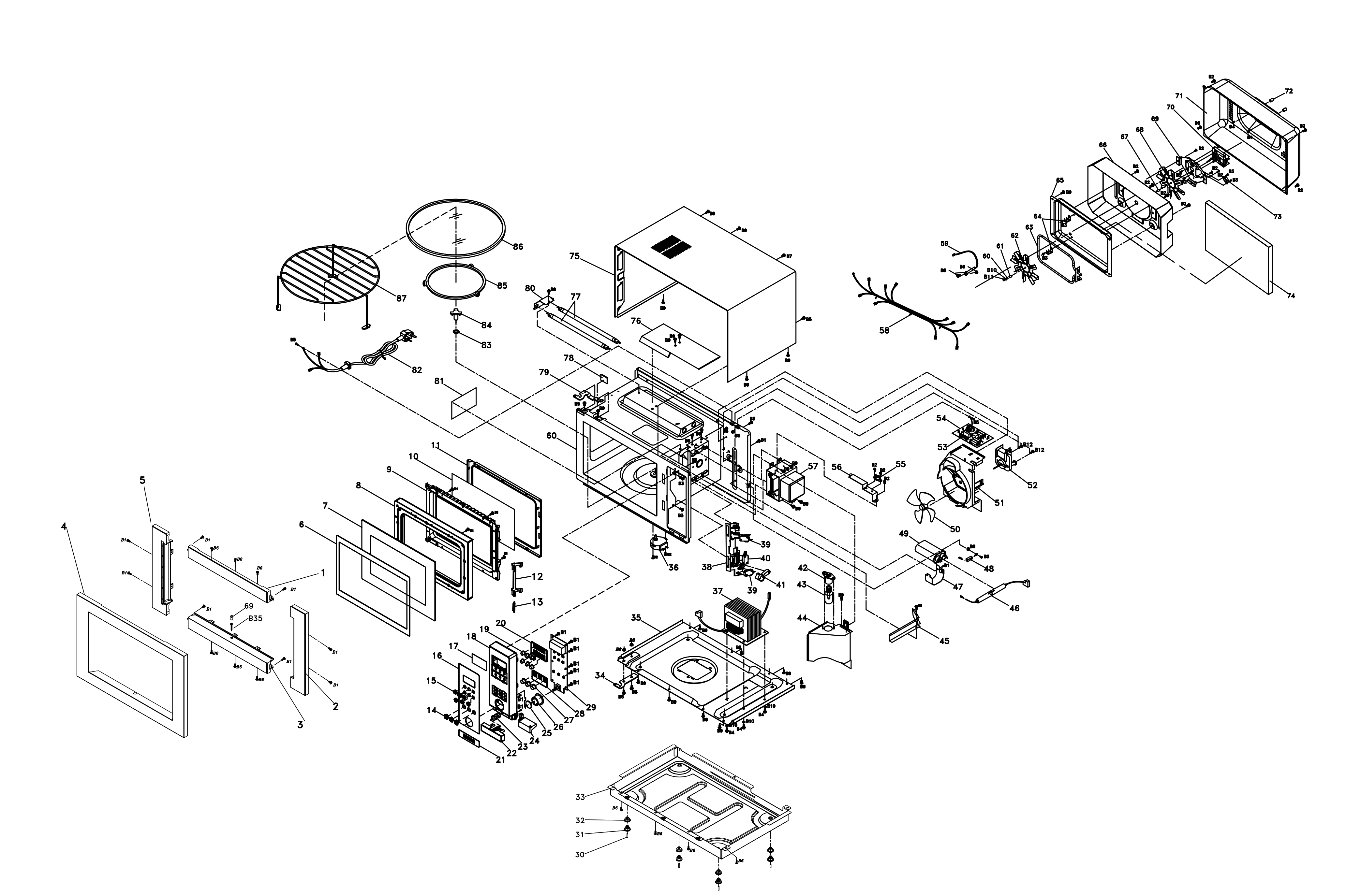

Drawing 1
Item# Part Details Availability £
Drawing 1
N/A 17470000009107
10A FUSE
On Order5.99
1 22200-00400-C0
INNER FRAME TOP
Low Stock16.99
2 22200-00719-B0
INNER FRAME RIGHT
Low Stock3.99
3 22200-00401-C0
INNER FRAME BOTTOM
Not Available
4 21199-02426-A0
FRAME
Low Stock5.99
5 22200-00718-B0
INNER FRAME LEFT
Low Stock3.99
6 21299-00132-A0
FACE FRAME COVER
Low Stock5.99
7 25300-00975-A0
WINDOW BOARD
Low Stock3.99
8 22100-00687-J0
FACE FRAME
Low Stock3.99
9 50200-00047-B0
DOOR BODY ASSEMBLING UNIT
Low Stock7.99
10 25300-00075-C0
CONVECTION GLASS
Low Stock3.99
11 22200-00206-C0
PROTECTION FRAME
Low Stock3.99
12 22200-00170-C0
DOOR HOOK
In Stock2.99
13 21599-00058-A0
SPRING
In Stock3.99
14 22100-00671-A0
RING KNOB COVER
In Stock4.50
15 22100-00646-A0
RING KNOB COVER
In Stock3.99
16 21231-224B1-A0
CONTROL BOARD COVER
Not Available
17 22100-00784-B0
FILM
Low Stock3.99
18 22100-00185-A0
CONTROL BOARD
Not Available
19 22100-00292-B0
BUTTON
In Stock3.99
20 22200-00084-A0
ROW BUTTON A
In Stock3.99
21 21299-00131-A0
OPEN THE DOOR FACEPLATE
Not Available
22 22100-00782-B0
OPEN THE DOOR KEY-PRESS
In Stock3.99
23 21599-00055-A0
SPRING
In Stock3.99
24 22200-00102-A0
REVOLVING ARM
In Stock3.99
25 22100-03060-A0
KNOB COVER
Not Available
26 22104-21711-A0
RING KNOB
In Stock15.50
27 22100-00293-B0
BUTTON
In Stock8.50
28 22200-00083-A0
ROW BUTTON A
In Stock3.99
29 23320-11021-A0
PCB
Low Stock19.99
31 22100-00497-B0
LEG
Low Stock6.99
32 22100-02444-A0
LEG
Low Stock6.99
33 21199-00326-D0
BASE
Not Available
34 21299-00203-B0
LOWER SUPPORT
Not Available
35 21199-00106-V0
BASE BOARD
Not Available
36 23640-10071-A0
TRAY MOTOR
In Stock9.99
37 23240-10092-A0
TRANSFORMER
On Order29.99
38 22200-00020-F0
SWITCH STAND
In Stock4.99
39 23710-10001-A0
MICRO-SWITCH A
Low Stock9.99
40 23710-10003-A0
MICRO-SWITCH C
In Stock9.99
41 22200-00171-E0
REVOLVING ARM
Low Stock10.99
42 23750-10131-A0
LAMP AND LAMP HOLDER
Low Stock14.99
43 23750-10131-A0
LAMP AND LAMP HOLDER
Low Stock14.99
44 21299-00250-G0
AIR INLET COVER
Not Available
46 23760-10137-A0
HIGH VOLTAGE FUSE
On Order9.99
47 21299-00230-G0
CAPACITANCE CLAMP
In Stock4.99
48 23710-10058-A0
DIODE
In Stock9.99
49 23710-10042-A0
CAPACITOR
Low Stock14.99
50 22200-00142-C0
FAN VANE
Low Stock9.99
51 22200-00419-D0
FAN SUPPORT
Not Available
52 236L0-10002-A0
FAN MOTOR
Low Stock19.99
53 23300-10010-A0
NOISE FILTER
In Stock9.99
54 23300-10010-A0
NOISE FILTER
In Stock9.99
55 23750-10012-A0
THERMOSTAT
In Stock9.99
56 21299-00282-C0
THERMOSTAT SUPPORT
Not Available
57 23110-10002-B0
MAGNETRON
Low Stock25.99
58 23400-00084-A0
ELECTRIC WIRE GROUP
Low Stock4.99
59 23730-10115-A0
TEMPERATURE RESISTOR
In Stock8.99
60 50100-00187-C0
CAVITY
Not Available
61 21599-00069-B0
SLEEVE
Not Available
62 21299-00307-B0
CONVECTION FAN
Low Stock10.99
63 23500-10061-B0
HEATING TUBE
On Order19.99
64 29400-00002-A0
FIX HOOK
Low Stock9.99
65 21199-00499-F0
HOT WIND CAVITY
Not Available
66 21299-00271-G0
HEAT-PROOF BOARD
Not Available
67 21599-00068-B0
SLEEVE
Not Available
68 21299-00398-A0
COOLING FAN
In Stock10.99
69 21299-00397-E0
MOTOR STAND
Not Available
70 236L0-10037-A0
CONVECTION MOTOR
In Stock14.99
71 21199-00324-H0
BACK COVER
Not Available
72 22300-00014-B0
STOP POLE
Not Available
73 23750-10018-A0
THERMOSTAT
In Stock19.99
74 29300-00011-D0
ADIABATIC COTTON
Not Available
75 21199-01746-A0
MANTLE
Not Available
76 21299-00273-A0
HEAT-PROOF BOARD
Not Available
77 23500-10012-A0
QUARTZ TUBE
In Stock4.99
79 21299-00201-A0
UP BEARING
Low Stock12.99
80 21299-00579-B0
QUARTZ TUBE SUPPORT
Not Available
81 29100-00004-B0
SPLASH-PROOF BOARD
Not Available
82 23410-10095-B0
POWER WIRE
In Stock9.99
83 22200-00203-B0
WASHER
Not Available
84 22300-00018-A0
CONNECTOR
In Stock8.99
85 22300-00038-A0
ROLLER SUPPORT
In Stock9.99
86 25100-00004-A0
GLASS PLATE
On Order24.99
87 21599-00511-A0
GRILL RACK
In Stock13.99

Functions

â–ªConvention cooking
â–ªTimer
â–ªLED Clock
â–ªChild safety lock
â–ªPause and cancel operation
â–ªCooking programmes: 6
â–ªPower Levels: 5

Technical Specifications

Dimensions Unpacked
592x530x390mm
Dimensions Packed
660x550x460mm
Weight Unpacked
15.5Kg
Weight Packed
17Kg
Fuse Rating
13Amp
Grill Power Rating
1200W
Capacity
25L
Microwave Power
900W
Glass Plate Diameter
315mm
Connection Type
BST 3 Pin Plug
Description

Our microwave and grill combines everything you need in the kitchen into one compact and stylish appliance. Plus the stylish LED display clearly shows the timer to ensure you can keep an eye on your cooking timings. A great safety feature is the child lock, so you don’t need to worry about any young prying hands.

Design

â–ªStainless Steel Finish
â–ªMicrowave/Grill/Convection
â–ªFull Touch Control
â–ª6 Cooking Programmes
â–ªGrill Function
â–ª25 Litres Capacity
â–ªWhite LED Display
