H382xW594xD530 Black Combination Microwave - Left Hinge Opening
WRMICRO25BK

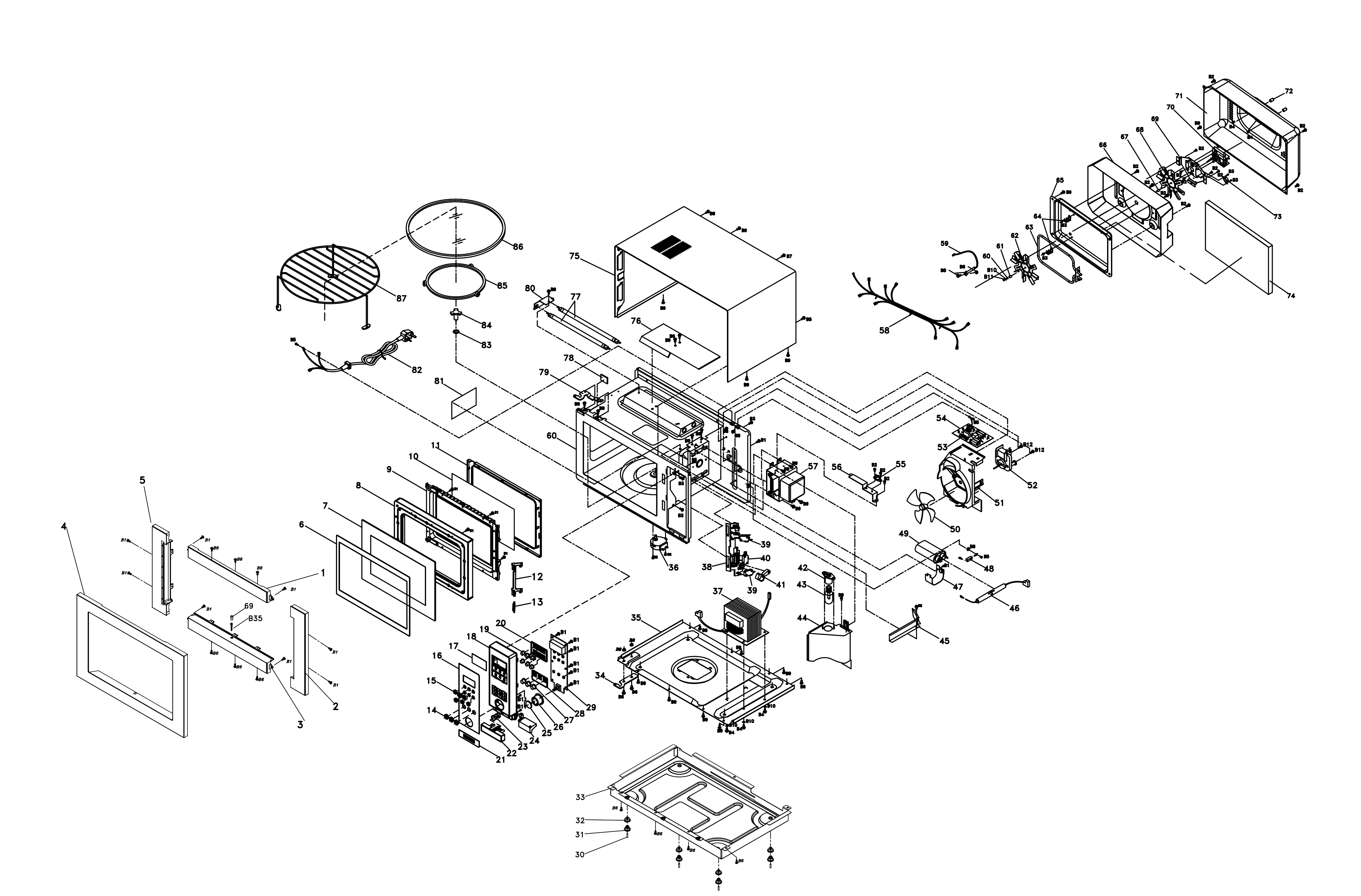

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| N/A | 17470000009107
10A FUSE | In Stock | Contact Us | |
| N/A | 17470000009107
10A FUSE | In Stock | 5.99 | |
| 1 | 22200-00400-C0
INNER FRAME TOP | Low Stock | 16.99 | |
| 2 | 22200-00719-B0
INNER FRAME RIGHT | Low Stock | 3.99 | |
| 3 | 22200-00401-C0
INNER FRAME BOTTOM | Not Available | ||
| 4 | 21199-02393-A0
FRAME | On Order | 22.99 | |
| 5 | 22200-00718-B0
INNER FRAME LEFT | Low Stock | 3.99 | |
| 6 | 21299-02570-A0
FACE FRAME COVER | In Stock | 5.99 | |
| 7 | 25300-00975-A0
WINDOW BOARD | Low Stock | 3.99 | |
| 8 | 22100-00687-J0
FACE FRAME | Low Stock | 3.99 | |
| 9 | 50200-00047-B0
DOOR BODY ASSEMBLING UNIT | Low Stock | 7.99 | |
| 10 | 25300-00075-C0
CONVECTION GLASS | Low Stock | 3.99 | |
| 11 | 22200-00206-C0
PROTECTION FRAME | Low Stock | 3.99 | |
| 12 | 22200-00170-C0
DOOR HOOK | In Stock | 2.99 | |
| 13 | 21599-00058-A0
SPRING | In Stock | 3.99 | |
| 14 | 22100-00671-A0
RING KNOB COVER | In Stock | 4.50 | |
| 15 | 22100-00646-A0
RING KNOB COVER | In Stock | 3.99 | |
| 16 | 21231-224B2-A0
CONTROL BOARD COVER | Not Available | ||
| 17 | 22100-00784-B0
FILM | Low Stock | 3.99 | |
| 18 | 22100-00185-A0
CONTROL BOARD | Not Available | ||
| 19 | 22100-00292-B0
BUTTON | In Stock | 3.99 | |
| 20 | 22200-00084-A0
ROW BUTTON A | In Stock | 3.99 | |
| 21 | 21299-02572-A0
OPEN THE DOOR FACEPLATE | In Stock | 3.99 | |
| 22 | 22100-00782-B0
OPEN THE DOOR KEY-PRESS | In Stock | 3.99 | |
| 23 | 21599-00055-A0
SPRING | In Stock | 3.99 | |
| 24 | 22200-00102-A0
REVOLVING ARM | In Stock | 3.99 | |
| 25 | 22100-03060-A0
KNOB COVER | Not Available | ||
| 26 | 22104-21711-A0
RING KNOB | In Stock | 15.50 | |
| 27 | 22100-00293-B0
BUTTON | In Stock | 8.50 | |
| 28 | 22200-00083-A0
ROW BUTTON A | In Stock | 3.99 | |
| 29 | 23320-11021-A0
PCB | On Order | 19.99 | |
| 31 | 22100-00497-B0
LEG | Low Stock | 6.99 | |
| 32 | 22100-02444-A0
LEG | Low Stock | 6.99 | |
| 33 | 21199-00326-D0
BASE | Not Available | ||
| 34 | 21299-00203-B0
LOWER SUPPORT | Not Available | ||
| 35 | 21199-00106-V0
BASE BOARD | Not Available | ||
| 36 | 23640-10071-A0
TRAY MOTOR | In Stock | 9.99 | |
| 37 | 23240-10092-A0
TRANSFORMER | On Order | 29.99 | |
| 38 | 22200-00020-F0
SWITCH STAND | In Stock | 4.99 | |
| 39 | 23710-10001-A0
MICRO-SWITCH A | Low Stock | 9.99 | |
| 40 | 23710-10003-A0
MICRO-SWITCH C | In Stock | 9.99 | |
| 41 | 22200-00171-E0
REVOLVING ARM | Low Stock | 10.99 | |
| 42 | 23750-10131-A0
LAMP AND LAMP HOLDER | In Stock | 14.99 | |
| 43 | 23750-10131-A0
LAMP AND LAMP HOLDER | In Stock | 14.99 | |
| 44 | 21299-00250-G0
AIR INLET COVER | Not Available | ||
| 46 | 23760-10137-A0
HIGH VOLTAGE FUSE | On Order | 9.99 | |
| 47 | 21299-00230-G0
CAPACITANCE CLAMP | In Stock | 4.99 | |
| 48 | 23710-10058-A0
DIODE | In Stock | 9.99 | |
| 49 | 23710-10042-A0
CAPACITOR | Low Stock | 14.99 | |
| 50 | 22200-00142-C0
FAN VANE | Low Stock | 9.99 | |
| 51 | 22200-00419-D0
FAN SUPPORT | Not Available | ||
| 52 | 236L0-10002-A0
FAN MOTOR | Low Stock | 19.99 | |
| 53 | 23300-10010-A0
NOISE FILTER | In Stock | 9.99 | |
| 54 | 23300-10010-A0
NOISE FILTER | In Stock | 9.99 | |
| 55 | 23750-10012-A0
THERMOSTAT | In Stock | 9.99 | |
| 56 | 21299-00282-C0
THERMOSTAT SUPPORT | Not Available | ||
| 57 | 23110-10002-B0
MAGNETRON | Low Stock | 25.99 | |
| 58 | 23400-00084-A0
ELECTRIC WIRE GROUP | Low Stock | 4.99 | |
| 59 | 23730-10115-A0
TEMPERATURE RESISTOR | In Stock | 8.99 | |
| 60 | 50100-00187-C0
CAVITY | Not Available | ||
| 61 | 21599-00069-B0
SLEEVE | Not Available | ||
| 62 | 21299-00307-B0
FAN VANE | Low Stock | 10.99 | |
| 63 | 23500-10061-B0
HEATING TUBE | On Order | 19.99 | |
| 64 | 29400-00002-A0
FIX HOOK | Low Stock | 9.99 | |
| 65 | 21199-00499-F0
HOT WIND CAVITY | Not Available | ||
| 66 | 21299-00271-G0
HEAT-PROOF BOARD | Not Available | ||
| 67 | 21599-00068-B0
SLEEVE | Not Available | ||
| 68 | 21299-00398-A0
FAN VANE | In Stock | 10.99 | |
| 69 | 21299-00397-E0
MOTOR STAND | Not Available | ||
| 70 | 236L0-10037-A0
CONVECTION MOTOR | In Stock | 14.99 | |
| 71 | 21199-00324-H0
BACK COVER | Not Available | ||
| 72 | 22300-00014-B0
STOP POLE | Not Available | ||
| 73 | 23750-10018-A0
THERMOSTAT | In Stock | 19.99 | |
| 74 | 29300-00011-D0
ADIABATIC COTTON | Not Available | ||
| 75 | 21199-01746-A0
MANTLE | Not Available | ||
| 76 | 21299-00273-A0
HEAT-PROOF BOARD | Not Available | ||
| 77 | 23500-10012-A0
QUARTZ TUBE | In Stock | 4.99 | |
| 79 | 21299-00201-A0
UP BEARING | Low Stock | 12.99 | |
| 80 | 21299-00579-B0
QUARTZ TUBE SUPPORT | Not Available | ||
| 81 | 29100-00004-B0
SPLASH-PROOF BOARD | Not Available | ||
| 82 | 23410-10095-B0
POWER WIRE | In Stock | 9.99 | |
| 83 | 22200-00203-B0
WASHER | Not Available | ||
| 84 | 22300-00018-A0
CONNECTOR | In Stock | 8.99 | |
| 85 | 22300-00038-A0
ROLLER SUPPORT | In Stock | 9.99 | |
| 86 | 25100-00004-A0
GLASS PLATE | Low Stock | 24.99 | |
| 87 | 21599-00511-A0
GRILL RACK | In Stock | 13.99 | |
Functions
â–ªConvention cooking
â–ªTimer
â–ªLED Clock
â–ªChild safety lock
â–ªPause and cancel operation
â–ªCooking programmes: 6
â–ªPower Levels: 5
Technical Specifications
Dimensions Unpacked
592x530x390mm
592x530x390mm
Dimensions Packed
660x550x460mm
660x550x460mm
Weight Unpacked
15.5kg
15.5kg
Weight Packed
17kg
17kg
Fuse Rating
13Amp
13Amp
Grill Power Rating
1200W
1200W
Capacity
25L
25L
Microwave Power
900W
900W
Glass Plate Diameter
315mm
315mm
Connection Type
BST 3 Pin Plug
BST 3 Pin Plug
Description
Our microwave and grill combines everything you need in the kitchen into one compact and stylish appliance. Plus the stylish LED display clearly shows the timer to ensure you can keep an eye on your cooking timings. A great safety feature is the child lock, so you don’t need to worry about any young prying hands.
