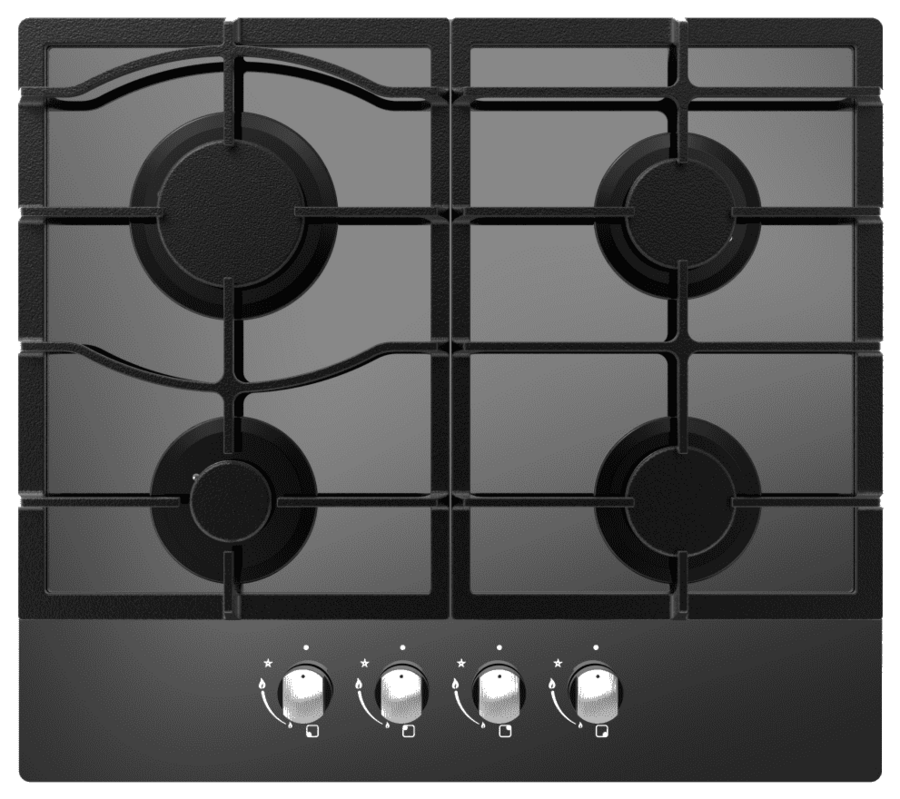

60CM 4 BURNER GAS ON GLASS HOB
WRGOGH60

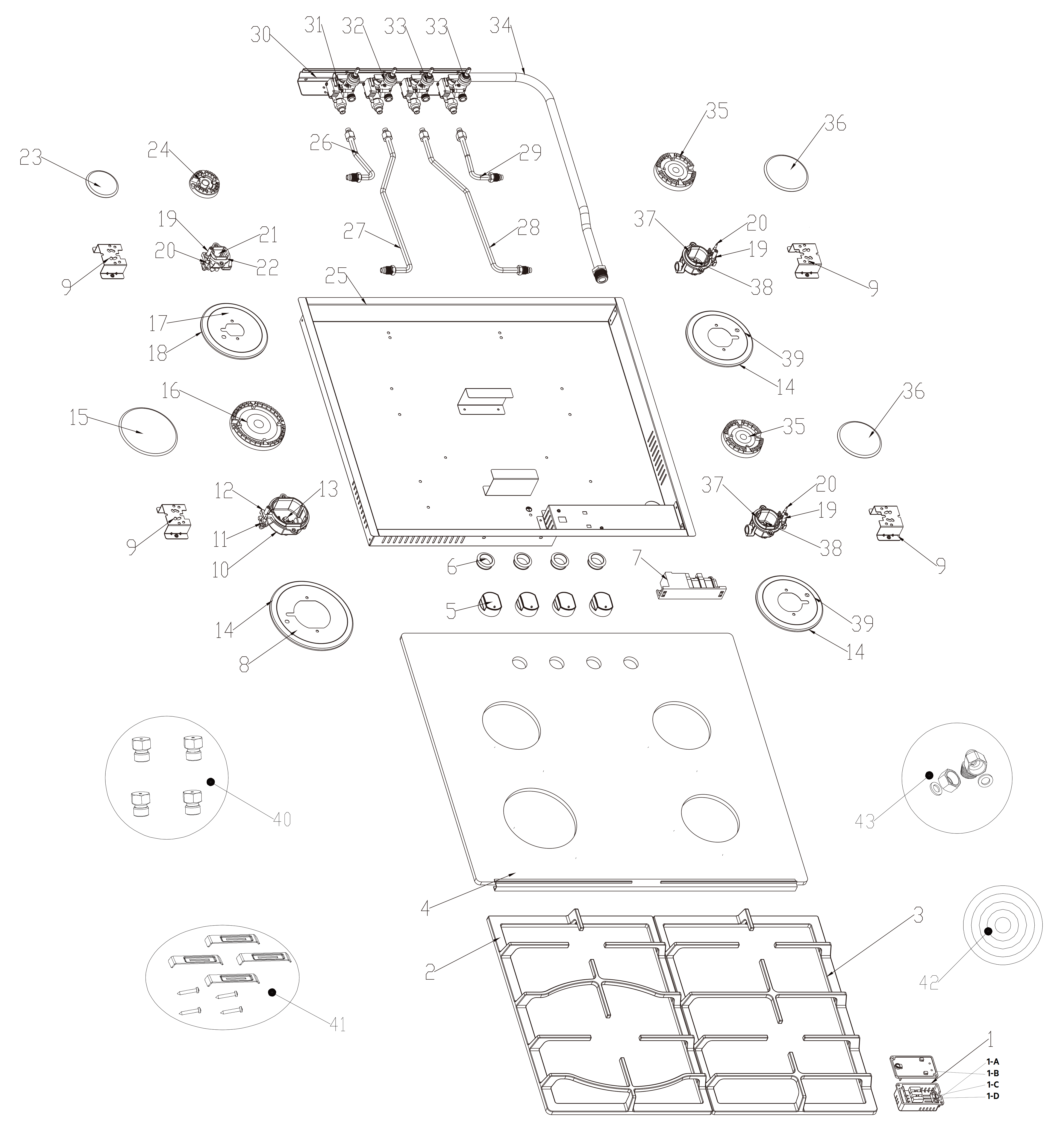

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1-A | 1.02.03.10.0010
JUNCTION BOX - COVER | In Stock | 3.99 | |
| 1-B | 1.02.03.10.0009
JUNCTION BOX - BASE | In Stock | 10.99 | |
| 1-C | 1.02.03.10.0011
JUNCTION BOX - CABLE CLAMP | Low Stock | 3.99 | |
| 1-D | 1.04.03.08.0002
JUNCTION BOX - TERMINAL | In Stock | 4.99 | |
| 2 | 1.06.03.07.0124
PAN STAND (CAST IRON) - LEFT | Low Stock | 19.99 | |
| 3 | 1.06.03.07.0123
PAN STAND (CAST IRON) - RIGHT | Low Stock | 19.99 | |
| 4 | 2.01.03.01.0009
GLASS PANEL ASSEMBLY | Low Stock | 49.99 | |
| 5 | 1.02.03.01.0004
KNOB | In Stock | 5.99 | |
| 6 | 1.10.03.04.0013
GASKET (WAS 4.2.6142004) | Low Stock | 3.99 | |
| 7 | 1.04.03.05.0012
IMPULSE IGNITION DEVICE 220-240V (WAS 3.4.2200004) | In Stock | 14.99 | |
| 8 | 1.01.03.03.0034
RAPID WATER TRAY | On Order | 8.99 | |
| 9 | 1.01.03.04.0058
STOVE HEND SUPPORT | Not Available | ||
| 10 | 1.06.03.03.0010
BURNER CUP | In Stock | 7.99 | |
| 11 | 1.04.03.04.0043
THERMOCOUPLE - 500MM (WAS 3.2.1100450) | In Stock | 15.99 | |
| 12 | 1.04.03.03.0030
IGNITION ELECTRODE - 250MM (WAS 3.3.1000250) | In Stock | 12.99 | |
| 13 | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 14 | 1.10.03.04.0005
GASKET | In Stock | 8.99 | |
| 15 | 1.06.03.05.0019
RAPID BURNER CAP (WAS 1.6.224022-TH) | In Stock | 10.99 | |
| 16 | 1.06.03.04.0007
RAPID BURNER DIVIDER (WAS 1.6.2220215-TH) | In Stock | 12.99 | |
| 17 | 1.01.03.03.0059
AUX WATER TRAY | On Order | 8.99 | |
| 18 | 1.10.03.04.0007
GASKET | In Stock | 8.99 | |
| 19 | 1.04.03.03.0033
IGNITION PIN-400MM (WAS 3.3.1100550) | Low Stock | 11.99 | |
| 20 | 1.04.03.04.0039
THERMOCOUPLE - 250MM (WAS 3.3.1100250) | In Stock | 13.99 | |
| 21 | 1.06.03.06.0043
NOZZLE - NG - 0.74 (WAS 1.8.2010074) | In Stock | 4.99 | |
| 22 | 1.06.03.03.0017
END OF 4 CUPS | In Stock | 10.99 | |
| 23 | 1.06.03.05.0030
BURNER CAP (WAS 1.6.2440022-TH) | In Stock | 8.99 | |
| 24 | 1.06.03.04.0015
FLAME SPREADER (WAS 1.6.2420215-TH) | In Stock | 12.99 | |
| 25 | 2.01.03.01.0009
GLASS PANEL ASSEMBLY | Low Stock | 49.99 | |
| 26 | 1.06.03.02.0240
LOWER LEFT FURNACE TUBE | Low Stock | 4.99 | |
| 27 | 1.06.03.02.0239
TOP LEFT FURNACE TUBE | Low Stock | 4.99 | |
| 28 | 1.06.03.02.0238
UPPER RIGHT FURNACE TUBE | Low Stock | 4.99 | |
| 29 | 1.06.03.02.0237
FURNACE TUBE LOWER RIGHT | Low Stock | 4.99 | |
| 30 | 1.01.03.04.0008
THE VALVE BODY STENTS | Not Available | ||
| 31 | 2.03.03.02.0065
SAFETY VALVE - 0.65/NG (WAS 1.7.1152602-TT) | In Stock | 19.99 | |
| 32 | 2.03.03.02.0067
SAFETY VALVE 0.85/NG (WAS 1.7.1152604) | In Stock | 19.99 | |
| 33 | 2.03.03.02.0066
SAFETY VALVE 0.72/NG (WAS 1.7.1152603-TT) | In Stock | 19.99 | |
| 34 | 1.06.03.01.0059
INLET PIPE | Not Available | ||
| 35 | 1.06.03.04.0010
FLAME SPREADER (WAS 1.6.2320215-TH) | In Stock | 12.99 | |
| 36 | 1.06.03.05.0024
BURNER CAP (WAS 1.6.2340022-TH) | In Stock | 8.99 | |
| 37 | 1.06.03.03.0012
THE END OF THE NO. 3 CUP | Not Available | ||
| 38 | 1.06.03.06.0048
NOZZLE - NG - 0.98 (WAS 1.8.2010098) | In Stock | 3.99 | |
| 39 | 1.01.03.03.0049
SEMI-RAPID WATER TRAY | Low Stock | 8.99 | |
| 40-A | 1.06.03.06.0036
LPG NOZZLE 0.88 | In Stock | 3.99 | |
| 40-B | 1.06.03.06.0033
LPG NOZZLE 0.69 (WAS 1.8.1010069) | In Stock | 3.99 | |
| 40-C | 1.06.03.06.0029
LPG NOZZLE 0.51 (WAS 1.8.1010051) | In Stock | 3.99 | |
| 41 | 1.01.03.10.0008
MOUNTING CLAMPS AND SCREWS (WAS 1.3.0000004) | In Stock | 9.99 | |
| 42 | 1.11.03.04.0003
HOB MOUNTING GASKET (WAS 5.6.0000002) | On Order | 5.99 | |
| 43-A | 1.06.03.10.0024
90 DEG ELBOW HALF INCH MALE TO FEMALE (WAS 1.9.0000003) | Not Available | ||
| 43-B | 1.10.03.03.0001
PACKING WASHER (WAS 4.2.0000001) | In Stock | 2.99 | |
Technical Specifications
Number of Burners
Pan Supports
Flame Failure Device
Control Location
Indicator Light
Auto Ignition
Wok Burner
LPG Kit Included
Cut Out Size
Description
