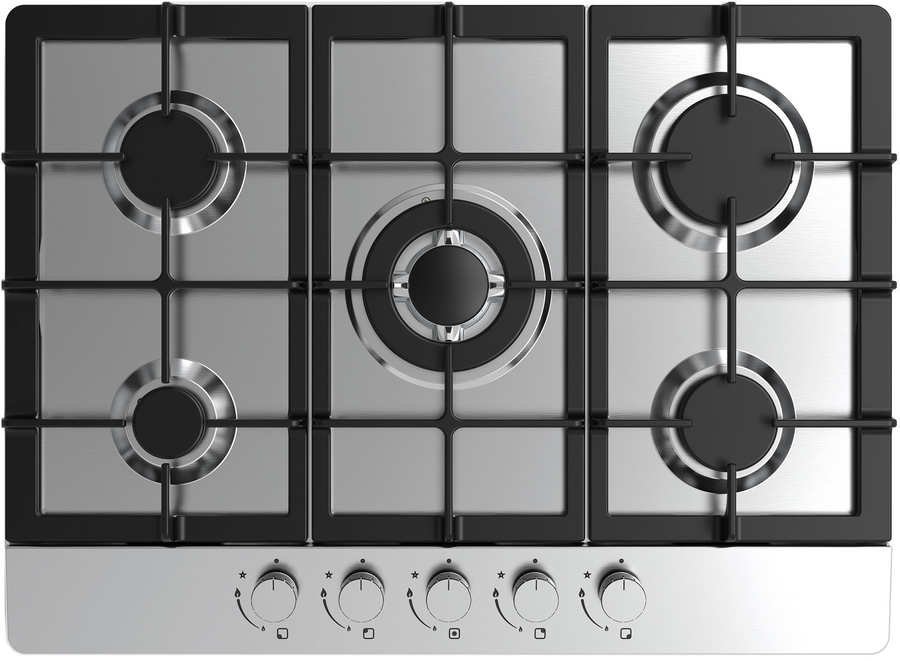

70CM GAS HOB (REFER TO OLD AND NEW PARTS MANUAL)
WRGH70

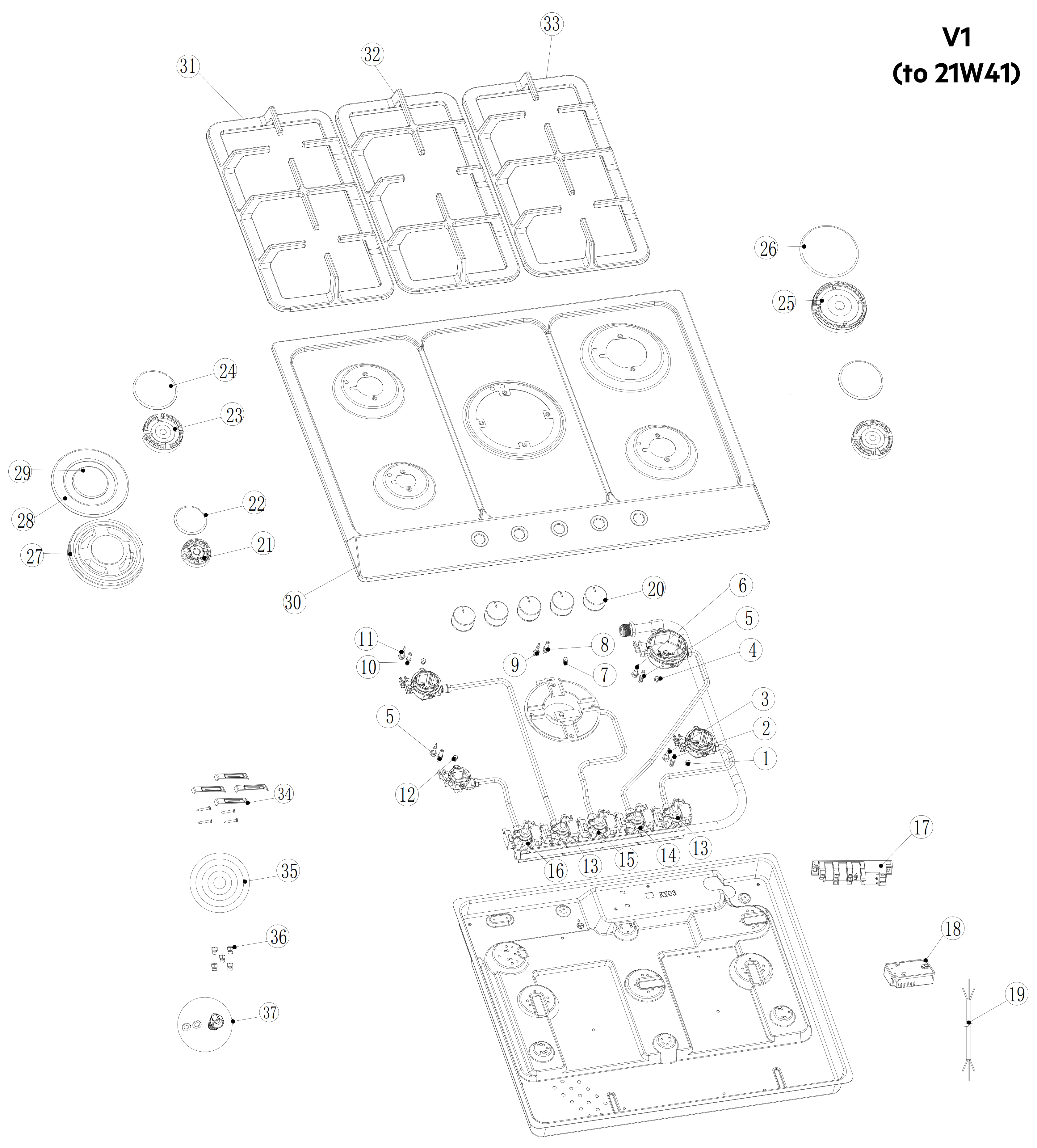

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.06.03.06.0048
NOZZLE - NG - 0.98 (WAS 1.8.2010098) | In Stock | 3.99 | |
| 2 | 1.04.03.03.0035
IGNITION ELECTRODE - 500MM (WAS 3.2.100050) | Low Stock | 10.99 | |
| 3 | 1.04.03.04.0039
THERMOCOUPLE - 250MM (WAS 3.3.1100250) | In Stock | 13.99 | |
| 4 | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 5 | 1.04.03.03.0033
IGNITION ELECTRODE - 400MM (WAS 3.3.1100550) | Low Stock | 11.99 | |
| 6 | 1.04.03.04.0044
THERMOCOUPLE - 550MM (3.3.1100550) | Low Stock | 13.99 | |
| 7 | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 8 | 1.04.03.03.0023
IGNITION ELECTRODE - 250MM (WAS 3.2.3000 | Low Stock | 5.99 | |
| 9 | 1.04.03.04.0012
THERMOCOUPLE - 350MM | In Stock | 15.99 | |
| 10 | 1.04.03.03.0030
IGNITION ELECTRODE - 250MM (WAS 3.3.1000250) | In Stock | 12.99 | |
| 11 | 1.04.03.04.0043
THERMOCOUPLE - 500MM (WAS 3.2.1100450) | In Stock | 15.99 | |
| 12 | 1.06.03.06.0043
NOZZLE - NG - 0.74 (WAS 1.8.2010074) | In Stock | 4.99 | |
| 13 | 2.03.03.02.0010
SAFETY VALVE 0.72 NG (WAS 1.7.1157607) (OLD HOB) | Not Available | ||
| 14 | 2.03.03.02.0014
SAFETY VALVE 0.85 NG (WAS 1.7.1157608) (OLD HOB) | Not Available | ||
| 15 | 2.03.03.02.0016
SAFETY VALVE 0.99 NG (WAS 1.7.1157609) (OLD HOB) | Not Available | ||
| 16 | 2.03.03.02.0006
SAFETY VALVE 0.65 NG (WAS 1.7.1157606) (OLD HOB) | Not Available | ||
| 17 | 1.04.03.05.0014
IMPULSIVE IGNITION DEVICE (WAS 3.4.1270005) | In Stock | 9.99 | |
| 18-A | 1.04.03.08.0002
JUNCTION BOX - TERMINAL | In Stock | 4.99 | |
| 18-B | 1.02.03.10.0010
JUNCTION BOX - COVER | In Stock | 3.99 | |
| 18-C | 1.02.03.10.0009
JUNCTION BOX - BASE | In Stock | 10.99 | |
| 18-D | 1.02.03.10.0011
JUNCTION BOX - CABLE CLAMP | Low Stock | 3.99 | |
| 19 | 1.04.03.01.0007
POWER CORD | In Stock | 8.99 | |
| 20 | 1.02.03.01.0005
KNOB $$$ (BECOMES 1.02.03.01.0030) | In Stock | 4.99 | |
| 21 | 1.06.03.04.0015
FLAME SPREADER (WAS 1.6.2420215-TH) | In Stock | 12.99 | |
| 22 | 1.06.03.05.0030
BURNER CAP (WAS 1.6.2440022-TH) | In Stock | 8.99 | |
| 23 | 1.06.03.04.0010
FLAME SPREADER (WAS 1.6.2320215-TH) | In Stock | 12.99 | |
| 24 | 1.06.03.05.0024
BURNER CAP (WAS 1.6.2340022-TH) | In Stock | 8.99 | |
| 25 | 1.06.03.04.0007
RAPID BURNER DIVIDER (WAS 1.6.2220215-TH) | In Stock | 12.99 | |
| 26 | 1.06.03.05.0019
RAPID BURNER CAP (WAS 1.6.224022-TH) | In Stock | 10.99 | |
| 27 | 1.06.03.04.0017
1# FLAME SPREADER | In Stock | 10.99 | |
| 28 | 1.06.03.05.0033
OUTER RING BURNER CAP (WAS 1.6.2150022-TH) | Low Stock | 8.99 | |
| 29 | 1.06.03.05.0037
INNER RING BURNER CAP (WAS 1.6.2160022-T | In Stock | 8.99 | |
| 30 | 2.03.03.01.0008
PANEL (WAS 1.1.7351001) (OLD HOB) | Not Available | ||
| 31 | 1.06.03.07.0029
LEFT/RIGHT PAN STAND (WAS 7.1.7351003) | Low Stock | Contact Us | |
| 32 | 1.06.03.07.0028
MIDDLE PAN STAND (WAS 7.1.7351004) | Not Available | ||
| 33 | 1.06.03.07.0029
LEFT/RIGHT PAN STAND (WAS 7.1.7351003) | Low Stock | Contact Us | |
| 34-A | 1.01.03.10.0008
MOUNTING CLAMPS AND SCREWS (WAS 1.3.0000004) | In Stock | 9.99 | |
| 34-B | 1.07.00.01.0093
4 X SCREWS (WAS 6.3.1101251) | In Stock | 7.99 | |
| 35 | 1.11.03.04.0003
HOB MOUNTING GASKET (WAS 5.6.0000002) | On Order | 5.99 | |
| 36-A | 1.06.03.06.0036
LPG NOZZLE 0.88 | In Stock | 3.99 | |
| 36-B | 1.06.03.06.0033
LPG NOZZLE 0.69 (WAS 1.8.1010069) | In Stock | 3.99 | |
| 36-C | 1.06.03.06.0029
LPG NOZZLE 0.51 (WAS 1.8.1010051) | In Stock | 3.99 | |
| 36-D | 1.06.03.06.0034
LPG NOZZLE 0.81 (WAS 1.8.1010081) | In Stock | 3.99 | |
| 37-A | 1.06.03.10.0024
90 DEG ELBOW HALF INCH MALE TO FEMALE (WAS 1.9.0000003) | Not Available | ||
| 37-B | 1.10.03.03.0001
PACKING WASHER (WAS 4.2.0000001) | In Stock | 2.99 | |
| Drawing 2 | ||||
| 1 | 1.06.03.06.0048
NOZZLE - NG - 0.98 (WAS 1.8.2010098) | In Stock | 3.99 | |
| 2 | 1.04.03.03.0035
IGNITION ELECTRODE - 500MM (WAS 3.2.100050) | Low Stock | 10.99 | |
| 3 | 1.04.03.04.0039
THERMOCOUPLE - 250MM (WAS 3.3.1100250) | In Stock | 13.99 | |
| 4 | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 5 | 1.04.03.03.0033
IGNITION ELECTRODE - 400MM (WAS 3.3.1100550) | Low Stock | 11.99 | |
| 6 | 1.04.03.04.0044
THERMOCOUPLE - 550MM (3.3.1100550) | Low Stock | 13.99 | |
| 7 | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 8 | 1.04.03.03.0023
IGNITION ELECTRODE - 250MM (WAS 3.2.3000 | Low Stock | 5.99 | |
| 9 | 1.04.03.04.0012
THERMOCOUPLE - 350MM | In Stock | 15.99 | |
| 10 | 1.04.03.03.0030
IGNITION ELECTRODE - 250MM (WAS 3.3.1000250) | In Stock | 12.99 | |
| 11 | 1.04.03.04.0043
THERMOCOUPLE - 500MM (WAS 3.2.1100450) | In Stock | 15.99 | |
| 12 | 1.06.03.06.0043
NOZZLE - NG - 0.74 (WAS 1.8.2010074) | In Stock | 4.99 | |
| 13 | 2.03.03.02.0009
SAFETY VALVE 0.72 (WAS 1.7.1152603-TT) | In Stock | 24.99 | |
| 14 | 2.03.03.02.0013
SAFETY VALVE 0.85 (WAS 1.7.1152604-TT) | Not Available | ||
| 15 | 2.03.03.02.0015
SAFETY VALVE 0.99 NG | Not Available | ||
| 16 | 2.03.03.02.0005
SAFETY VALVE 0.65 (WAS 1.7.1152602-TT) | Not Available | ||
| 17 | 1.04.03.05.0014
IMPULSIVE IGNITION DEVICE (WAS 3.4.1270005) | In Stock | 9.99 | |
| 18-A | 1.04.03.08.0002
JUNCTION BOX - TERMINAL | In Stock | 4.99 | |
| 18-B | 1.02.03.10.0010
JUNCTION BOX - COVER | In Stock | 3.99 | |
| 18-C | 1.02.03.10.0009
JUNCTION BOX - BASE | In Stock | 10.99 | |
| 18-D | 1.02.03.10.0011
JUNCTION BOX - CABLE CLAMP | Low Stock | 3.99 | |
| 19 | 1.04.03.01.0007
POWER CORD | In Stock | 8.99 | |
| 20 | 1.02.03.01.0005
KNOB $$$ (BECOMES 1.02.03.01.0030) | In Stock | 4.99 | |
| 21 | 1.06.03.04.0015
FLAME SPREADER (WAS 1.6.2420215-TH) | In Stock | 12.99 | |
| 22 | 1.06.03.05.0030
BURNER CAP (WAS 1.6.2440022-TH) | In Stock | 8.99 | |
| 23 | 1.06.03.04.0010
FLAME SPREADER (WAS 1.6.2320215-TH) | In Stock | 12.99 | |
| 24 | 1.06.03.05.0024
BURNER CAP (WAS 1.6.2340022-TH) | In Stock | 8.99 | |
| 25 | 1.06.03.04.0007
RAPID BURNER DIVIDER (WAS 1.6.2220215-TH) | In Stock | 12.99 | |
| 26 | 1.06.03.05.0019
RAPID BURNER CAP (WAS 1.6.224022-TH) | In Stock | 10.99 | |
| 27 | 1.06.03.04.0017
1# FLAME SPREADER | In Stock | 10.99 | |
| 28 | 1.06.03.05.0033
OUTER RING BURNER CAP (WAS 1.6.2150022-TH) | Low Stock | 8.99 | |
| 29 | 1.06.03.05.0037
INNER RING BURNER CAP (WAS 1.6.2160022-T | In Stock | 8.99 | |
| 30 | 2.03.03.01.0035
HOB PANEL | Low Stock | Contact Us | |
| 31 | 1.06.03.07.0106
PAN STAND - LEFT SIDE | In Stock | 19.99 | |
| 32 | 1.06.03.07.0107
MIDDLE PAN STAND | In Stock | 19.99 | |
| 33 | 1.06.03.07.0108
RIGHT PAN STAND | In Stock | 19.99 | |
| 34-A | 1.01.03.10.0008
MOUNTING CLAMPS AND SCREWS (WAS 1.3.0000004) | In Stock | 9.99 | |
| 34-B | 1.07.00.01.0093
4 X SCREWS (WAS 6.3.1101251) | In Stock | 7.99 | |
| 35 | 1.11.03.04.0003
HOB MOUNTING GASKET (WAS 5.6.0000002) | On Order | 5.99 | |
| 36-A | 1.06.03.06.0036
LPG NOZZLE 0.88 | In Stock | 3.99 | |
| 36-B | 1.06.03.06.0033
LPG NOZZLE 0.69 (WAS 1.8.1010069) | In Stock | 3.99 | |
| 36-C | 1.06.03.06.0029
LPG NOZZLE 0.51 (WAS 1.8.1010051) | In Stock | 3.99 | |
| 36-D | 1.06.03.06.0034
LPG NOZZLE 0.81 (WAS 1.8.1010081) | In Stock | 3.99 | |
| 37-A | 1.06.03.10.0024
90 DEG ELBOW HALF INCH MALE TO FEMALE (WAS 1.9.0000003) | Not Available | ||
| 37-B | 1.10.03.03.0001
PACKING WASHER (WAS 4.2.0000001) | In Stock | 2.99 | |
