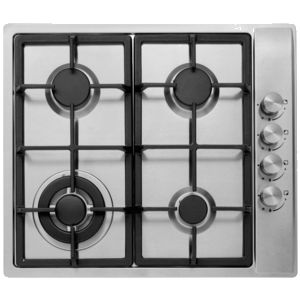

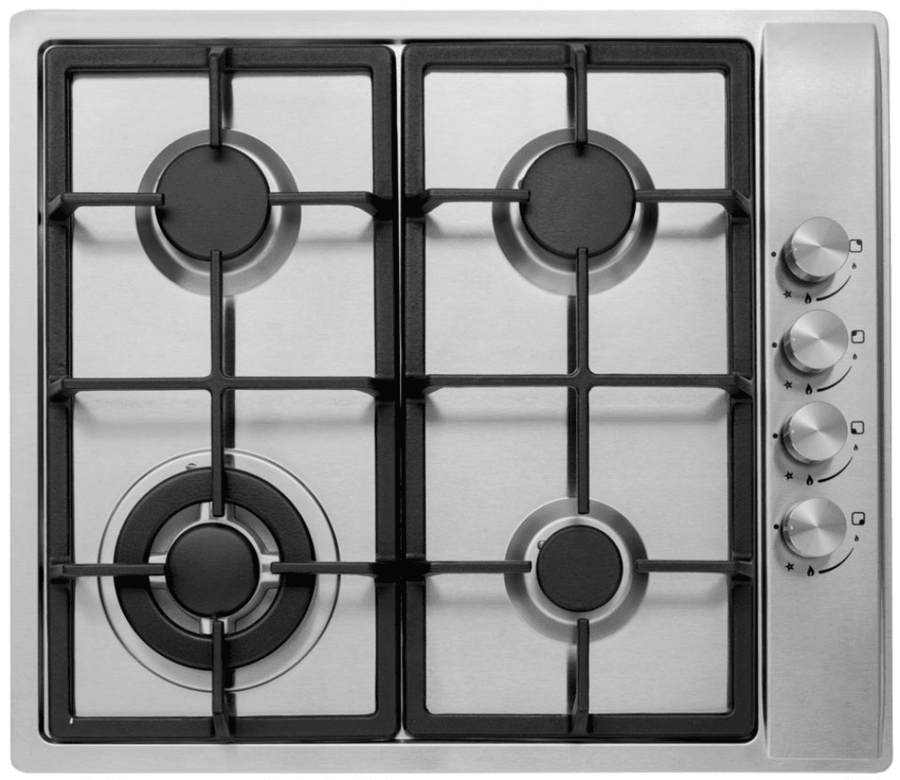

60CM GAS HOB
WRGH60

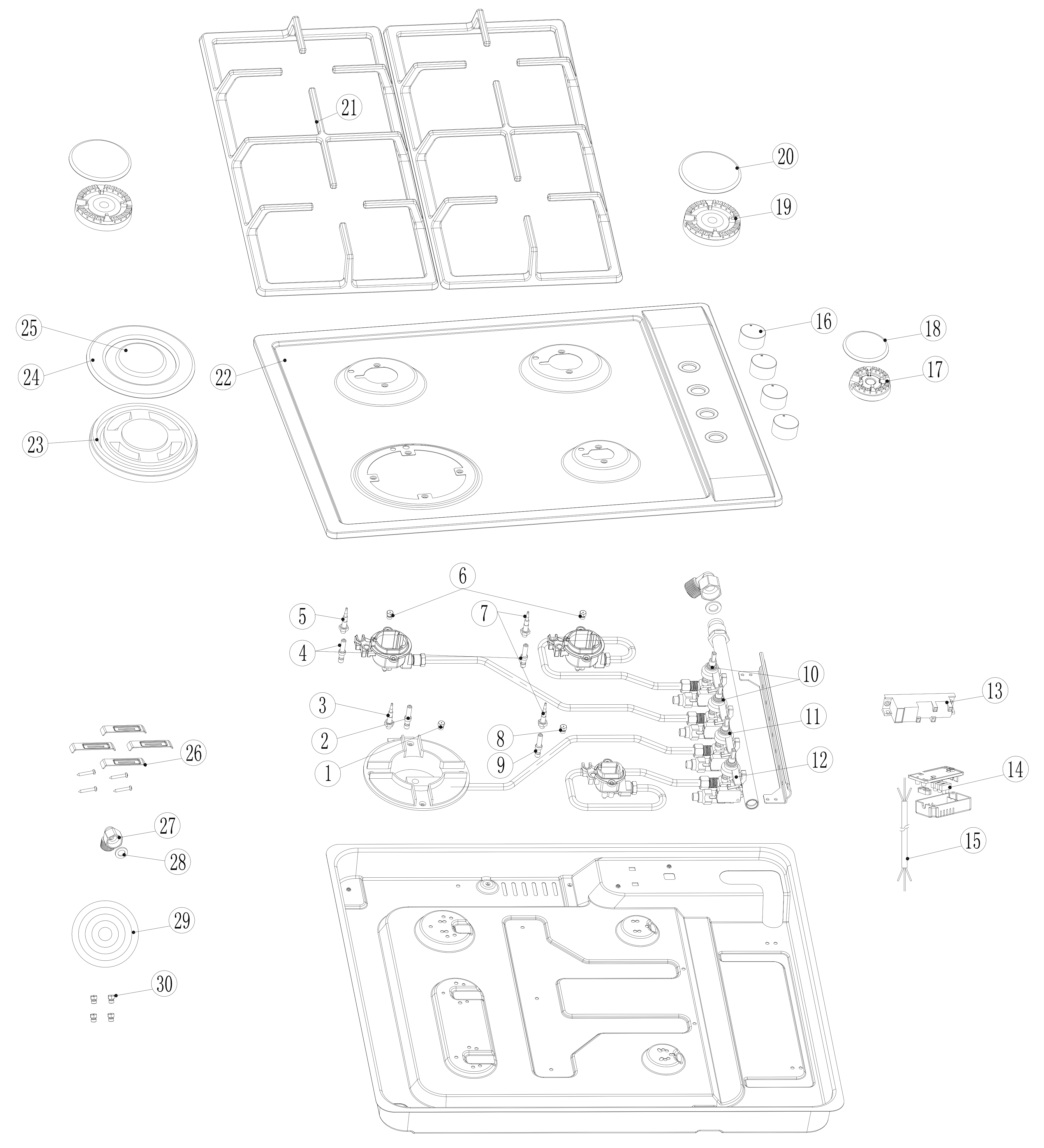

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1-New PN | 1.06.03.06.0051
NOZZLE - NG - 1.24 (WAS 1.8.2010124) | In Stock | 3.99 | |
| 1-Old PN | 1.8.2010124
NOZZLE - NG - 1.24 (BECOMES 1.06.03.06.0051) | Low Stock | 4.99 | |
| 2 | 3.2.3000400
IGNITION ELECTRODE - 400MM | In Stock | 10.99 | |
| 3 | 3.3.2100450
THERMOCOUPLE - 450MM | In Stock | 13.99 | |
| 4-New PN | 1.04.03.03.0030
IGNITION ELECTRODE - 250MM (WAS 3.3.1000250) | In Stock | 12.99 | |
| 4-Old PN | 3.2.1000250
IGNITION PIN - 250MM (BECOMES 1.04.03.03.0030) | In Stock | 4.99 | |
| 5-New PN | 1.04.03.04.0044
THERMOCOUPLE - 550MM (3.3.1100550) | Low Stock | 13.99 | |
| 5-Old PN | 3.3.1100550
THERMOCOUPLE - 550MM (BECOMES 1.04.03.04.0044) | In Stock | 13.99 | |
| 6-New PN | 1.06.03.06.0048
NOZZLE - NG - 0.98 (WAS 1.8.2010098) | In Stock | 3.99 | |
| 6-Old PN | 1.8.2010098
NOZZLE - NG - 0.98 (BECOMES 1.06.03.06.0048) | In Stock | 4.99 | |
| 7-New PN | 1.04.03.04.0039
THERMOCOUPLE - 250MM (WAS 3.3.1100250) | In Stock | 13.99 | |
| 7-Old PN | 3.3.1100250
THERMOCOUPLE - 250MM (BECOMES 1.04.03.04.0039) | In Stock | 13.99 | |
| 8-New PN | 1.06.03.06.0043
NOZZLE - NG - 0.74 (WAS 1.8.2010074) | In Stock | 4.99 | |
| 8-Old PN | 1.8.2010074
NOZZLE - NG - 0.74 (BECOMES 1.06.03.06.0043) | In Stock | 4.99 | |
| 9 | 3.2.1000400
IGNITION ELECTRODE - 400MM | In Stock | 4.99 | |
| 10-New PN | 2.03.03.02.0041
SAFETY VALVE - 0.72 (WAS 1.7.1152603) | In Stock | 19.99 | |
| 10-Old PN | 1.7.1152603
SAFETY VALVE - 0.72 $$$ (USE 20303020041) | In Stock | 19.99 | |
| 11-New PN | 2.03.03.02.0068
SAFETY VALVE - 0.99/NG (WAS 171152605TT) | In Stock | 19.99 | |
| 11-Old PN | 1.7.1152605-TT
SAFETY VALVE - 0.99 (BECOMES 20303020068) | Not Available | ||
| 12-New PN | 2.03.03.02.0065
SAFETY VALVE - 0.65/NG (WAS 1.7.1152602-TT) | In Stock | 19.99 | |
| 12-Old PN | 1.7.1152602-TT
SAFETY VALVE - 0.65 (BECOMES 2.03.03.02.0065) | In Stock | 19.99 | |
| 13-New PN | 1.04.03.05.0012
IMPULSE IGNITION DEVICE 220-240V (WAS 3.4.2200004) | Low Stock | 14.99 | |
| 13-Old PN | 3.4.2200004
IMPULSE IGNITION DEVICE (BECOMES 1.04.03.05.0012) | In Stock | 14.99 | |
| 14-New PN | 1.02.03.10.0010
TERMINAL BLOCK (WAS 4.1.0000005) | In Stock | 3.99 | |
| 14-Old PN | 4.1.0000005
TERMINAL BLOCK $$$ (BECOMES 1.02.03.10.0010) | In Stock | 3.99 | |
| 15-New PN | 1.04.03.01.0007
POWER CORD (WAS 3.1.0000001) | In Stock | 8.99 | |
| 15-Old PN | 3.1.0000001
POWER CORD (BECOMES 1.04.03.01.0007) | Low Stock | 5.99 | |
| 16-New PN | 1.02.03.01.0030
CONTROL KNOB (WAS 8.3.0016072 / 1.02.03.01.0005) | In Stock | 4.99 | |
| 16-Old PN | 8.3.0016072
CONTROL KNOB $$$ (BECOMES 1.02.03.01.0030) | Low Stock | 4.99 | |
| 17-New PN | 1.06.03.04.0015
4# FLAME SPREADER (WAS 1.6.2420215-TH) | In Stock | 12.99 | |
| 17-Old PN | 1.6.2420215-TH
4# BURNER DIVIDER (BECOMES 1.06.03.04.0015) | In Stock | 10.99 | |
| 18-New PN | 1.06.03.05.0030
4# BURNER CAP (WAS 1.6.2440022-TH) | In Stock | 8.99 | |
| 18-Old PN | 1.6.2440022-TH
4# BURNER CAP (55MM DIAMETER) (BECOMES 1.06.03.05.0030) | In Stock | 8.99 | |
| 19-New PN | 1.06.03.04.0010
3# FLAME SPREADER (WAS 1.6.2320215-TH) | In Stock | 12.99 | |
| 19-Old PN | 1.6.2320215-TH
3# BURNER DIVIDER (BECOMES 1.06.03.04.0010) | In Stock | 10.99 | |
| 20-New PN | 1.06.03.05.0024
3# BURNER CAP (WAS 1.6.2340022-TH) | In Stock | 8.99 | |
| 20-Old PN | 1.6.2340022-TH
3# BURNER CAP (75MM DIAMETER) (BECOMES 1.06.03.05.0024) | Low Stock | 9.99 | |
| 21-New PN | 1.06.03.07.0008
CAST IRON FRAME (WAS 7.1.6141082) | Not Available | ||
| 21-Old PN | 7.1.6141082
CAST IRON PAN STAND (BECOMES 1.06.03.07.0008 ) | Not Available | ||
| 22 | 1.1.6141001
STAINLESS STEEL PANEL | In Stock | 45.99 | |
| 23-New PN | 1.06.03.04.0017
1# FLAME SPREADER (WAS 1.6.2420215-TH) | In Stock | 10.99 | |
| 23-Old PN | 1.6.2120215-TH
1# FLAME SPREADER (BECOMES 1.06.03.04.0017) | In Stock | 10.99 | |
| 24-New PN | 1.06.03.05.0033
1# OUTER RING BURNER CAP (WAS 1.6.2150022-TH) | In Stock | 8.99 | |
| 24-Old PN | 1.6.2150022-TH
OUTER RING BURNER CAP (BECOMES 1.06.03.05.0033) | Low Stock | 10.99 | |
| 25-New PN | 1.06.03.05.0037
1# INNER RING BURNER CAP (WAS 1.6.2160022-T | In Stock | 8.99 | |
| 25-Old PN | 1.6.2160022-TH
INNER RING BURNER CAP (BECOMES 1.06.03.05.0037) | Not Available | ||
| 26 | 1.3.0000001
ACCESSORY BAG (HOOK AND SCREW) | In Stock | 4.99 | |
| 27-New PN | 1.06.03.10.0024
90 DEG ELBOW HALF INCH MALE TO FEMALE (WAS 1.9.0000003) | In Stock | 4.99 | |
| 27-Old PN | 1.9.0000003
CONNECTION ELBOW 90 DEGREE $$$ (USE 10603100024) | In Stock | 6.99 | |
| 28 | 1.10.03.03.0001
PACKING WASHER (WAS 4.2.0000001) | Low Stock | 2.99 | |
| 29 | 5.6.0000003
HOB MOUNTING GASKET | In Stock | 5.99 | |
| 30 | 1.8.1010088/69/51
LPG NOZZLE 0.88*1/0.69*2/0.51*1 | In Stock | 6.99 | |
Technical Specifications
Number of Burners
4
4
Pan Supports
Cast Iron
Cast Iron
Flame Failure Device
Yes
Yes
Control Location
Right Hand Side
Right Hand Side
Indicator Light
Auto Ignition
Yes
Yes
Wok Burner
Yes
Yes
LPG Kit Included
Yes
Yes
Cut Out Size
W: 555mm x D: 475mm
W: 555mm x D: 475mm
