H60xW590xD520 4 Zone Induction Hob - Hob to Hood

WRECOIND60

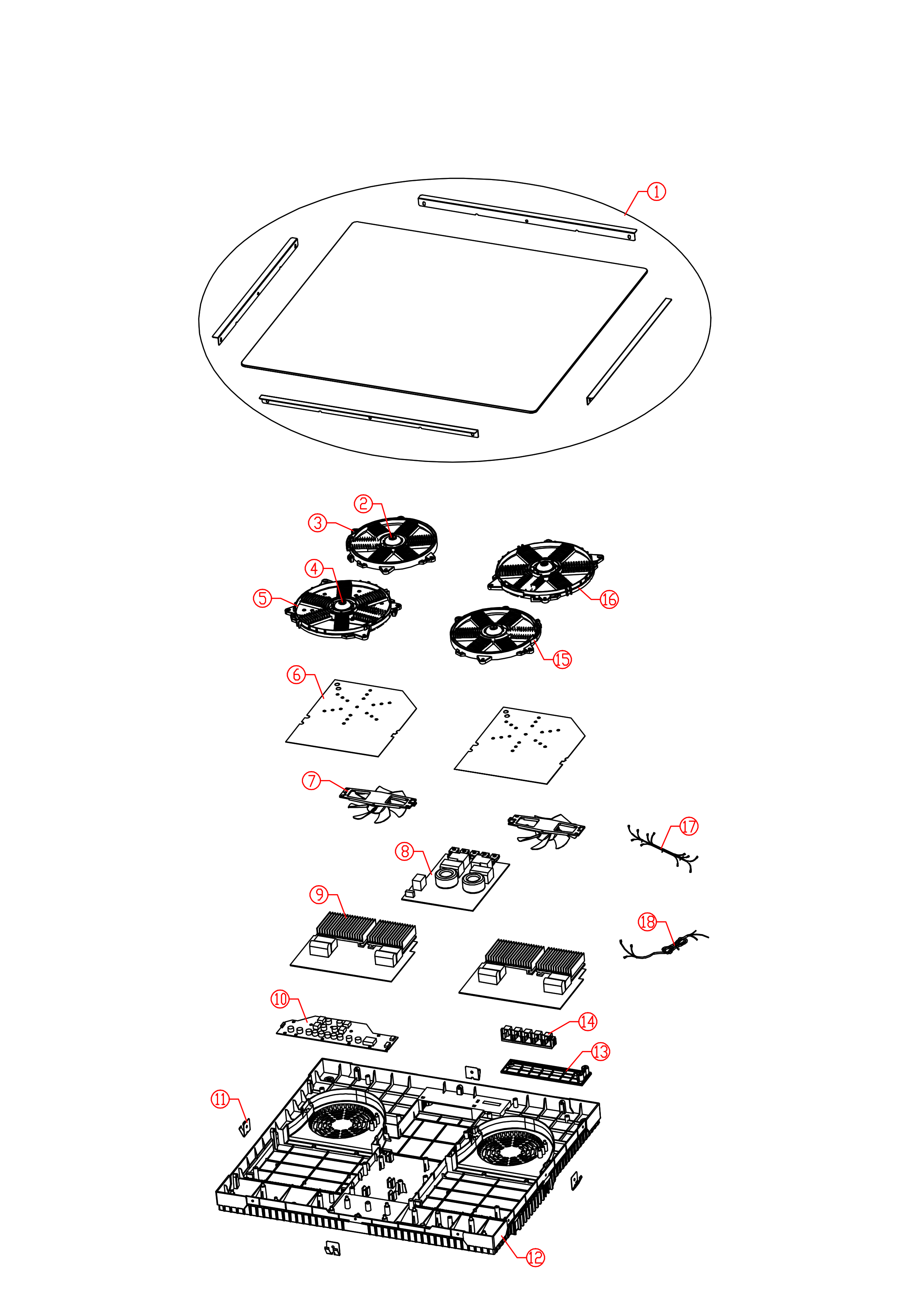

Drawing 1
Item# Part Details Availability £
Drawing 1
1 2.02.01.03.0177
WRECOIND60 CERAMIC GLASS+FRAME ASSEMBLY
Low Stock79.99
2 1.04.01.05.0017
COIL TEMPERATURE SENSOR ASSEMBLY
In Stock12.99
3 1.04.01.03.0008
160COIL ASSEMBLY (COIL)
In Stock25.99
4 1.04.01.05.0009
COIL TEMPERATURE SENSOR ASSEMBLY
In Stock12.99
5 2.02.01.04.0001
180COIL ASSEMBLY (COIL)+ALUMINIUM PLATE
In Stock25.99
6 1.09.01.01.0005
MICA PLATE
In StockContact Us
7 1.04.01.06.0004
FANS
In Stock19.99
8 1.05.01.01.0041
POWER BOARD
In Stock32.99
9 1.05.01.02.0056
MAIN BOARD
On Order35.99
10 1.05.01.03.0348
CONTROL BOARD (WAS 10501030311)
Not Available
11 1.01.01.10.0003
INSTALLATION SPRING
In Stock2.99
12 1.02.01.01.0006
PLASTICS BOTTOM
Not Available
13 1.02.01.01.0009
POWER CORD COVER
In Stock4.99
14 1.02.01.03.0003
WIRING BRACKET
In Stock3.99
15 1.04.01.03.0009
?160COIL ASSEMBLY (COIL)
In Stock25.99
16 1.04.01.03.0014
?180COIL ASSEMBLY (COIL)
In Stock27.99
17 2.02.01.02.0013
INTERNAL WIRING SET
In Stock8.99
18 1.04.01.01.0029
POWER CABLE
In Stock9.99
18-A K1.02.48-ITS72410L-00
POWER CABLE 32 AMP
Not Available
18-A1 1.04.01.01.0025
POWER CABLE - 32A 5-CORE (Alt: AA0000001278)
In Stock13.99

Functions

  • Automatic pan detection
  • Pause and keep warm
  • Timer
  • Safety shut off
  • Childproof lock
  • Power level management
  • Digital display
  • Boost setting
Technical Specifications

Dimensions Unpacked
590x520x60mm
Energy Rating
Dimensions Packed
650x595x110mm
Hob Type
Induction
Weight Packed
9.7kg
Weight Unpacked
8.5kg
Power Level Front Left
1500-2000W
Power Level Front Right
1200-2000W
Power Level Back Left
1200-1500w
Power Level Back Right
1500-2000W
Electrical Connection
Cable with Plug
Fuel Type
Electric
Cut Out Size
560 x 495mm
Description

Hob to hood - Our hob is equipped with hob to hood technology, meaning the hob can connect to any Viceroy cooker hoods and inset hoods. The hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the connected cooker hood will increase and decrease in line with the power level of the hob.

Plug and Play: Our hob is supplied with a British Standard 3 pin plug for ease of connection and be plugged into a standard 3 pin wall socket. The plug is switchable to 32amp if required.

Safety first - Our child lock function is there to give parents ease of mind when using our products. The controls can be locked to prevent unintended use. When the child lock is in use, all the controls except the off control are disable.

Stylish design - The stylish modern unbranded design that will go with any brand of oven with sleek touch control features including a pause and keep warm function, residual heat indicator, auto pan detection and timer.

Product Design

  • Number of zones/burners: 4
  • Hob surface: Glass
  • Booster: Yes
  • Power levels: 9
  • Safety features: Child lock
  • Colour: Black
  • Control Type: Touch
  • Display type: LED
