H250xW770xD520 Flex Zone Induction Venting Hob
WRDDH77

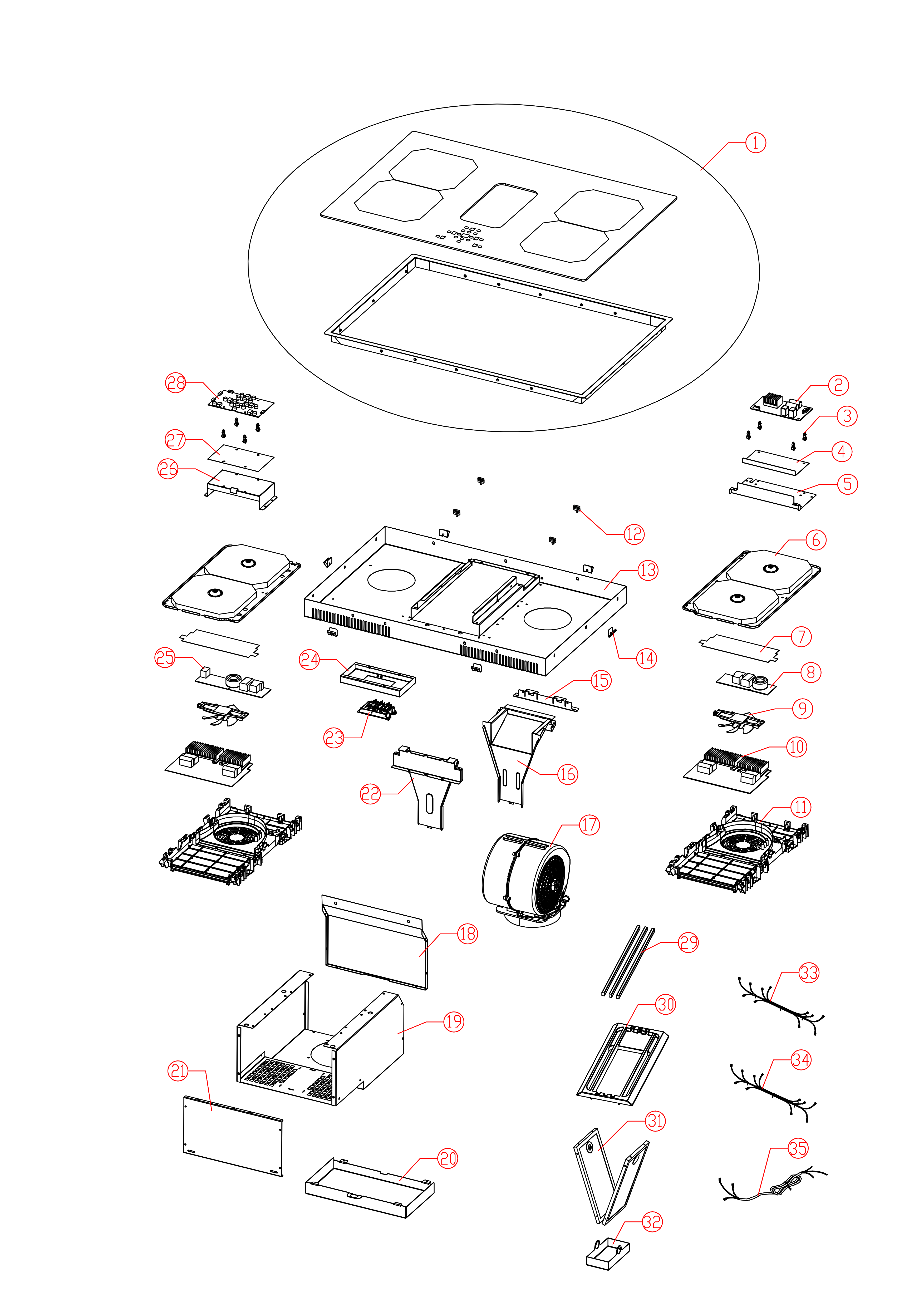

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.02.01.03.0178
WRDDH77 CERAMIC GLASS | Low Stock | 399.99 | |
| 2 | 1.05.04.01.0004
POWER BOARD | In Stock | 28.99 | |
| 3 | 1.02.01.10.0002
PCBA FIXED BRACKET | Low Stock | 3.99 | |
| 4 | 1.02.01.10.0008
POWER BOARD SPACER | Low Stock | 7.99 | |
| 5 | 1.01.04.10.0028
HOOD DUCT REAR COVER | Not Available | ||
| 6 | 1.04.01.03.0004
FLEXIBLE AREA COIL ASSEMBLY | In Stock | 44.99 | |
| 7 | 1.09.01.01.0009
MICA PLATE | In Stock | 5.99 | |
| 8 | 1.05.01.01.0044
VICE POWER BOARD(RIGHT) | In Stock | 13.99 | |
| 9 | 1.04.01.06.0004
FANS | In Stock | 19.99 | |
| 10 | 1.05.01.02.0060
MAIN BOARD | In Stock | 46.99 | |
| 11 | 1.02.01.01.0011
PLASTICS BOTTOM | Not Available | ||
| 12 | 1.02.03.10.0005
WIRE CLASP OF S TYPES | In Stock | Contact Us | |
| 13 | 1.01.01.01.0007
MATAL BASE | Not Available | ||
| 14 | 1.01.01.10.0003
INSTALLATION SPRING | In Stock | 2.99 | |
| 15 | 1.01.01.10.0010
FIXED PIECE | Not Available | ||
| 16 | 1.01.04.10.0058
HOOD FRONT AIRDUCT ASSEMBLY | Low Stock | Contact Us | |
| 17 | 1.04.04.06.0014
TURBOFAN | Low Stock | 69.99 | |
| 18 | 1.01.04.10.0032
HOOD BELLOWS REAR COVER | Not Available | ||
| 19 | 1.01.04.07.0010
HOOD BELLOWS | Low Stock | Contact Us | |
| 20 | 1.01.01.10.0014
OUTSIDE STORE WATER COVER | Low Stock | Contact Us | |
| 21 | 1.01.04.10.0033
HOOD BELLOWS FRONT COVER | Not Available | ||
| 22 | 1.01.04.10.0057
HOOD REAR AIRDUCT ASSEMBLY | Low Stock | Contact Us | |
| 23 | 2.02.01.10.0042
CONNECTION BOX | In Stock | 8.99 | |
| 24 | 1.01.01.10.0007
CONNECTION BOX BRACKET | Not Available | ||
| 25 | 1.05.01.01.0042
MAIN POWER BOARD(LEFT) | Low Stock | 18.99 | |
| 26 | 1.01.01.10.0008
CONNECTION BOX PROTECTIVE COVER | Low Stock | Contact Us | |
| 27 | 1.02.01.10.0009
CONTROL BOARD SPACER | In Stock | 7.99 | |
| 28 | 1.05.01.03.0095
CONTROL BOARD | On Order | 37.99 | |
| 29 | 1.06.01.04.0010
NET RACK MATAL TRIM(BLACK) | On Order | 6.99 | |
| 30 | 1.06.01.04.0004
INLET NET RACK | Low Stock | 14.99 | |
| 31 | 1.06.04.01.0007
FILTER SCREEN ASSEMBLY | In Stock | 18.99 | |
| 32 | 1.01.01.10.0013
INSIDE STORE WATER COVER | Low Stock | 4.99 | |
| 33 | 2.02.01.02.0035
SIGNAL LINE SET | Low Stock | 7.99 | |
| 34-1 | 1.04.01.02.0047
INTERNAL WIRING SET | In Stock | 3.99 | |
| 34-2 | 1.04.01.02.0048
INTERNAL WIRING SET | In Stock | 2.99 | |
| 34-3 | 1.04.01.02.0049
INTERNAL WIRING SET | In Stock | 3.50 | |
| 34-4 | 1.04.01.02.0001
INTERNAL WIRING SET | In Stock | 3.50 | |
| 34-5 | 1.04.01.02.0002
INTERNAL WIRING SET | In Stock | 3.50 | |
| 34-6 | 1.04.01.02.0035
INTERNAL WIRING SET | In Stock | 4.50 | |
| 34-7 | 1.04.01.02.0034
INTERNAL WIRING SET | In Stock | 2.99 | |
| 34-8 | 1.04.02.02.0161
INTERNAL WIRING SET | In Stock | 11.99 | |
| 35 | 1.04.01.01.0024
POWER CABLE | In Stock | 9.99 | |
Functions:
- Automatic pan detection
- 99-minute timer
- Safety shut off
- Childproof lock
- Power level management
- Fan speeds - 3
- Digital display
- Flex induction zones
- Boost setting
Technical Specifications
Description
Flex zone Venting Induction hob with extraction - This product combines the hob and extractor in one appliance with a high-performance brushless A-class motor extraction which eliminates the need for overhead extraction.
Auto pan detection system - The induction technology allows for ease of use when cooking and designed to make achieving great results now faster and simpler.
Zone Management - The touch controls on the induction hob provide a simple and efficient way of choosing your settings with the option of 9 power levels.
Boost: Our boost function is designed for intense heat at your fingertips. From quick boiling water to turning up the temperature under your pans for searing and sealing steaks.
