H920xW898xD470 Chimney Cooker Hood - Hob to Hood

WRCHIM90RFBK

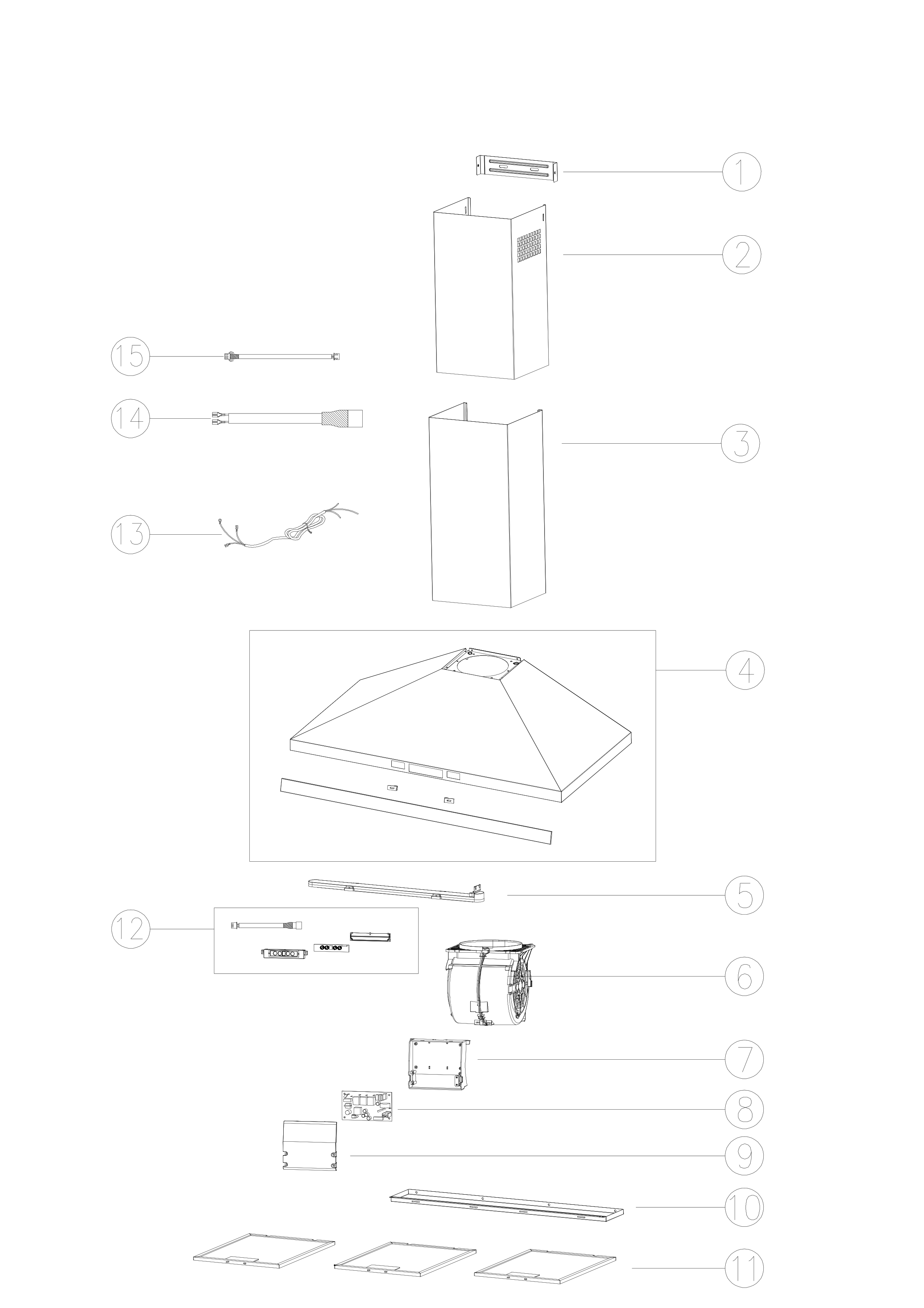

Drawing 1
Item# Part Details Availability £
Drawing 1
1 1.01.04.02.0031
BRACKET OF BLACK TUBE
In Stock4.99
2 1.01.04.08.0017
UPPER BLACK TUBE
In Stock19.99
3 1.01.04.08.0018
UNDER BLACK TUBE
In Stock19.99
4 2.02.04.10.0065
WIND CHAMPER CASE BK
Not Available
5-1 1.04.04.07.0021
SSLED(COLD)
In Stock10.99
5-2 1.04.04.07.0004
SSLED(WARM)
In Stock17.99
6 2.02.04.04.0016
T1DC MOTOR GROUP
In Stock34.99
7 1.02.04.10.0012
POWER BOX
In Stock8.99
8 1.05.04.01.0018
POWER PCBA
In Stock54.99
9 1.02.04.10.0015
POWER BOX UPPER COVER
In Stock4.99
10 1.01.04.05.0004
DECORATIVE PANEL BK
In Stock5.99
11 1.06.04.01.0002
FILTER
Low Stock17.99
12 2.02.04.07.0044
SWITCH ASSEMBLY
In Stock22.99
13 1.04.04.01.0001
POWER CORD
In Stock9.99
14 1.04.04.02.0006
LAMP WIRE
In Stock4.99
15 1.04.04.08.0003
SWITCH WIRE
In Stock3.50
16 25112475
CARBON FILTER
In Stock19.99

Functions

  • Fan speeds: 6 (5+Boost)
  • High powered brushless motor
  • Digital display
  • Touch control panel
  • Filter replacement indicator light (for recirculation mode only)
  • Timer
  • Energy-saving LED Light
Technical Specifications

Dimensions Unpacked
898x470x920mm
Energy Rating
A+
Dimensions Packed
960x250x525mm
Lamp Power
3w
Weight Unpacked
8.8kg
Motor Power
90w
Weight Packed
10.3kg
Noise Level
63dB
Electrical Connection
Cable no Plug
Air Outlet Diameter
150mm
Airflow Output
600 m3/h
Venting Method
Recirculation Mode or External Ventilation
Description

Hob to Hood connectivity - Our cooker hood is equipped with Hob to Hood connectivity and can link to any connected hob in the Viceroy range, the hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the cooker hood will increase or decrease in line with the power lever of the hob

With the 5 speed levels plus a boost, this gives you the exact amount of air power you need, from high speeds for frying to low speeds to keep the air clean and clear when boiling foods.

Product Design

  • Material: Black
  • Hood type: Chimney
  • Light type: LED light
  • Speeds: 6 (5+boost)
  • Control type: Illuminated touch control
  • Washable grease filters
  • Minimum distance to hob: Electric 590mm / Gas 750mm
  • Chimney Extension: 500 - 720mm
  • Cord length: 1.3m
