H920xW598xD470 Chimney Cooker Hood - Hob to Hood

WRCHIM60RFBK

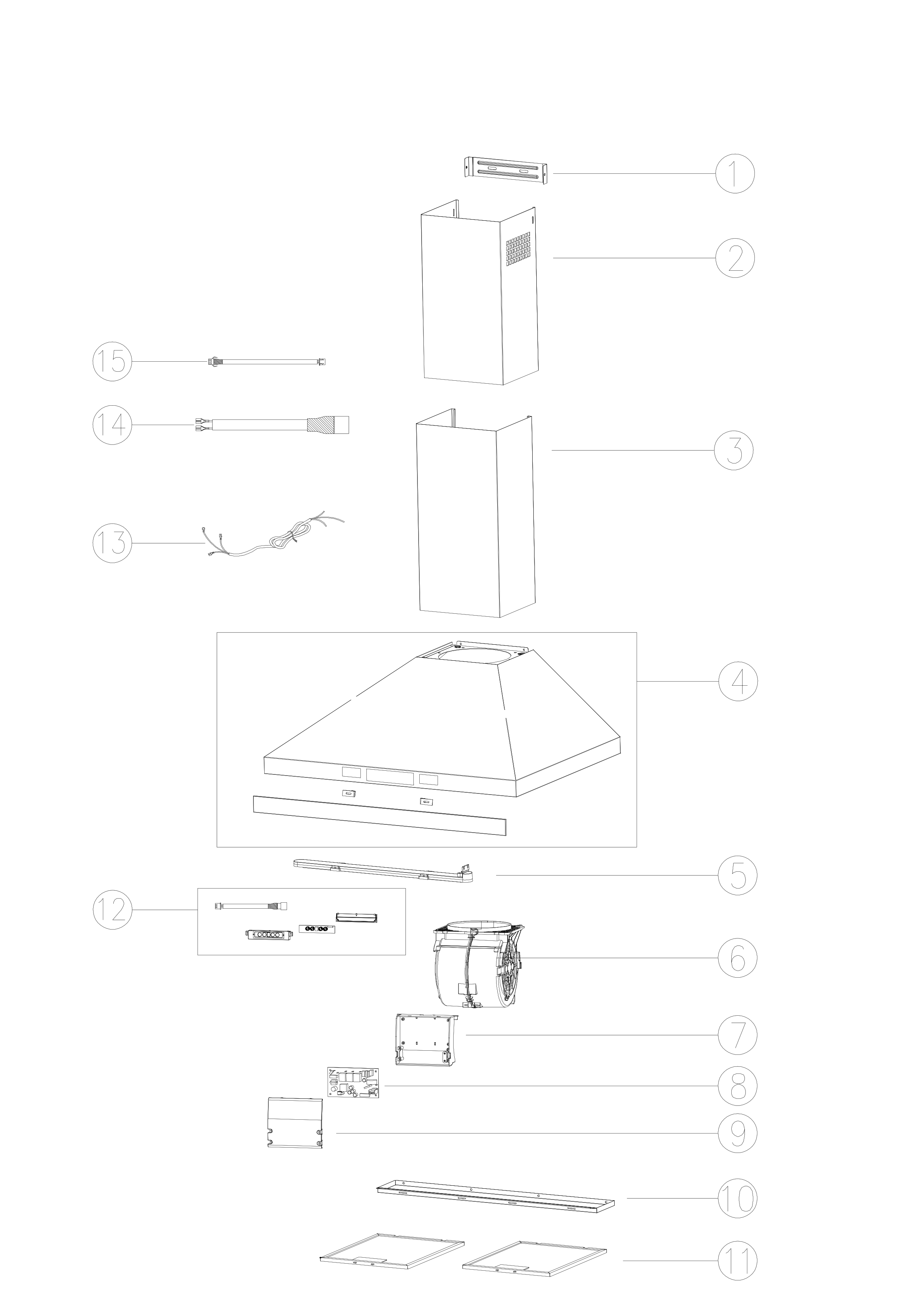

Drawing 1
Item# Part Details Availability £
Drawing 1
1 1.01.04.02.0031
BRACKET OF S/S TUBE
In Stock4.99
2 1.01.04.08.0017
UPPER BLACK TUBE
In Stock19.99
3 1.01.04.08.0018
UNDER BLACK TUBE
In Stock19.99
4 2.02.04.10.0065
WIND CHAMPER CASE BK
Not Available
5-1 1.04.04.07.0021
SSLED(COLD)
In Stock10.99
5-2 1.04.04.07.0004
SSLED(WARM)
In Stock17.99
6 2.02.04.04.0016
T1DC MOTOR GROUP
In Stock34.99
7 1.02.04.10.0012
POWER BOX
In Stock8.99
8 1.05.04.01.0018
POWER PCBA
Low Stock54.99
9 1.02.04.10.0015
POWER BOX UPPER COVER
In Stock4.99
10 1.01.04.05.0003
DECORATIVE PANEL BK
In Stock5.99
11 1.06.04.01.0002
FILTER
In Stock17.99
12 2.02.04.07.0044
SWITCH ASSEMBLY
Low Stock22.99
13 1.04.04.01.0001
POWER CORD
In StockContact Us
14 1.04.04.02.0006
LAMP WIRE
In Stock4.99
15 1.04.04.08.0003
SWITCH WIRE
In Stock3.50
16 25112475
CARBON FILTER
In Stock19.99

Functions

  • High powered brushless motor
  • Digital display
  • Touch control panel
  • Filter replacement indicator light (for recirculation mode only)
  • Timer
  • Energy-saving LED Light
Technical Specifications

Dimensions Unpacked
590x470x920mm
Energy Rating
A+
Dimensions Packed
660x250x525mm
Lamp Power
3w
Weight Unpacked
7.8kg
Motor Power
90w
Weight Packed
9.3kg
Noise Level
63dB
Electrical Connection
Cable no Plug
Air Outlet Diameter
150mm
Airflow Output
600 m3/h
Venting Method
Recirculation Mode or External Ventilation
Description

Hob to Hood Connectivity - Any Viceroy hob can connect wirelessly with any Viceroy cooker hood, so you can concentrate on your food not the fumes! When you’re using the hob, your cooker hood will turn on automatically and adjust the level of extraction in line with the power setting on your hob.

With 5 speed levels and a Boost option, your extractor hood will react quickly to remove everything from the smoke of frying food to the steam of a boiling pan. Leaving the air clean and clear whilst you cook.

Design Features

  • Black
  • Chimney hood
  • LED light
  • 6 fan speeds (5+boost)
  • Illuminated touch control
  • Washable grease filters
  • Minimum distance to hob: Electric 590mm / Gas 750mm
  • Chimney Extension: 500 - 720mm
  • Cord length: 1.3m
