H920xW598xD470 Chimney Cooker Hood - Hob to Hood
WRCHIM60RF

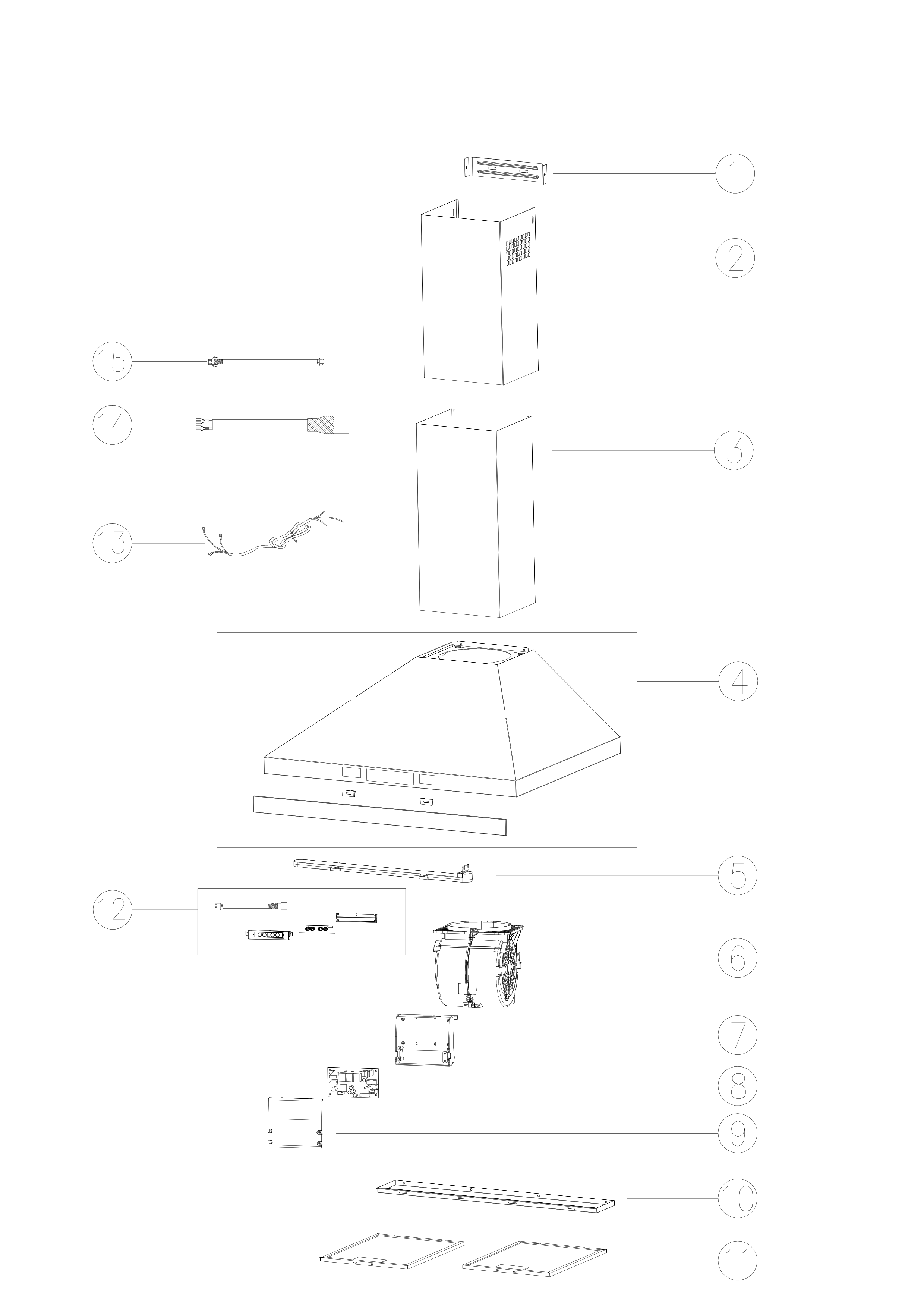

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.01.04.02.0031
BRACKET OF S/S TUBE | In Stock | 4.99 | |
| 2 | 1.01.04.08.0004
UPPER S/S TUBE | In Stock | 24.99 | |
| 3 | 1.01.04.08.0010
UNDER S/S TUBE | In Stock | 22.99 | |
| 4 | 2.02.04.10.0058
WIND CHAMPER CASE | Not Available | ||
| 5-1 | 1.04.04.07.0021
SSLED(COLD) | In Stock | 10.99 | |
| 5-2 | 1.04.04.07.0004
SSLED(WARM) | In Stock | 17.99 | |
| 6 | 2.02.04.04.0016
T1DC MOTOR GROUP | In Stock | 34.99 | |
| 7 | 1.02.04.10.0012
POWER BOX | In Stock | 8.99 | |
| 8 | 1.05.04.01.0018
POWER PCBA | In Stock | 54.99 | |
| 9 | 1.02.04.10.0015
POWER BOX UPPER COVER | In Stock | 4.99 | |
| 10 | 1.01.04.05.0002
DECORATIVE PANEL | In Stock | 10.99 | |
| 11 | 1.06.04.01.0002
FILTER | Low Stock | 17.99 | |
| 12 | 2.02.04.07.0044
SWITCH ASSEMBLY | In Stock | 22.99 | |
| 13 | 1.04.04.01.0001
POWER CORD | In Stock | 9.99 | |
| 14 | 1.04.04.02.0006
LAMP WIRE | In Stock | 4.99 | |
| 15 | 1.04.04.08.0003
SWITCH WIRE | In Stock | 3.50 | |
| 16 | 25112475
CARBON FILTER | In Stock | 19.99 | |
Functions
- Fan speeds: 6 (5+Boost)
- High powered brushless motor
- Digital display

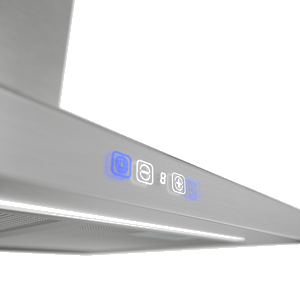

- Touch control panel
- Filter replacement indicator light (for recirculation mode only)
- Timer
- Energy-saving LED Light
Technical Specifications
Dimensions Unpacked
590x470x920mm
590x470x920mm
Energy Rating
A+
A+
Dimensions Packed
660x250x525mm
660x250x525mm
Lamp Power
3w
3w
Weight Unpacked
7.8kg
7.8kg
Motor Power
90w
90w
Weight Packed
9.3kg
9.3kg
Noise Level
63dB
63dB
Electrical Connection
Cable no Plug
Cable no Plug
Air Outlet Diameter
150mm
150mm
Airflow Output
600 m3/h
600 m3/h
Venting Method
Recirculation Mode or External Ventilation
Recirculation Mode or External Ventilation
Description
Hob to Hood connectivity - Our cooker hood is equipped with Hob to Hood connectivity and can link to any connected hob in the Viceroy range, the hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the cooker hood will increase or decrease in line with the power lever of the hob
With 5 speed levels and a Boost option, your extractor hood will react quickly to remove everything from the smoke of frying food to the steam of a boiling pan. Leaving the air clean and clear whilst you cook.
