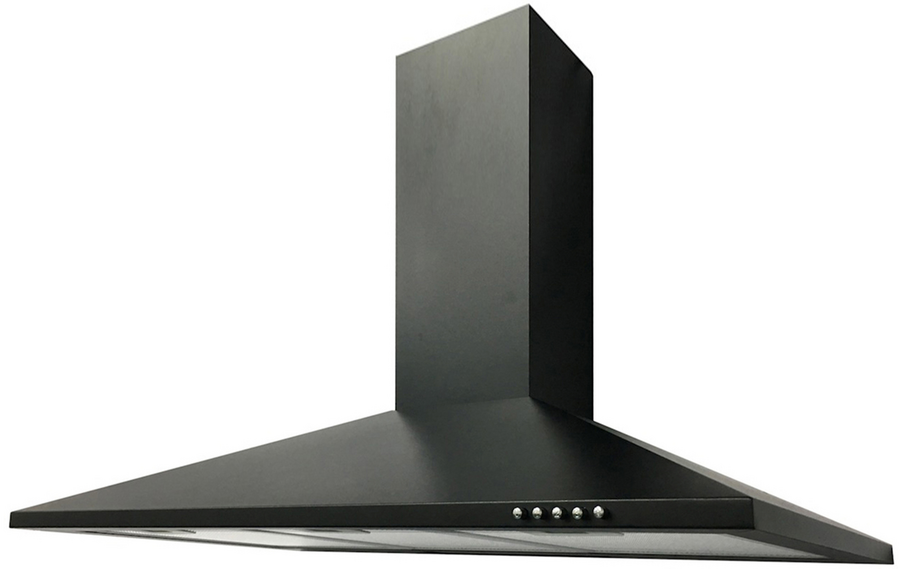

90CM BLACK CHIMNEY HOOD
WRCH90BK

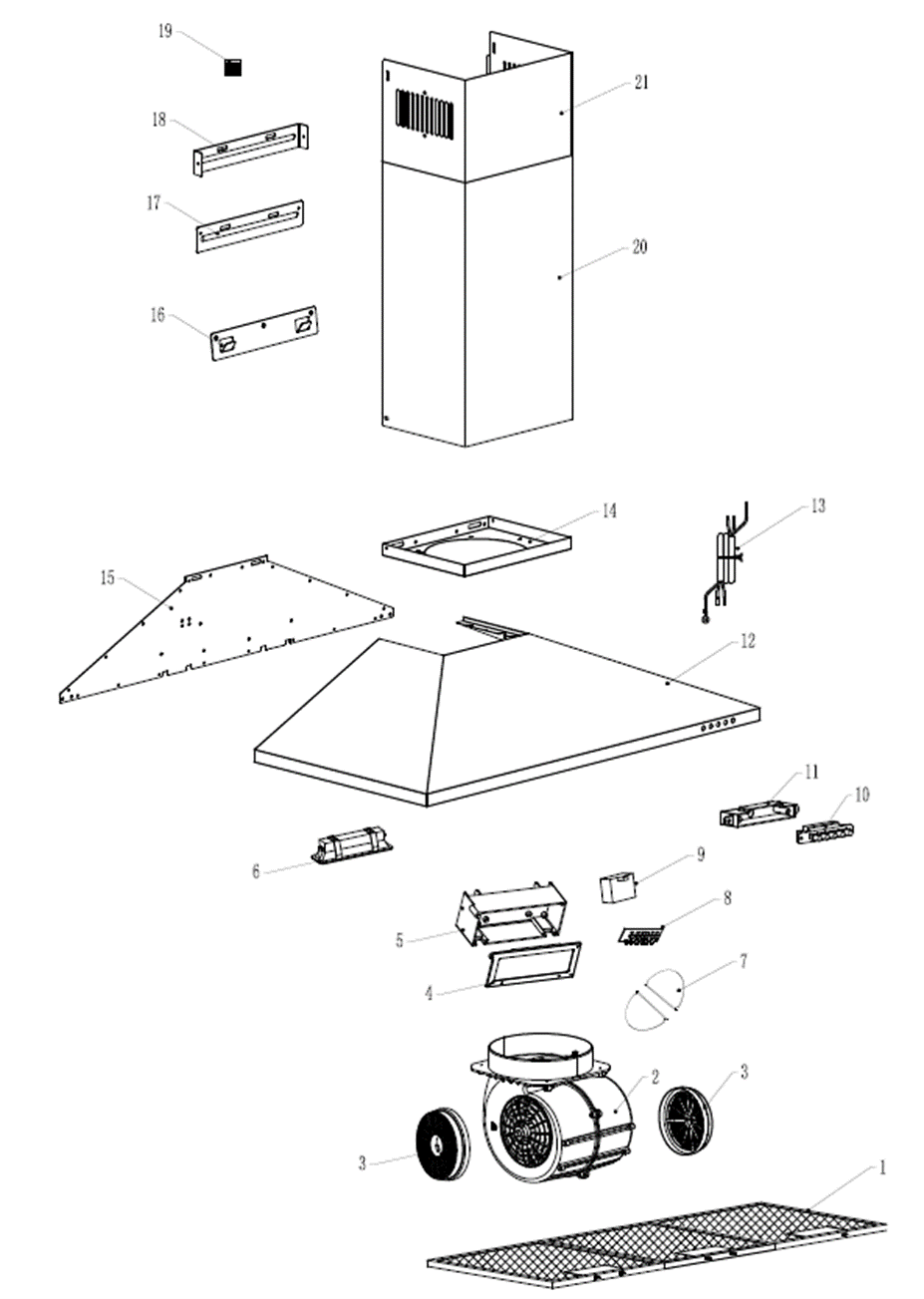

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.03.12.0090
ALUMINIUM FILTER (CAN USE 1.03.12.0079) | In Stock | 14.99 | |
| 2 | 2.03.06.0013
M7 MOTOR ASSEMBLY | On Order | 29.99 | |
| 3 | 1.11.01.0005
2 PIECE CARBON FILTER SET | On Order | 19.99 | |
| 4 | 1.04.03.0022
ELECTRICAL BOX COVER (CAN USE 10403-0031) | In Stock | 4.99 | |
| 5 | 1.04.03.0021
ELECTRICAL BOX (CAN USE 10403-0030) | In Stock | 9.99 | |
| 6 | 1.01.03.0045
RECTANGLE LED LAMP | On Order | 19.99 | |
| 7 | 1.04.11.0002
BACKDRAFT SHUTTER 150MM | On Order | 3.99 | |
| 8 | 1.01.01.0134
SWITCH PCB | On Order | 6.99 | |
| 9 | 1.01.02.0016
CAPACITOR 1.5uF | In Stock | 4.99 | |
| 10 | 1.01.07.0001
PUSH SWITCH (CAN USE 101070001) | In Stock | 14.99 | |
| 11 | 1.04.04.0024
PUSH SWITCH BOX | In Stock | 3.99 | |
| 12 | 1.08.01.0137
HOUSING ASSEMBLY | Not Available | ||
| 13 | 2.03.09.0059
POWER CORD ASSEMBLY (WITHOUT PLUG) | In Stock | 9.99 | |
| 14 | 2.01.01.0005
TOP BOARD | In Stock | 7.99 | |
| 15 | 2.03.01.0395
REAR BOARD | Not Available | ||
| 16 | 2.01.06.0317
HOOK | Low Stock | 9.99 | |
| 17 | 2.01.06.0107
OUTER CHIMNEY BRACKET (CAN USE 20214-0143) | In Stock | 3.99 | |
| 18 | 2.01.06.0109
INNER CHIMNEY BRACKET (CAN USE 20214-0152) | In Stock | 3.99 | |
| 19 | 2.03.13.0005
SCREW BAG | In Stock | 4.99 | |
| 20 | 1.08.11.0010
OUTER CHIMNEY | In Stock | 19.99 | |
| 21 | 1.08.11.0011
INNER CHIMNEY | In Stock | 19.99 | |
Technical Specifications
Dimensions Unpacked
Energy Rating
Dimensions Packed
Lamp Power
Weight Unpacked
Motor Power
Weight Packed
Noise Level
Electrical Connection
Air Outlet Diameter
Airflow Output
Venting Method
Description
