H906xW898xD470 Curved Glass Cooker Hood - Hob to Hood

WRCG90RF

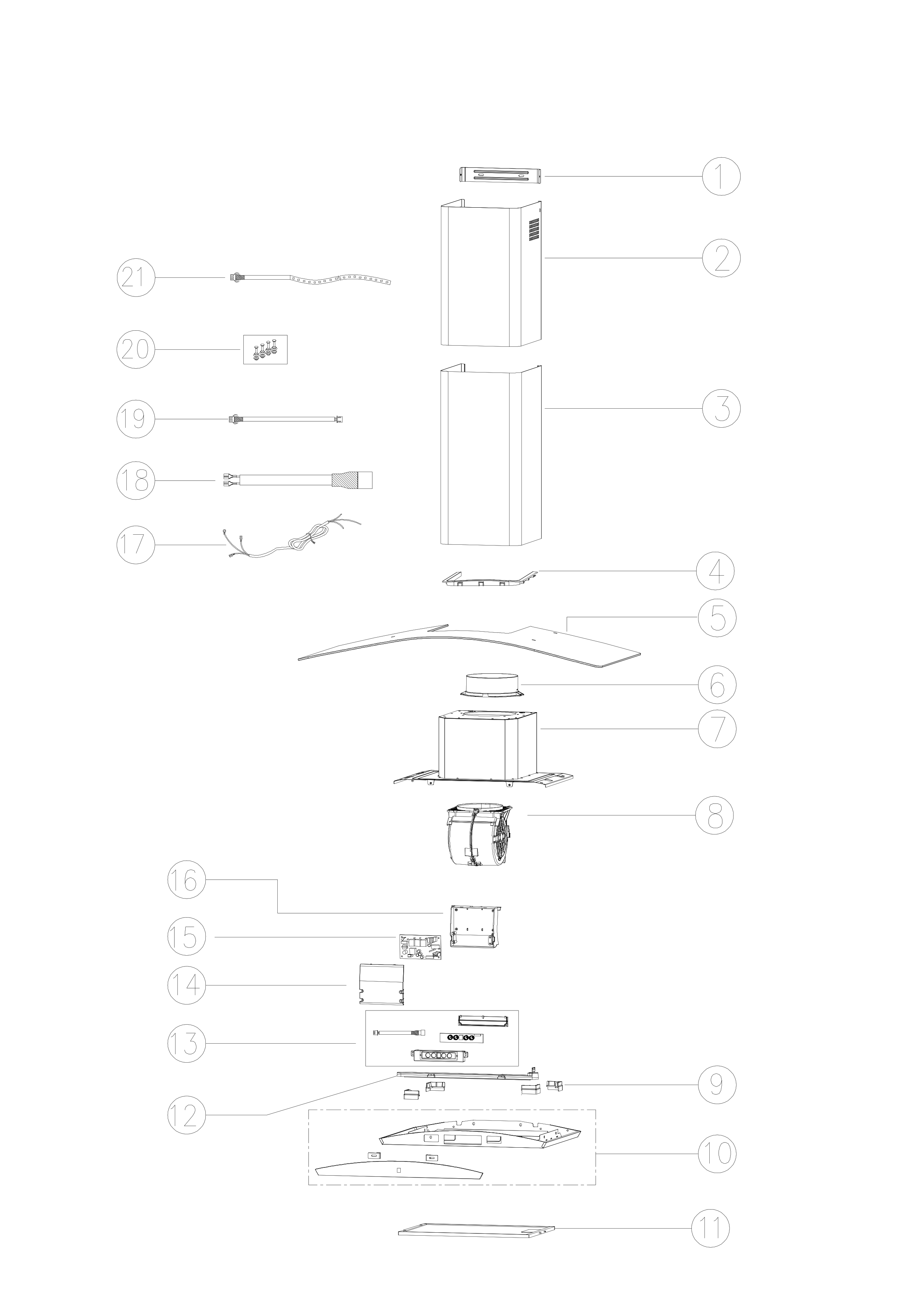

Drawing 1
Item# Part Details Availability £
Drawing 1
1 1.01.04.02.0023
BRACKET OF S/S TUBE
In StockContact Us
2 1.01.04.08.0003
UPPER S/S TUBE
On Order19.99
3 1.01.04.08.0008
UNDER S/S TUBE
Low Stock19.99
4 1.02.04.01.0004
AMBIENT LIGHT HOLDER
In Stock4.99
5 1.03.04.02.0044
CURVE GLASS 90CM
In Stock39.99
6 1.02.04.10.0008
OUTLET
In StockContact Us
7 1.01.04.10.0012
WIND CHAMPER CASE
Low StockContact Us
8 2.02.04.04.0016
T1DC MOTOR GROUP
In Stock34.99
9 1.02.04.10.0029
FILTER PLASTIC STOPPER
In StockContact Us
10 1.01.04.10.0019
WIND CHAMPER CASE
Not Available
11 1.06.04.01.0001
FILTER
Low Stock14.99
12-1 1.04.04.07.0004
SSLED (WARM)
In Stock17.99
12-2 1.04.04.07.0021
SSLED (COOL)
In Stock10.99
13 2.02.04.07.0044
SWITCH ASSEMBLY
Low Stock22.99
14 1.02.04.10.0015
POWER BOX UPPER COVER
In Stock4.99
15 1.05.04.01.0018
POWER PCB
Low Stock54.99
16 1.02.04.10.0012
POWER BOX
In Stock8.99
17 1.04.04.01.0001
POWER CORD
In StockContact Us
18 1.04.04.02.0029
LAMP WIRES
In StockContact Us
19 1.04.04.08.0003
SWITCH WIRES
In Stock3.50
20 2.02.04.10.0039
SCREW PACKAGE ASSEMBLY
In StockContact Us
21 1.04.04.07.0017
AMBIENT LIGHT
In Stock7.50
22 25112475
CARBON FILTER
In Stock19.99

Functions

  • Fan speeds: 6 (5+Boost)
  • High powered brushless motor

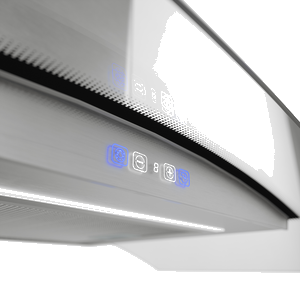

  • Digital display
  • Touch control panel
  • Filter replacement indicator light (for recirculation mode only)
  • Timer
  • Energy-saving LED Light
Technical Specifications

Dimensions Unpacked
898x470x906mm
Energy Rating
A+
Dimensions Packed
960x525x250mm
Lamp Power
5w
Weight Unpacked
11.7kg
Motor Power
90w
Weight Packed
13.7kg
Noise Level
63dB
Electrical Connection
Cable no Plug
Air Outlet Diameter
150mm
Airflow Output
600 m3/h
Venting Method
Recirculation Mode or External Ventilation
Description

Hob to Hood connectivity - Our cooker hood is equipped with Hob to Hood connectivity and can link to any connected hob in the Viceroy range, the hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the cooker hood will increase or decrease in line with the power lever of the hob.

With the 5 speed levels plus a boost, this gives you the exact amount of air power you need, from high speeds for frying to low speeds to keep the air clean and clear when boiling foods.

Mood Lighting - With our beautiful blue ambient light it can suit any mood and cooking style in your kitchen.

Product Design

  • Material: Stainless Steel
  • Mood lighting: Blue Ambient Light
  • Hood type: Chimney
  • Light type: LED light
  • Speeds: 6 (5+boost)
  • Control type: Illuminated touch control
  • Washable grease filters
  • Minimum distance to hob: Electric 590mm / Gas 750mm
  • Chimney Extension: 425 - 700mm
  • Cord length: 1.3m
