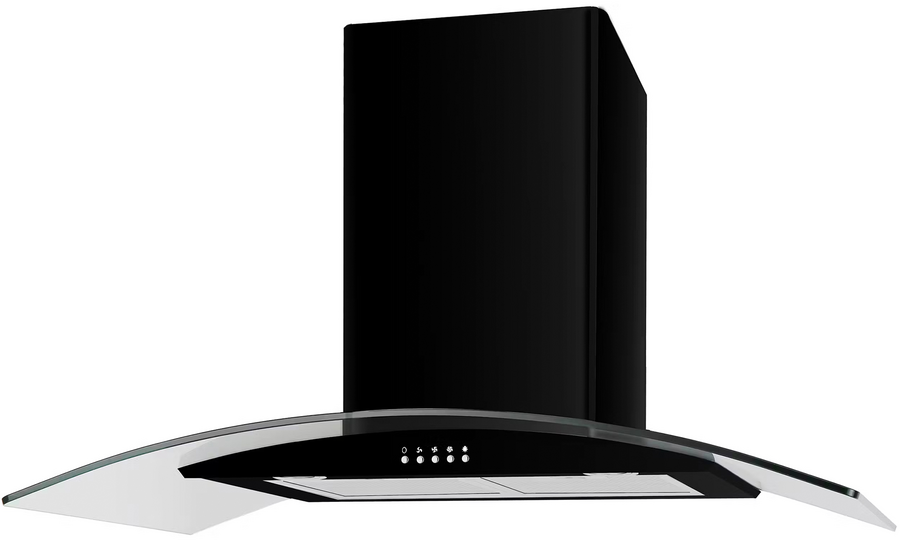

90CM BLACK CURVED GLASS COOKER HOOD

WRCG90BK

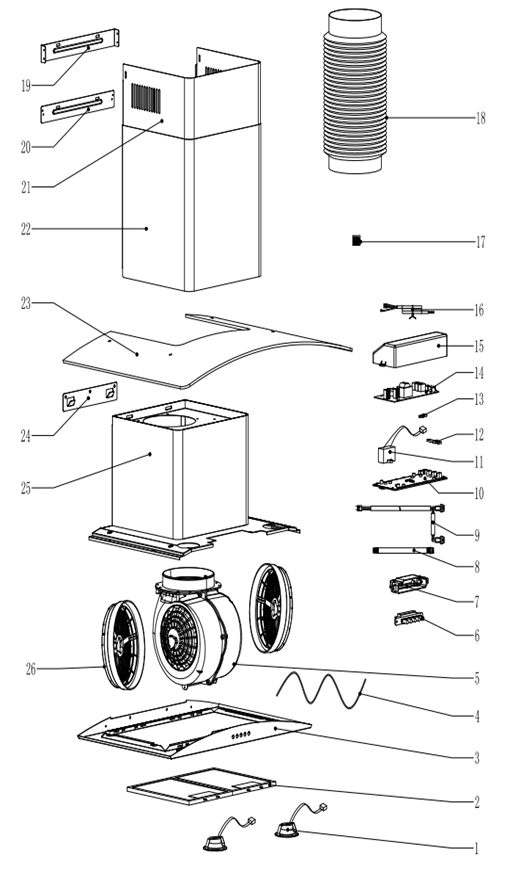

Drawing 1
Product Information Product Specification Documents Parts
Item# Part Details Availability £
Drawing 1
1 1.01.03.0013
LED LIGHT		In Stock9.99
2 1.03.12.0072
ALUMINIUM FILTER		In Stock14.99
3 1.08.13.0005
PANEL ASSEMBLY		Not Available
4 1.04.10.0015
DECORATIVE TRIP		Not Available
5 2.03.06.0003
M3A MOTOR ASSY (4 PIN)		In Stock49.99
6 1.01.07.0001
PUSH SWITCH (CAN USE 101070001)		In Stock14.99
7 1.04.04.0001
PUSH SWITCH BOX (CAN USE 10404-0001)		In Stock3.99
8 1.02.07.0001
SWITCH WIRE		In StockContact Us
9 1.02.10.0001
LAMP WIRE		In StockContact Us
10 1.04.03.0001
TERMINAL BOX BASE (CAN USE 1.04.03.0001)		Not Available
11 2.03.10.0004
CAPACITOR 3uF (NEW PART NO 1.01.02.0008)		In Stock4.99
12 1.04.12.0002
THREE HOLES WIREBOARD		Low StockContact Us
13 1.04.12.0001
TWO HOLES WIREBOARD		Low StockContact Us
14 1.01.01.0039
PCB BOARD		In Stock19.99
15 1.04.03.0004
ELECTRICAL BOX COVER (CAN USE 10403-0006)		Low Stock3.99
16 2.03.09.0054
POWER CORD ASSEMBLY (WITHOUT PLUG)		In Stock9.99
17 2.03.13.0001
SCREW BAG		In Stock3.99
18 1.04.07.0001
FLEXIBLE PIPE FOR OPTIONAL		In Stock12.49
19 2.01.06.0038
INNER CHIMNEY BRACKET (CAN USE 20214-0002 OR 201060038)		In Stock12.99
20 2.01.06.0037
OUTER CHIMNEY BRACKET (CAN USE 20214-0001)		In Stock12.99
21 1.08.11.0004
INNER CHIMNEY		In Stock13.99
22 1.08.11.0155
OUTER CHIMNEY		Low Stock14.99
23 1.05.01.0072
GLASS		In StockContact Us
24 1.09.01.0003
HOOK PLATE (CAN USE 109010003)		In Stock3.99
25 2.03.01.0081
CASING ASSEMBLY		Not Available
26 1.11.01.0004
2 PIECE CARBON FILTER SET		In Stock19.99
