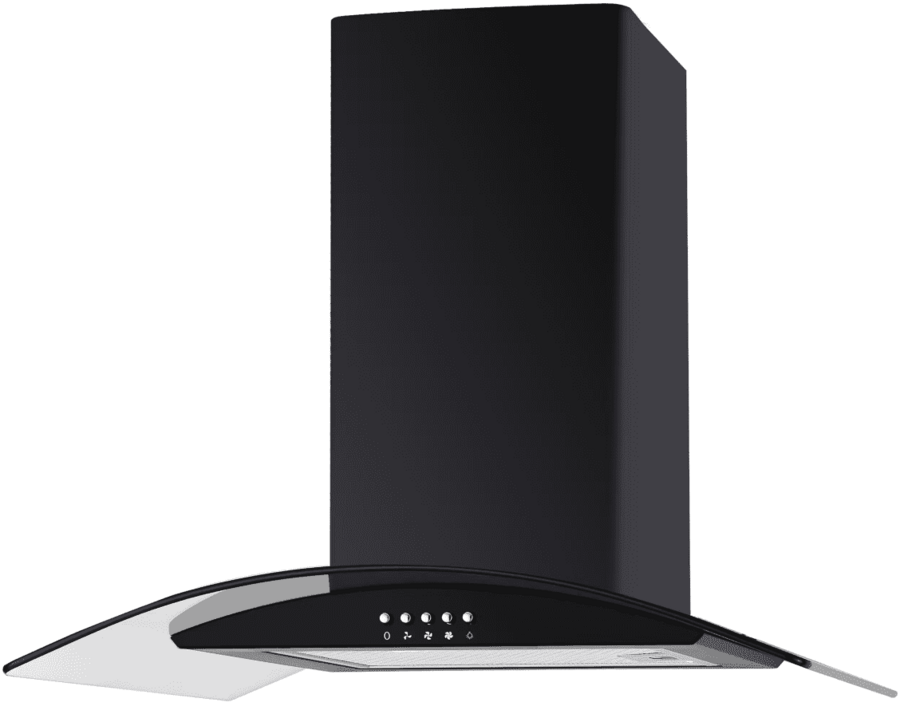

60CM BLACK CURVED GLASS COOKER HOOD

WRCG60BK

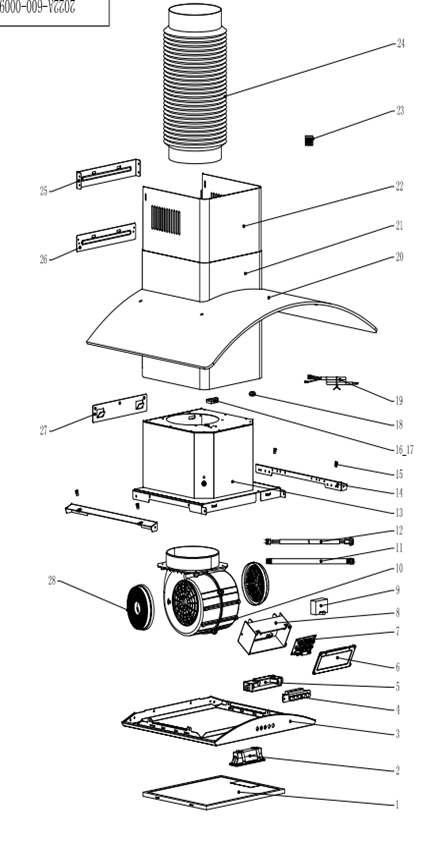

Drawing 1
Product Information Product Specification Documents Parts
Item# Part Details Availability £
Drawing 1
1 1.03.12.0079
ALUMINUM FILTER (CAN USE 1.03.12.0079)		On Order13.99
2 1.01.03.0045
RECTANGLE LED LAMP		On Order19.99
3 1.08.13.0031
PANEL ASSEMBLY		Not Available
4 1.01.07.0001
SWITCH		In Stock14.99
5 1.04.04.0024
SWITCH BOX COVER		In Stock3.99
6 1.04.03.0022
ELECTRICAL BOX COVER (CAN USE 10403-0031)		In Stock4.99
7 1.01.01.0102
WIRING BOARD		On Order7.49
8 1.04.03.0021
ELECTRICAL BOX (CAN USE 10403-0030)		In Stock9.99
9 2.03.10.0012
CAPACITOR		In Stock4.99
10 2.03.06.0133
M7 MOTOR KIT (CAN USE 2.03.06.0133)		On Order39.99
11 1.02.07.0007
SWITCH WIRE		In Stock7.99
12 1.02.10.0045
LAMP WIRE		In Stock7.99
13 2.03.01.0672
CASING ASSEMBLY		Not Available
14 2.01.05.0024
GLASS CONNECT BOARD		Not Available
15 1.07.02.0008
SCREW		Not Available
16 1.04.12.0004
CRIMPING SEAT (CAN USE 10413-0004)		In Stock3.99
17 1.04.12.0005
CRIMPING BOARD (CAN USE 10413-0005)		In Stock3.99
18 1.04.14.0004
NOT AVAILABLE		Not Available
19 2.03.09.0054
POWER CORD ASSEMBLY (WITHOUT PLUG)		In Stock9.99
20 1.05.01.0634
GLASS		Low StockContact Us
21 1.08.11.0156
OUTER CHIMNEY		Low Stock19.99
22 1.08.11.0157
INNER CHIMNEY		On Order19.99
23 2.03.13.0001
SCREW BAG		In Stock3.99
24 1.04.07.0001
FLEXIBLE DUCTING PIPE		In Stock12.49
25 2.01.06.0298
INNER CHIMNEY BRACKET		In Stock3.99
26 2.01.06.0297
OUTER CHIMNEY BRACKET		In Stock3.99
27 1.09.01.0003
BRACKET		In Stock3.99
28 1.11.01.0005
CHARCOAL FILTER		On Order19.99
Technical Specifications

Dimensions Unpacked
Energy Rating
Dimensions Packed
Lamp Power
Weight Unpacked
Motor Power
Weight Packed
Noise Level
Electrical Connection
Air Outlet Diameter
Airflow Output
Venting Method
Description

USER HANDBOOK
