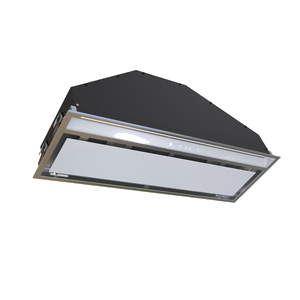

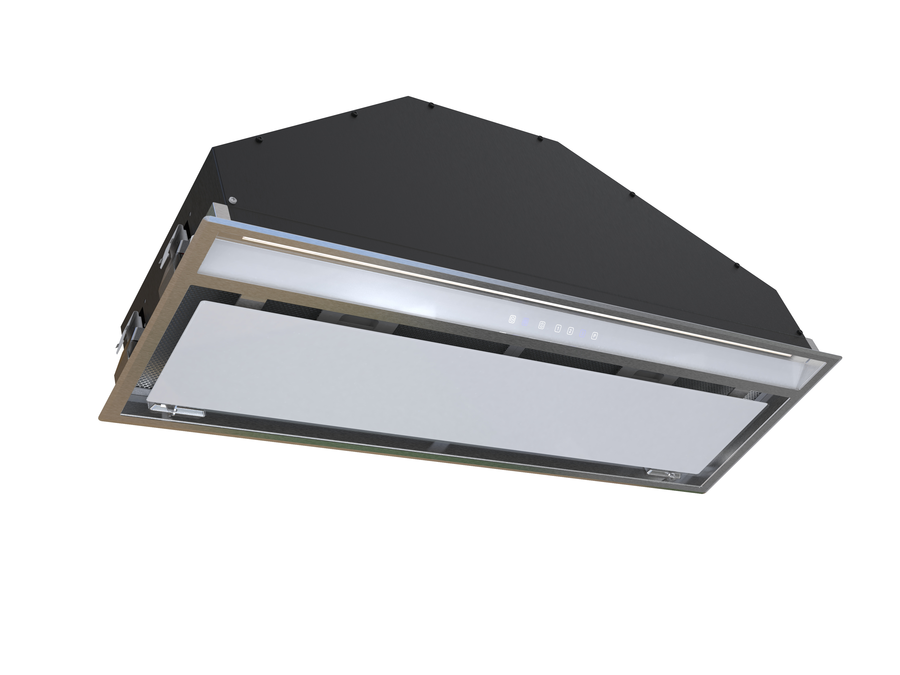

H316xW830xD280 Canopy Hood - Hob to Hood

WRCAN90RF

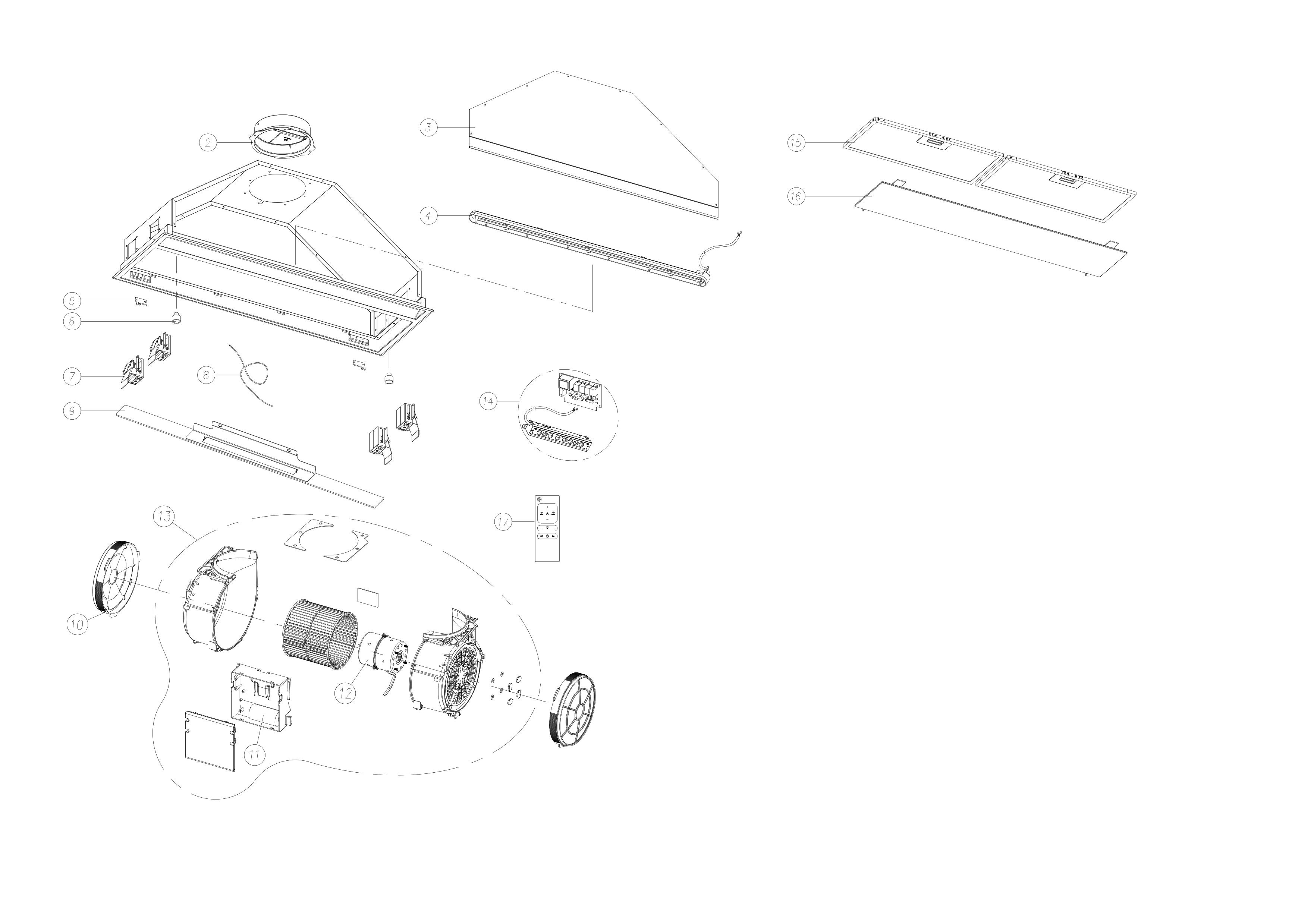

Drawing 1
Product Information Product Specification Documents Parts
Item# Part Details Availability £
Drawing 1
2 02832004
OUTLET TUBE + BACK DRAUGHT SHUTTER 150mm K7+		On Order10.99
3 55001950
SERVICE DOOR-HOOD-GTCL 83		In Stock19.99
4 69412795
GTCL83 STRIP LED SINGLE-COLOR 12VDC 5W GROUP (WITH LAMP COVER)		In Stock14.99
5 62904460
GLASS HINGE-HOOD-GTCL		On Order9.99
6 69412755
8 MAGNET GROUP-HOOD-GTCL		Low Stock14.99
7 26200610
INSTALLATION FASTENER-HOOD-GTCL		In Stock14.99
8 60100645
POWER WIRE WITHOUT PLUG-HOOD-GTCL		In Stock9.99
9 25112490
CONTROL GLASS (WREN) WITH SWTICH BRACKET-HOOD-GTCL 83		In Stock29.99
10 25112510
PACK OF 2 CARBON FILTER		In Stock19.99
11 62100580
P2 CAPACITOR 4UF 450V		In Stock3.99
13 15104024
BT3 MOTOR GROUP SET -HOOD		In Stock69.99
14 63905535
TC4IR DC BLUE SZ RF (WITH POWER PCB)		In Stock29.99
15 65300315
METAL FILTER-HOOD-GTCL 83		In Stock19.99
16 25112500
INLET WHITE GLASS GROUP-HOOD-GTCL 83		In Stock32.99
17 63905510
AL DS REMOTE CONTROL RF		Not Available

Functions

  • Fan speeds: 4 (3+Boost)
  • Digital display

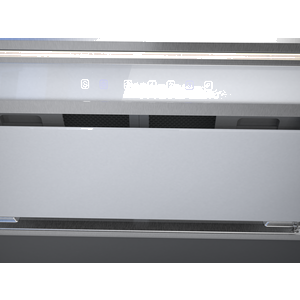

  • Touch control panel
  • Filter replacement indicator light (for recirculation mode only)
  • Timer
  • Energy-saving LED Light
Technical Specifications

Dimensions Unpacked
830x280x316mm
Energy Rating
B
Dimensions Packed
895x330x380mm
Lamp Power
5w
Weight Unpacked
11.3kg
Motor Power
280w
Weight Packed
14.1kg
Noise Level
66dB
Electrical Connection
Cable no Plug
Air Outlet Diameter
150mm
Airflow Output
750 m3/h
Venting Method
Recirculation Mode or External Ventilation
Description

Hob to Hood connectivity - Our cooker hood is equipped with Hob to Hood connectivity and can link to any connected hob in the Viceroy range, the hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the cooker hood will increase or decrease in line with the power lever of the hob

Ease of use - Move between fan speeds and light settings with the hoods touch control panel, for easy control over your kitchens atmosphere.

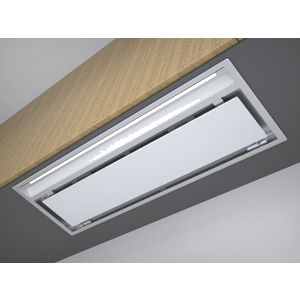

Seamless design - With our canopy hood that fits into your cabinet, you can create a seamless and sleek design to your home.

Product Design

  • Main colour: Silver + White
  • Hood type: Canopy, width 90cm
  • Light type: LED strip light
  • 2 Washable Aluminium grease filters
  • Control type: LED touch control
  • Speeds: 4 (3+boost)
  • Minimum install height: 450mm
  • Maximum install height: 650mm
