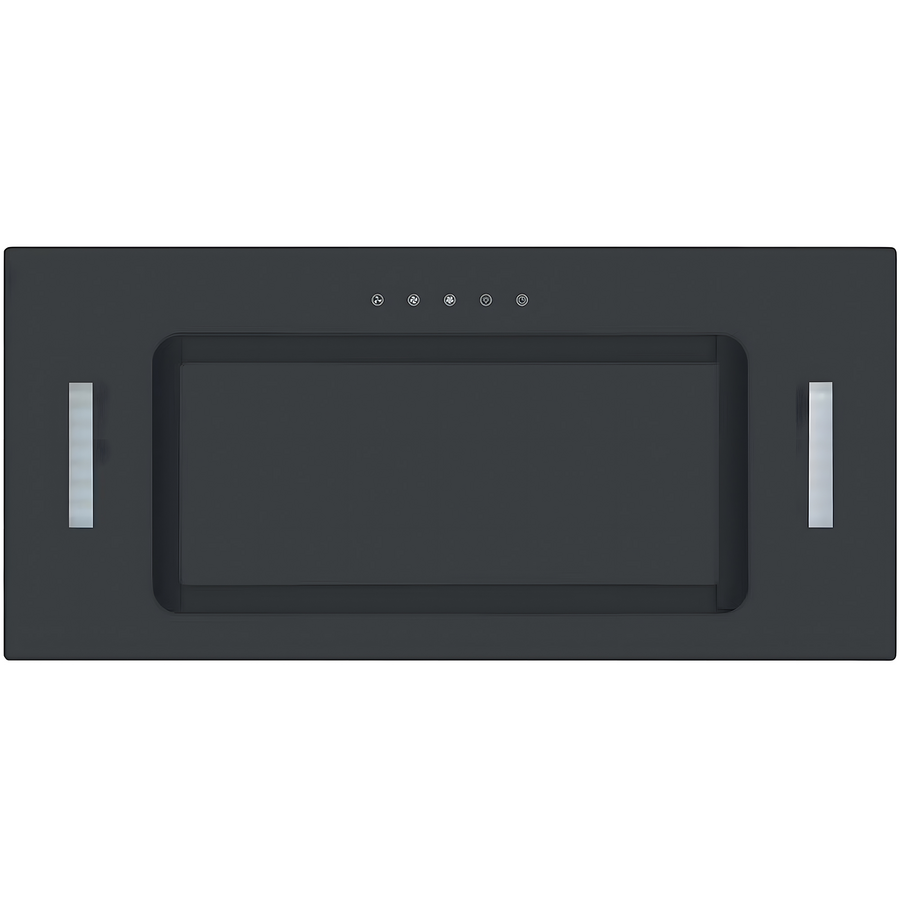

52CM BLACK CANOPY HOOD (NEW STYLE FIXING)

WRCAN52BKG

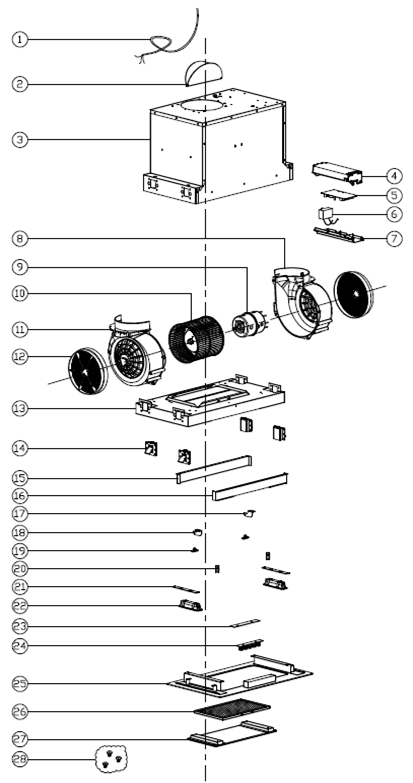

Drawing 1
Product Information Product Specification Documents Parts
Item# Part Details Availability £
Drawing 1
1 1400400024
POWER CABLE (TYPE G PLUG)		Low Stock9.99
2 12001010300005
RETURN FLAP $$$ (USE AA0000000268)		Not Available
3 UBICON52BK1CAS
CAVITY ASSEMBLY(SET)		Not Available
4 12001010200229
JUNCTION BOX		In Stock7.99
5 1400500494
POWER PCB		In Stock24.99
6 1400100201
CAPACITOR 3.5uF		In Stock4.99
7 12001010200228
JUNCTION BOX COVER		In Stock4.99
8 12001010300175
FAN ASSEMBLY - RIGHT CASING		In Stock8.99
9 1400200412
MOTOR		Low Stock29.99
10 12001010300011
FAN ASSEMBLY - IMPELLER		In Stock10.99
11 12001010300018
FAN ASSEMBLY - LEFT CASING		In Stock11.99
12 12001010300070
CARBON FILTER (PACK OF TWO) (CAN USE ATFILT5)		In Stock19.99
13 1170300487
FRAME		Low Stock25.99
14 UBICON52BK1BU
BUCKLE		Not Available
15 1170300490
BACKBOARD		Low Stock8.99
16 1170300491
HEAD BOARD		Low Stock10.99
17 1120200353
LEFT HINGE		Low Stock9.99
18 1120200354
RIGHT HINGE		Low Stock9.99
19 1130203191
FRONT PLATE CONNECTOR		Low Stock4.99
20-A 1309800167
MAGNET		In Stock4.99
20-B 1309800166
COUNTERSUNK SCREW		Not Available
21 1120400216
LAMP BRACKET		In Stock5.99
22 1400600364
LED LIGHT		In Stock6.99
23 120010300066
SWITCH BOX COVER		In Stock5.99
24 1400500539
SWITCH PLATE		Low Stock12.49
25 UBICON52BK1OGA
OUTER GLASS ASSEMBLY(SET)		Low StockContact Us
26 1300100250
ALUMINIUM FILTER		Not Available
27 UBICON52BK1IGA
INNER GLASS ASSEMBLY(SET)		Low StockContact Us
28 UBICON52BK1SB
SCREW BAG		In StockContact Us
Technical Specifications

Dimensions Unpacked
Energy Rating
Dimensions Packed
Lamp Power
Weight Unpacked
Motor Power
Weight Packed
Noise Level
Electrical Connection
Air Outlet Diameter
Airflow Output
Venting Method
Description

USER HANDBOOK
