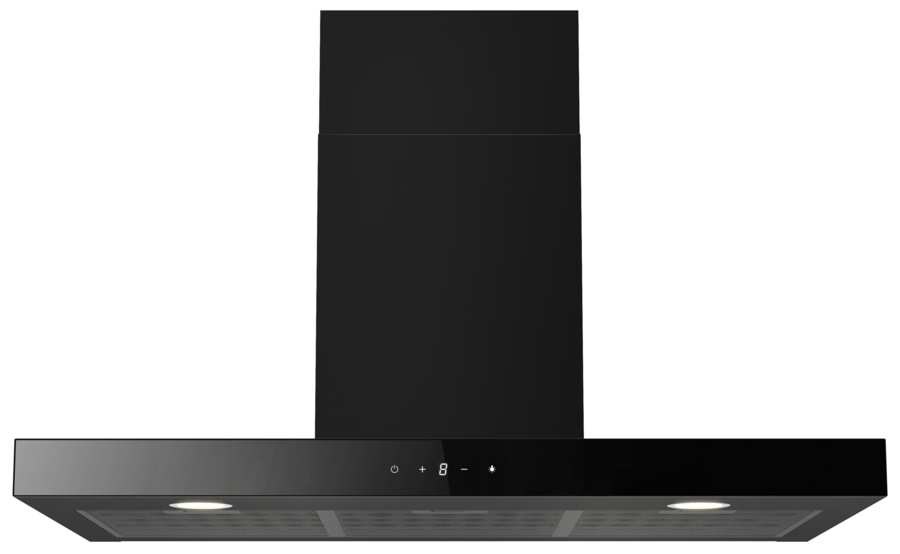

90CM BLACK BOX HOOD
WRBOX90BK
![]()

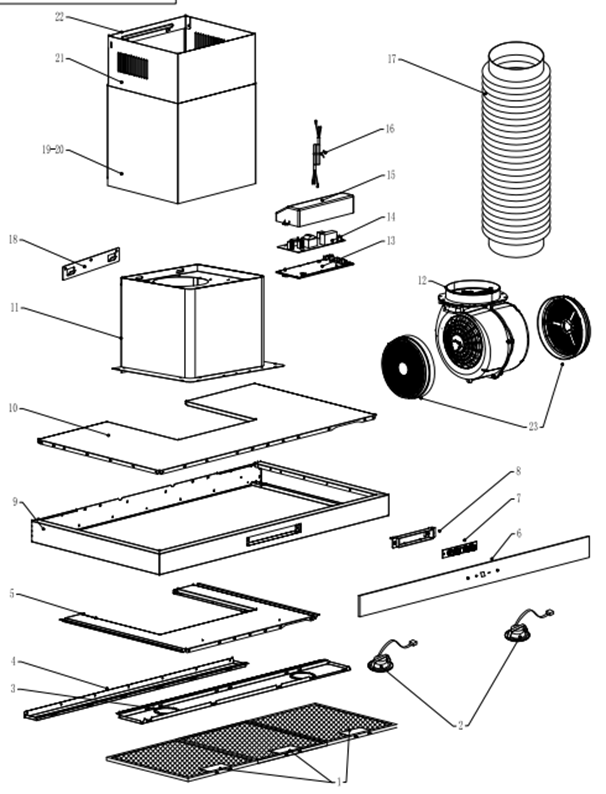

Drawing 1
| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.03.12.0099
ALUMINUN FILTER | Low Stock | Contact Us | |
| 2 | 1.01.03.0013
LED LIGHT | In Stock | 9.99 | |
| 3 | 1.08.05.0007
LAMP PANEL | Low Stock | Contact Us | |
| 4 | 1.08.04.0033
REAR BOARD | Not Available | ||
| 5 | 2.01.06.0017
STRENGHTEN PANEL | Not Available | ||
| 6 | 1.05.01.0264
FRONT PANEL GLASS | Not Available | ||
| 7 | 1.01.01.0227
TOUCH CONTROL | In Stock | 17.49 | |
| 8 | 1.01.04.0020
SWITCH BOX | In Stock | 3.99 | |
| 9 | 1.08.11.0227
DECORATIVE FRAME | Not Available | ||
| 10 | 1.08.03.0001
UPPER BOARD | Not Available | ||
| 11 | 2.03.01.0080
CASING ASSY | Not Available | ||
| 12 | 2.03.06.0114
M23 MOTOR ASSEMBLY | In Stock | 43.99 | |
| 13 | 1.04.03.0001
TERMINAL BOX BASE | Low Stock | 4.99 | |
| 14 | 1.01.01.0110
PCB BOARD | In Stock | 19.99 | |
| 15 | 1.04.03.0004
TERMINAL BOX COVER | Low Stock | 3.99 | |
| 16 | 2.03.09.0054
POWER CORD ASSEMBLY (WITHOUT PLUG) | In Stock | 9.99 | |
| 17 | 1.03.11.0008
ALUMINIUM EXHAUST PIPE | Low Stock | 6.49 | |
| 18 | 2.01.06.0317
HOOK | Low Stock | 9.99 | |
| 19 | 2.01.10.0003
OUTER CHIMNEY | In Stock | 19.99 | |
| 20 | 2.01.06.0037
EXTERIOR CHIMNEY RACK | In Stock | 12.99 | |
| 21 | 2.01.10.0004
INNER CHIMNEY | In Stock | 19.99 | |
| 22 | 2.01.06.0038
INTERIOR CHIMNEY RACK | In Stock | 12.99 | |
| 23 | 1.11.01.0004
2 PIECE CARBON FILTER SET | In Stock | 19.99 | |
Technical Specifications
Description
| Awaiting Information |
