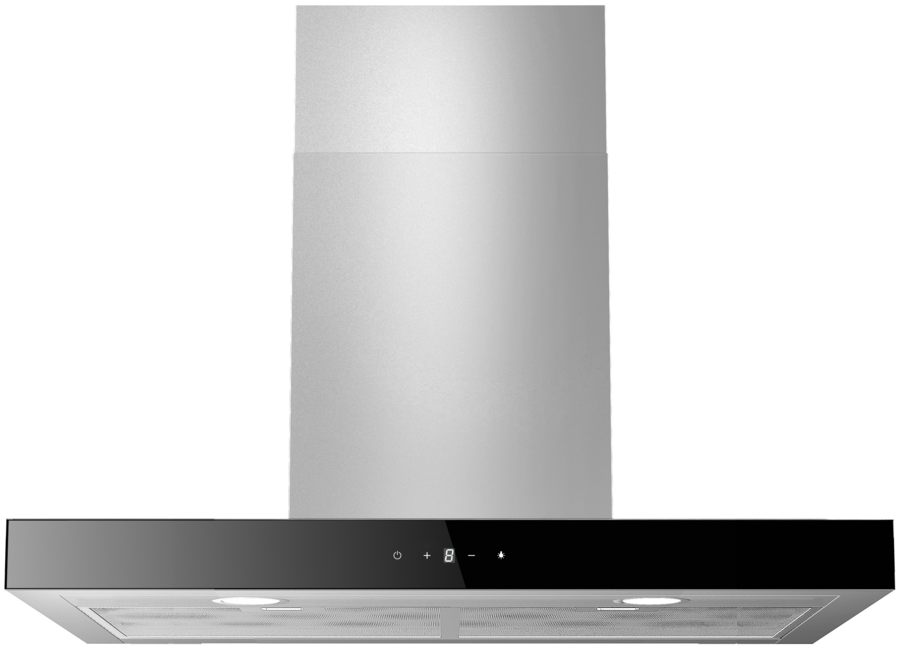

80CM BOX HOOD STAINLESS STEEL TOUCH CONTROL
WRBOX80SS

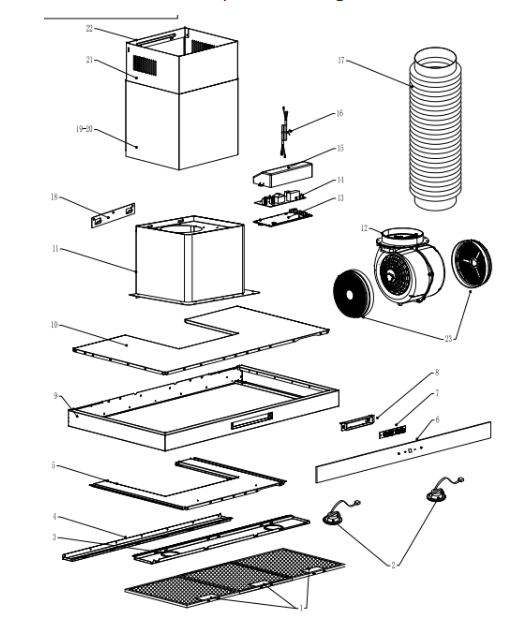

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.03.12.0333
ALUMINUN FILTER | Not Available | ||
| 2 | 1.01.03.0013
ROUND LED LAMP | In Stock | 9.99 | |
| 3 | 2.01.13.0286
LAMP PANEL | Not Available | ||
| 4 | 2.01.03.0317
REAR BOARD | Not Available | ||
| 5 | 2.03.01.0244
STRENGHTEN PANEL | Not Available | ||
| 6 | 1.05.01.1385
FRONT PANEL GLASS | Not Available | ||
| 7 | 1.01.01.0227
TOUCH CONTROL | In Stock | 17.49 | |
| 8 | 1.01.04.0020
SWITCH BOX | In Stock | 3.99 | |
| 9 | 2.03.01.1146
DECORATIVE FRAME | Not Available | ||
| 10 | 2.01.01.0127
UPPER BOARD | Not Available | ||
| 11 | 2.03.01.0080
CASING ASSEMBLY | Not Available | ||
| 12 | 2.03.06.0114
M23 MOTOR ASSEMBLY | In Stock | 43.99 | |
| 13 | 1.04.03.0001
ELECTRICAL BOX BASE | Low Stock | 4.99 | |
| 14 | 1.01.01.0110
PCB BOARD | In Stock | 19.99 | |
| 15 | 1.04.03.0004
ELECTRICAL BOX COVER | Low Stock | 3.99 | |
| 16 | 2.03.09.0054
POWER CORD ASSEMBLY (WITHOUT PLUG) | In Stock | 9.99 | |
| 17 | 1.03.11.0008
EXHAUST PIPE | Low Stock | 6.49 | |
| 18 | 2.01.06.0317
HANGING PLATE | Low Stock | 9.99 | |
| 19 | 2.01.10.0003
OUTER CHIMNEY | Not Available | ||
| 20 | 2.01.06.0037
OUTER CHIMNEY BRACKET | In Stock | 12.99 | |
| 21 | 2.01.10.0004
INNER CHIMNEY | Not Available | ||
| 22 | 2.01.06.0038
INNER CHIMNEY BRACKET | In Stock | 12.99 | |
| 23 | 1.11.01.0004
CARBON FILTER | In Stock | 19.99 | |
