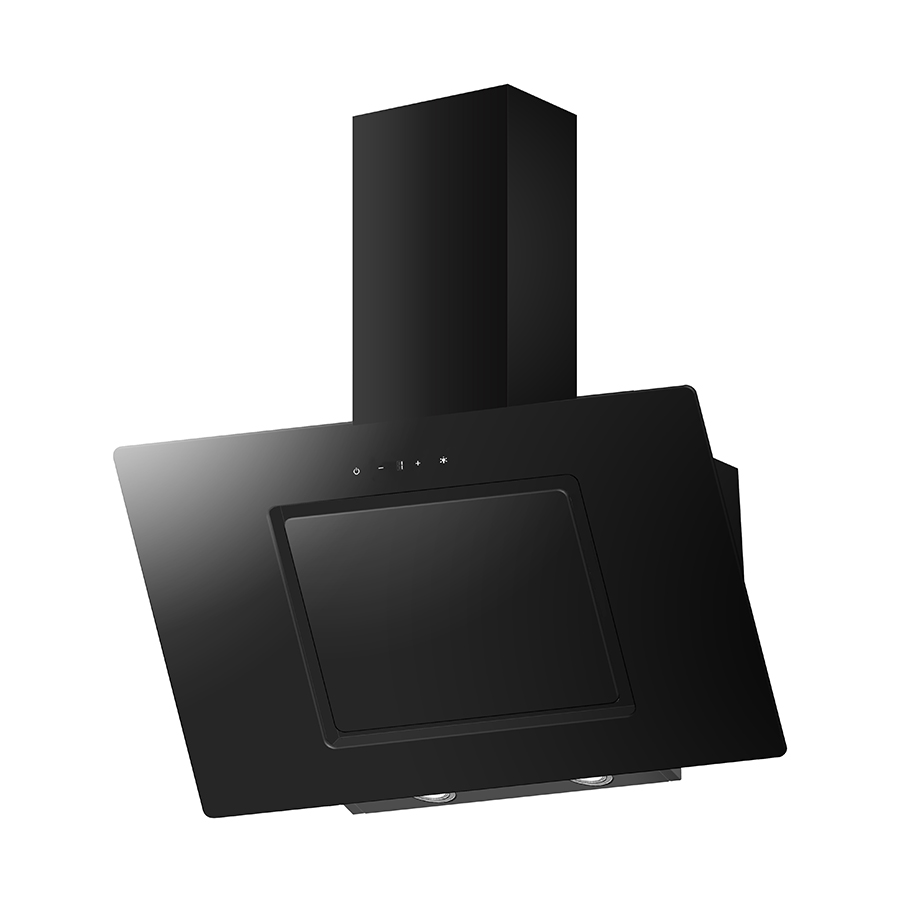

90CM BLACK ANGLED GLASS HOOD BLACK CHIMNEY
WRANG90BK

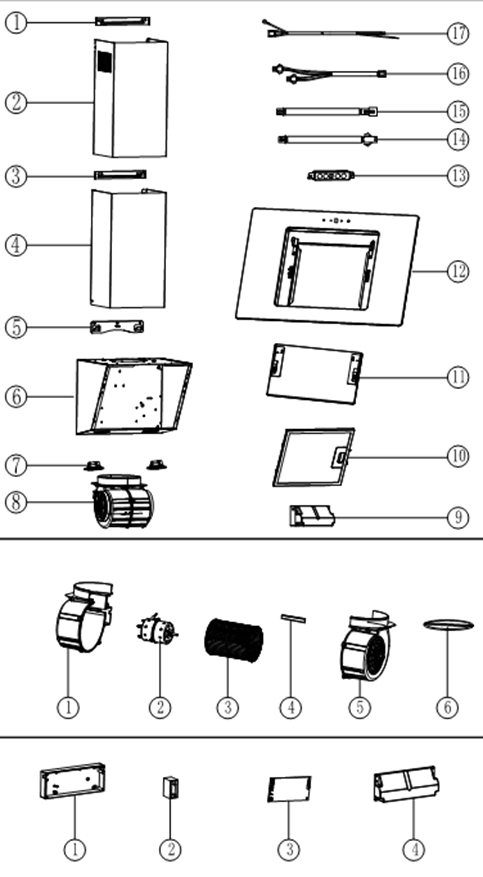

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | B23-TD08-006-PX
TD INNER CHIMNEY BRACKET | In Stock | 5.99 | |
| 2 | B21-TD08-008-TB2
UPPER CHIMNEY-BLACK | In Stock | 19.99 | |
| 3 | B23-TD08-005-PX
TD OUTER CHIMNEY BRACKET | In Stock | 5.99 | |
| 4 | B21-TD08-007-TB2
LOWER CHIMNEY-BLACK | In Stock | 19.99 | |
| 5 | B23-TG18-027-PX
BRACKET | Low Stock | 5.99 | |
| 7 | B62-TY01-016-BX
LED LAMP | Not Available | ||
| 8 | B76-TY02-090-BX
HOUSING S ASSEMBLY | Low Stock | 22.99 | |
| 10 | B35-TG01-018-XX
ALUMINIUM FILTER | Low Stock | 16.99 | |
| 11 | B33-TV26-001-XB
OUTER GLASS | Low Stock | 29.99 | |
| 13 | B63-TY07-380-XX
T10 SWITCH ASSEMBLY | Low Stock | 12.49 | |
| 14 | B67-TY03-042-XX
SWITCH WIRE | In Stock | 4.99 | |
| 15 | B67-TY03-060-XX
PCB WIRE-A SECTION | Not Available | ||
| 16 | B67-TY03-009-XX
LIGHT WIRE | In Stock | 5.99 | |
| 17 | B67-TY04-005-XB
WIRE ONLY WITHOUT PLUG | In Stock | 8.99 | |
| 18 | B15-TD02-024-JB
CARBON FILTER (PACK 2) | In Stock | 19.99 | |
| Drawing 2 | ||||
| 8-1 | B30-TD02-026-JB
S AIR DUCT LEFT VOLUTE | In Stock | 8.99 | |
| 8-2 | B61-TY02-090-XX
HOUSING S-MOTOR | Low Stock | 17.99 | |
| 8-3 | B30-TD02-016-JB
S DUCT WIND WHEEL | In Stock | 10.99 | |
| 8-4 | B30-TD02-028-JB
METAL SHEET | Not Available | ||
| 8-5 | B30-TD02-027-JB
S AIR DUCT RIGHT VOLUTE | In Stock | 8.99 | |
| 8-6 | B30-TG18-015-JB
MOTOR HOUSING NON-RETURN FLAPS (FULL ASS AA0000003104) | Low Stock | 11.99 | |
| Drawing 3 | ||||
| 9-1 | B30-TD08-020-JB
ELECTRIC CONTROL BOX | In Stock | 8.99 | |
| 9-2 | B64-TY08-249-XX1
CAPACITOR 1.5uF | In Stock | 4.99 | |
| 9-3 | B63-TY07-190-XX
PCB | Low Stock | 19.99 | |
| 9-4 | B30-TD08-021-JB
ELECTRIC CONTROL BOX | In Stock | 8.99 | |
Technical Specifications
Dimensions Unpacked
Energy Rating
Dimensions Packed
Lamp Power
Weight Unpacked
Motor Power
Weight Packed
Noise Level
Electrical Connection
Air Outlet Diameter
Airflow Output
Venting Method
Description
