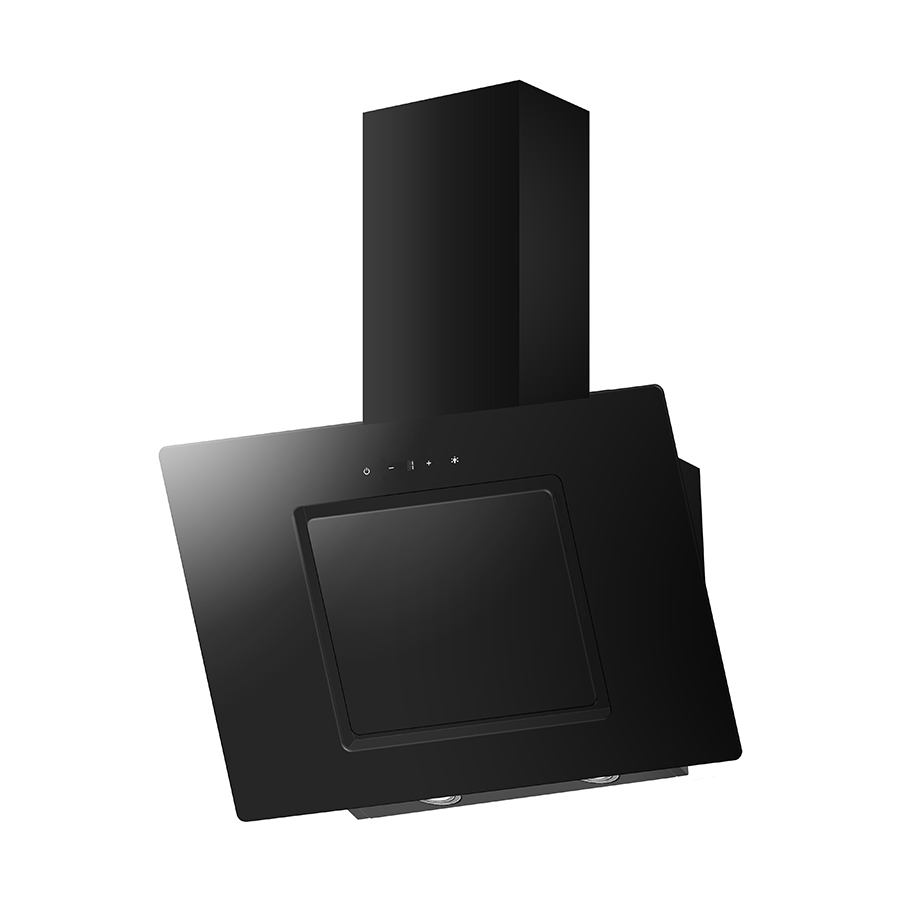

60CM BLACK ANGLED GLASS HOOD BLACK CHIMNEY

WRANG60BK

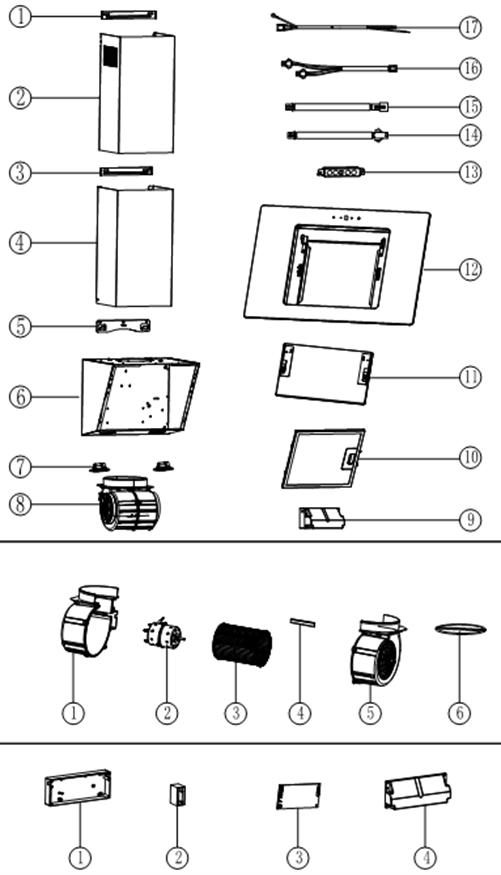

Drawing 1
Product Information Product Specification Documents Parts
Item# Part Details Availability £
Drawing 1
1 B23-TD08-006-PX
TD INNER CHIMNEY BRACKET		In Stock5.99
2 B21-TD08-008-TB2
UPPER CHIMNEY-BLACK		In Stock19.99
3 B23-TD08-005-PX
TD OUTER CHIMNEY BRACKET		In Stock5.99
4 B21-TD08-007-TB2
LOWER CHIMNEY-BLACK		In Stock19.99
5 B23-TG18-027-PX
BRACKET		Low Stock5.99
7 B62-TY01-016-BX
LED LAMP		Not Available
8 B76-TY02-090-BX
HOUSING S ASSEMBLY		Low Stock22.99
10 B35-TG01-018-XX
ALUMINIUM FILTER		Low Stock16.99
11 B33-TV26-001-XB
FLEXIBLE?OUTER? GLASS		Low Stock29.99
13 B63-TY07-380-XX
T10 SWITCH ASSEMBLY		Low Stock12.49
14 B67-TY03-042-XX
SWITCH WIRE		In Stock4.99
15 B67-TY03-060-XX
PCB WIRE-A SECTION		Not Available
16 B67-TY03-009-XX
LIGHT WIRE		In Stock5.99
17 B67-TY04-005-XB
WIRE ONLY WITHOUT PLUG		In Stock8.99
18 B15-TD02-024-JB
CARBON FILTER (PACK 2)		In Stock19.99
Drawing 2
8-1 B30-TD02-026-JB
S AIR DUCT LEFT VOLUTE		In Stock8.99
8-2 B61-TY02-090-XX
HOUSING S-MOTOR		Low Stock17.99
8-3 B30-TD02-016-JB
S DUCT WIND WHEEL		In Stock10.99
8-4 B30-TD02-028-JB
METAL SHEET		Not Available
8-5 B30-TD02-027-JB
S AIR DUCT RIGHT VOLUTE		In Stock8.99
8-6 B30-TG18-015-JB
MOTOR HOUSING NON-RETURN FLAPS (FULL ASS AA0000003104)		Low Stock11.99
Drawing 3
9-1 B30-TD08-020-JB
ELECTRIC CONTROL BOX		In Stock8.99
9-2 B64-TY08-249-XX1
CAPACITOR 1.5uF		In Stock4.99
9-3 B63-TY07-190-XX
PCB		Low Stock19.99
9-4 B30-TD08-021-JB
ELECTRIC CONTROL BOX		In Stock8.99
Technical Specifications

Dimensions Unpacked
Energy Rating
Dimensions Packed
Lamp Power
Weight Unpacked
Motor Power
Weight Packed
Noise Level
Electrical Connection
Air Outlet Diameter
Airflow Output
Venting Method
Description

USER HANDBOOK
