H825xW598xD340 Angled Glass Cooker Hood - Hob to Hood
WRAG60RF

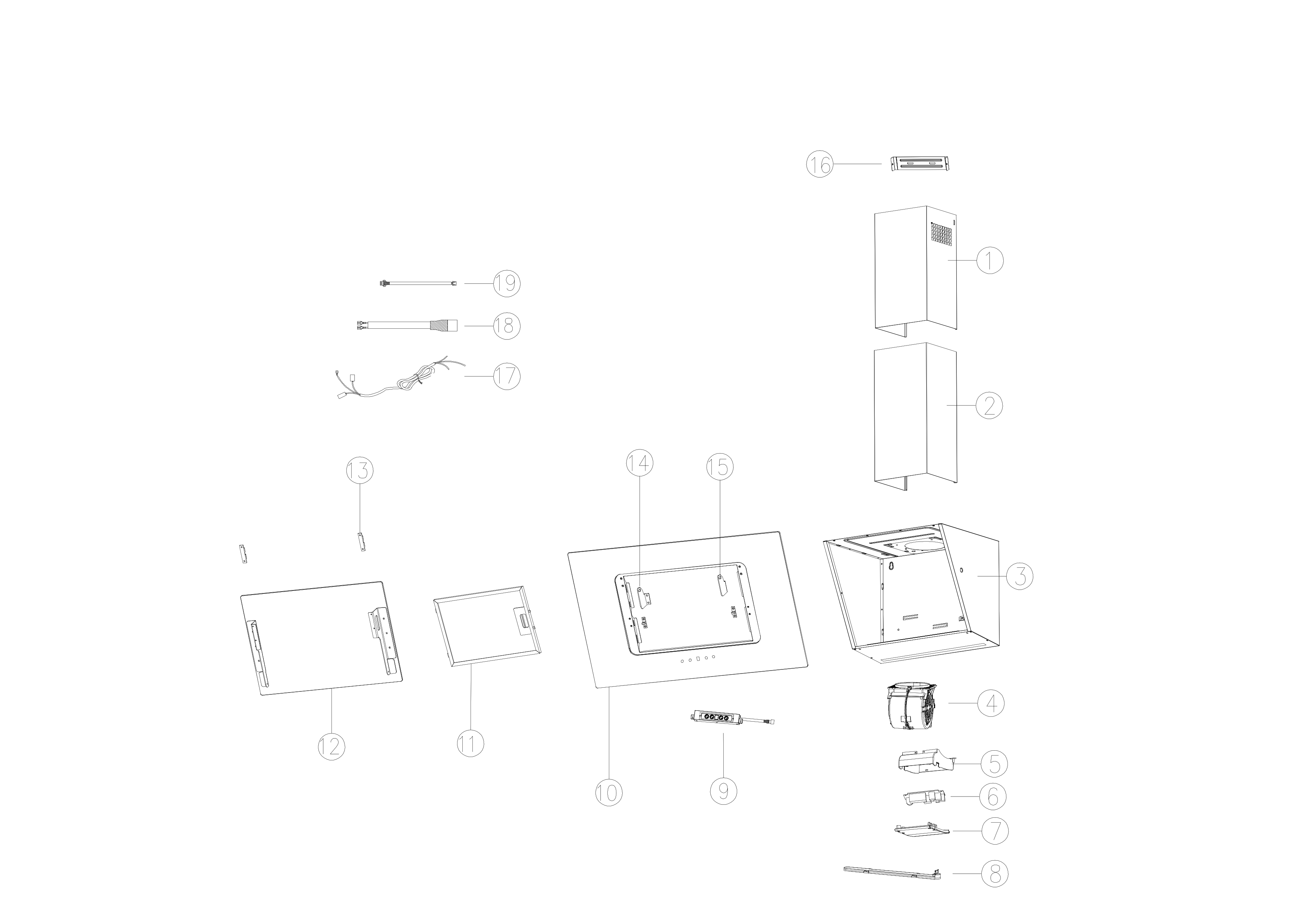

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.01.04.08.0017
UPPER TUBE | In Stock | 19.99 | |
| 2 | 1.01.04.08.0018
UNDER TUBE | In Stock | 19.99 | |
| 3 | 1.01.04.07.0032
WIND CHAMPER CASE | Not Available | ||
| 4 | 2.02.04.04.0026
TIDC MOTOR GROUP | In Stock | 60.99 | |
| 5 | 1.02.04.10.0012
POWER BOX | In Stock | 8.99 | |
| 6 | 1.05.04.01.0018
POWER PCB | On Order | 54.99 | |
| 7 | 1.02.04.10.0015
POWER BOX UPPER COVER | In Stock | 4.99 | |
| 8-1 | 1.04.04.07.0004
SSLED (WARM) | In Stock | 17.99 | |
| 8-2 | 1.04.04.07.0021
SSLED (COOL) | In Stock | 10.99 | |
| 9 | 2.02.04.07.0044
SWITCH ASSEMBLY | In Stock | 22.99 | |
| 10 | 2.02.04.03.0052
LARGE GLASS ASSEMBLY | Low Stock | 29.99 | |
| 11 | 1.06.04.01.0017
FILTER | In Stock | 19.99 | |
| 12 | 2.02.04.03.0030
PANEL AS-GLASS | In Stock | 33.99 | |
| 13 | 1.06.04.04.0017
PANEL BUCKLE | In Stock | 4.99 | |
| 14 | 1.01.04.02.0039
PANEL SUPPORT A | On Order | 4.99 | |
| 15 | 1.01.04.02.0040
PANEL SUPPORT B | On Order | 4.99 | |
| 16 | 1.01.04.02.0031
BRACKET OF TUBE | In Stock | 4.99 | |
| 17 | 1.04.04.01.0014
POWER CORD | In Stock | 7.99 | |
| 18 | 1.04.04.02.0006
LAMP WIRES | In Stock | 4.99 | |
| 19 | 1.04.04.08.0003
SWITCH CONNECTION LINE | In Stock | 3.50 | |
| 20 | 25112475
CARBON FILTER | In Stock | 19.99 | |
Product Functions
- Fan speeds: 5
- Digital display
- Touch control panel
- Filter replacement indicator light (recirc mode only)
Technical Specifications
Dimensions Unpacked
598x340x1055mm
598x340x1055mm
Energy Rating
A+
A+
Dimensions Packed
660x410x430mm
660x410x430mm
Lamp Power
3w
3w
Weight Unpacked
10kg
10kg
Motor Power
90w
90w
Weight Packed
12kg
12kg
Noise Level
64dB
64dB
Electrical Connection
Cable no Plug
Cable no Plug
Air Outlet Diameter
150mm
150mm
Airflow Output
600 m3/h
600 m3/h
Venting Method
Recirculation Mode or External Ventilation
Recirculation Mode or External Ventilation
Description
Hob to Hood connectivity - Our cooker hood is equipped with Hob to Hood connectivity and can link to any connected hob in the Viceroy range, the hob communicates with the cooker hood automatically turning on the cooker hood when the hob is in use and the extraction of the cooker hood will increase or decrease in line with the power lever of the hob

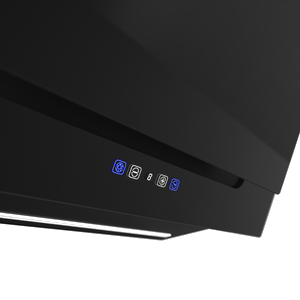

Move between fan speeds and light settings with the hoods touch control panel, for easy control over your kitchen’s atmosphere.
With our Energy friendly high-powered A+ rated brushless motor with 600 m3/hr extraction and 6 speeds (5+boost) allows for you to keep the air in your kitchen clean and clear.
